Help CenterGalvanized 15m 20m 30m High Mast Lighting Tower
Related Products
-
Electric Steel Monopole Tower,Telecommunication Steel Monopole Tower Quality ChoiceUS$ 0.99 - 0.99MOQ: 10 Kilograms -
20m High Mast Tubular Steel Monopole Communication TowerUS$ 0.99 - 0.99MOQ: 10 Kilograms
-
Power Transmission Line Steel Tower , Steel Tower, Steel Lattice TowerUS$ 0.99 - 0.99MOQ: 10 Kilograms
-
Overhead Transmission Line Made in ChinaUS$ 1 - 2MOQ: 10 Kilograms
-
Good Quality Galvanized Steel Tower FactoryUS$ 1 - 2MOQ: 10 Kilograms
Height |
From 20 m to 50 m for high mast lighting tower |
Suit for |
Airport ,seaport , plaza, stadium , square ,highway, street way etc |
Shape |
Conoid ,Multi-pyramidal , Columniform,polygonal or conical |
Material |
Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
Tolerance of dimension |
+- 2% of high mast lighting tower |
Power |
400 W- 5000 W |
Light panel |
material with hot dip galvanization steel frame ,stainless steel ,special aluminum plate |
Light Extension |
Up to 30 000 m2 |
Lamp &Luminaire |
Projector generally to be applied with safety grade IP65 Luminaire with high pressure sodium lamp of high mast pole , high mast lighting, high mast efficiency ,or metal halide lamp with high CRI |
Lifting system |
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Equipped electromagnetism brake and break –proof device, manual operation applied under power cut |
Electric appliance control device |
Electric appliance box to be the holder of the pole ,lifting operation could be 5 meter away from the pole through wire Time control and light control could be equipped to realize full-load lighting mode and part lighting mode |
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode . |
Design of pole |
Against earthquake of 8 grade |
Wind Speed |
160 Km/Hour |
Minimum yield strength |
355 mpa for high mast lighting tower |
Minimum ultimate tensile strength |
490 mpa for high mast lighting tower |
Max ultimate tensile strength |
620 mpa for high mast lighting tower |
Standard |
ISO 9001 for high mast lighting tower |
Length of per section |
Within 14m once forming without slip joint |
Welding |
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness |
1 mm to 30 mm |
Production Process |
Raw material test → Cutting →Molding or bending →Welding (longitudinal )→ Dimension verify →Flange welding →Hole drilling →Calibration → Deburr → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data for high mast lighting tower |
galvanized 15m 20m 30m high mast lighting tower:
1. high mast lighting tower
2. high mast pole
3. Q235 Q345 steel plate
4. Hot rolled steel
We Are Manufacturer of high quality high mast lighting tower
Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of high mast pole, including
street lighting pole, high mast lighting tower, floodlighting pole for large squares and other high mast pole since 1991.Our poles have been exported to more than 70 countries and areas.
high mast lighting tower type including single and double arms, round ,hexagonal and octagonal type, about the thickness and height we can do as specifc demands. We manufacture of high mast lighting tower, its height from 4M-12M. Our Capacity is : 10000 pcs per month for product. We have over 15 years experience of manufacturing high mast lighting tower.
We own the big bending machine with the complete sets for high mast lighting tower ,You can find our high mast lighting tower all over the China, and they are also installed in north American ,south American Africa ,Europe and etc.Please check for detailed high mast lighting tower information in other sections of this website / .

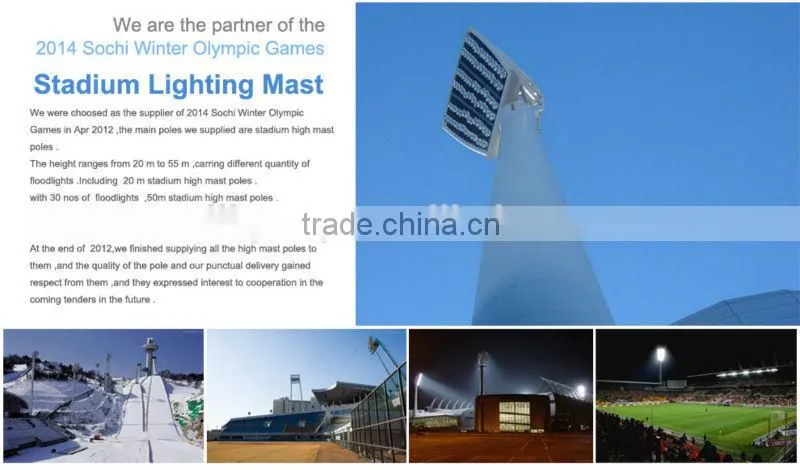

Winter Olympic Games:
All the high mast pole of 2014 Sochi Winter Olympic Games are supplied by us.
galvanized high mast lighting tower:

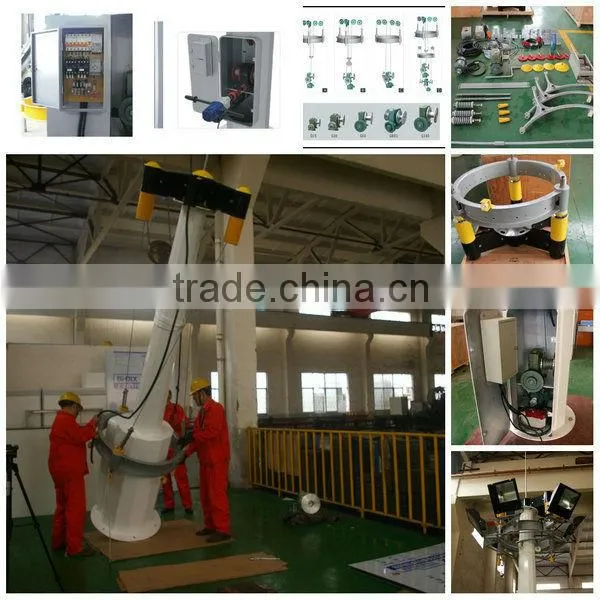

lifting system:
Our lifting system of high mast lighting tower is the most advanced in China
1.Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly.
Furthermore, all steel cables are not exposed and more effectively protected.
2.Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position.
The process of latching on and off is stable and without vibration.
3.The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.
4.The leveling device for luminary support bracket is easy to operate and convenient to adjust level.
5.Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.

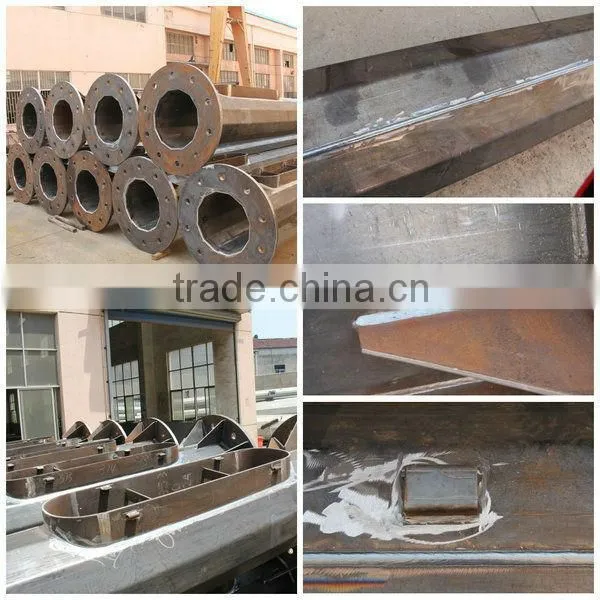

Production details:
Before shipment ,we have a final inspector manager to check the high mast products on every detail
and component to make sure all high mast lighting tower meet the drawing.

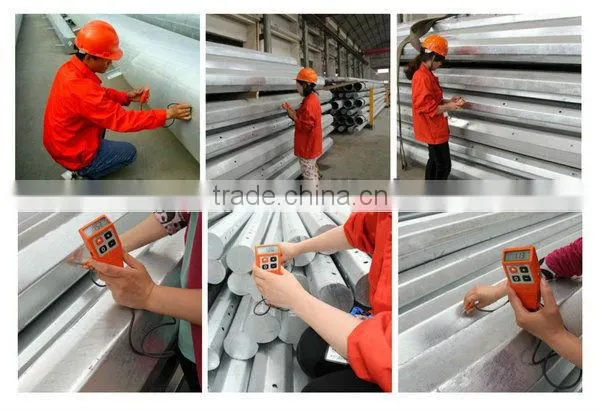

Galvanization Test:
In every production procedure of high mast lighting tower. we have our isnpector around to check whether high mast lighting tower was done accrodingly with the drawing .

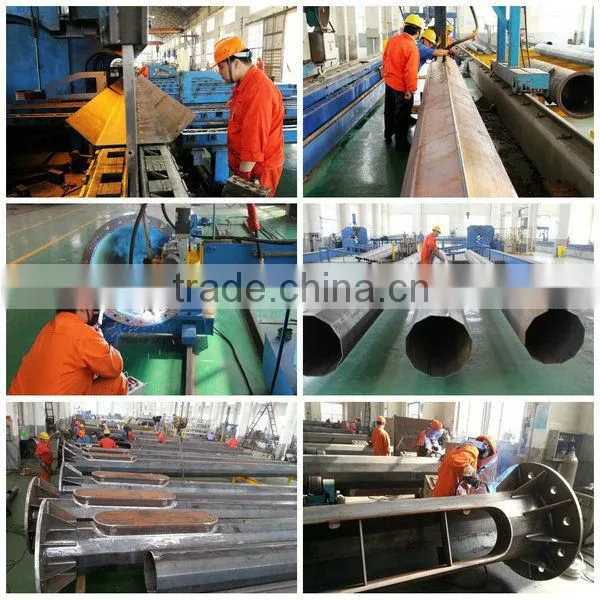

Production Process:
As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export high mast lighting tower and we can assure the product we offerd is of sound quality which made from qualified material with our professional workers and advance equipment .

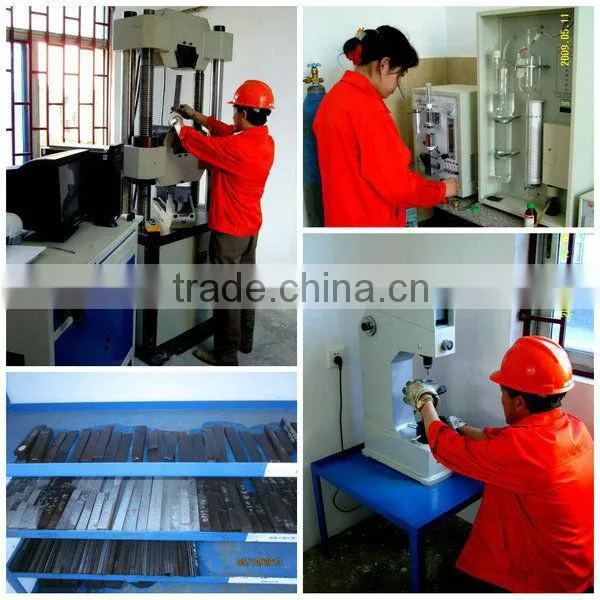

Material Test:
1.All of our material of high mast lighting tower are purchased from fanous mill factory to assure the quality of high mast lighting tower.
2.A mill certificate issused by the mill factory with stamp and signaturer must be provided beofere unload the material in
our factory ,otherwise we have our reason to refuse the material for high mast lighting tower .
3.Before put into high mast production ,all the material must pass the chemical and physical analysis to make sure that high mast lighting tower have meet the requested strength and component of high mast lighting tower.
Packages:
Our high mast lighting tower as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
Trade terms:
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for high mast lighting tower
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Customized for high mast lighting tower
5. Delivery: for high mast lighting tower 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
6. Parts Design Service Period: 20 years

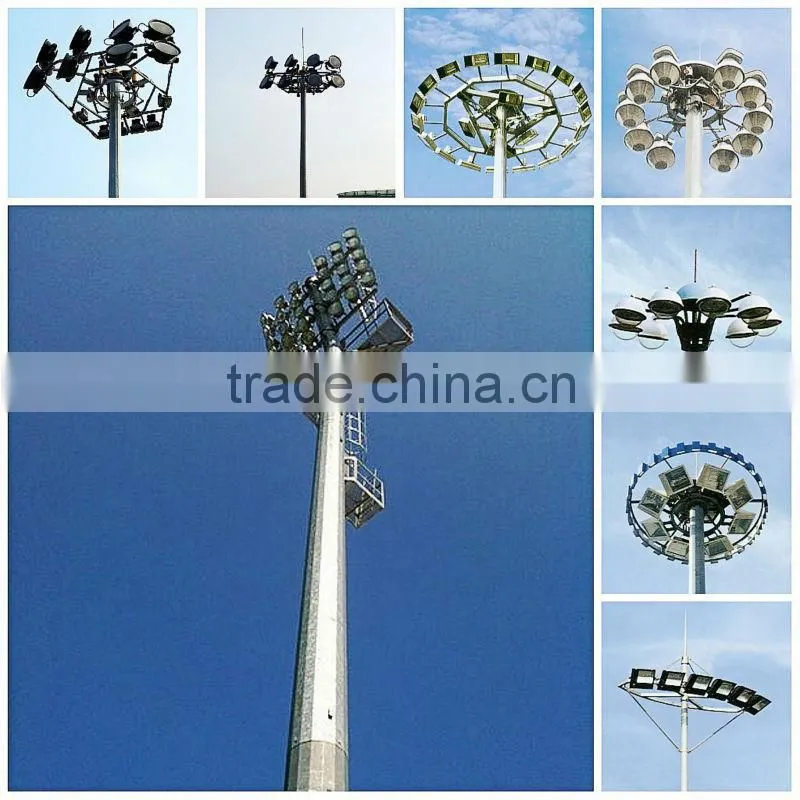

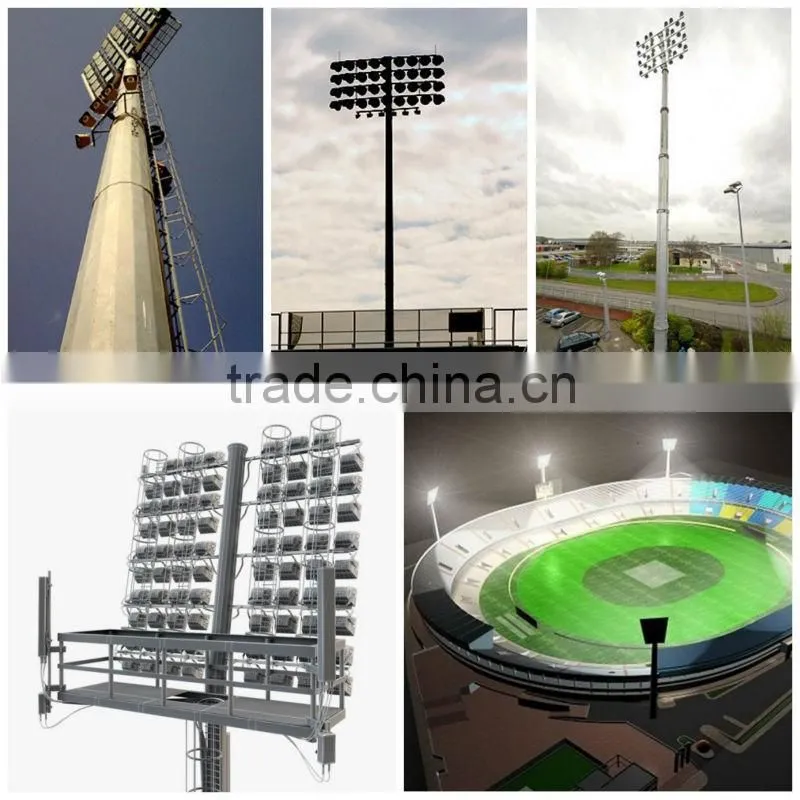

Application:
Highway high mast lighting tower Park high mast lighting tower
Main roads high mast lighting tower Dock high mast lighting tower
Secondary roads high mast lighting tower Stadiums high mast lighting tower
Storage-yard high mast lighting tower Overpass high mast lighting tower
Industrial-plant high mast lighting tower Toll-station high mast lighting tower
1.Easy work: more than 23 years in high mast lighting tower field, 10 years in high mast field. quickly understand your meaning and let you get your result. |
2.Lowest MOQ: for high mast lighting tower lowest quantity from 1Ton depends on different style . |
3.OEM Accepted: We can produce any pole of your design for high mast lighting tower. |
4.Good Service: We treat clients as friends. |
5.Good Quality: We have very strict quality control system for high mast lighting tower. Good reputation in the high mast pole market. |
6.Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ). |
7.Quickly delivery: For high mast lighting tower, 300 pieces/day. |
Our high mast, street lighting pole,street lighting poles,street high mast, high mast pole, high mast poles, high mast lighting, high mast, high mast lamp pole, high mast lamp poles, high mast lighting pole, high mast lighting poles, high mast lighting steel pole, high mast lighting steel poles, flag mast stainless steel pole, high mast pole price, flag mast stainless steel poles, steel pole, steel poles , hot-dip-galvanized steel poles ,lamp poles ,road poles, street lighting poles, street lamp poles,
solar street lamps steel poles ,high mast lamp poles, road lamp poles, the steel street lamp poles, hot-dip-galvanized
steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower, round & square street lighting steel poles with double arm or single arm . stainless steel poles, aluminum street light poles, traffic lighting steel poles, base plate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as
cut plate, bending ,forming, automatic welding, drill holes ,quality check before galvanized, hot dip galvanized or powder coating.
