Specifications
very fast running modulating valve1.stepping motor actuator
2.1/2''-2''
3. 24VDC/AC
4.on/off or 3-point / 0-10v/4-20ma
New products
2-Way & 3-Wway fast running electric ball valve from DN15 to DN50
Our advantages:
1.Stepper motor
2.Fast running, 8s as a minimun, the running time is very exact
3. With manual operate handle
4.OEM, Accpet large order
5.Guarantee period 18month

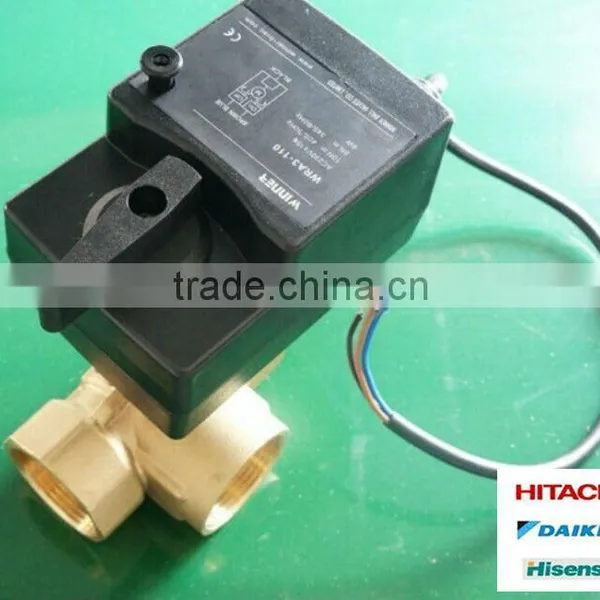

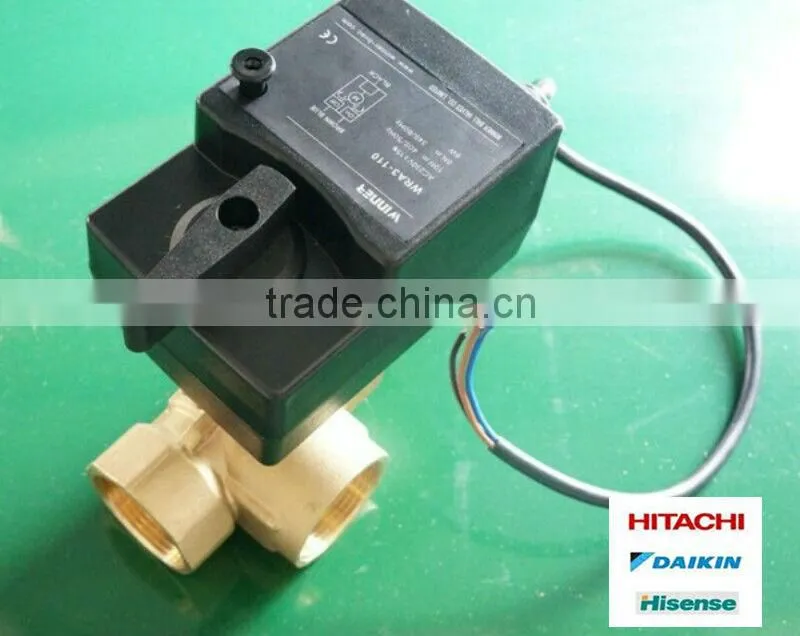

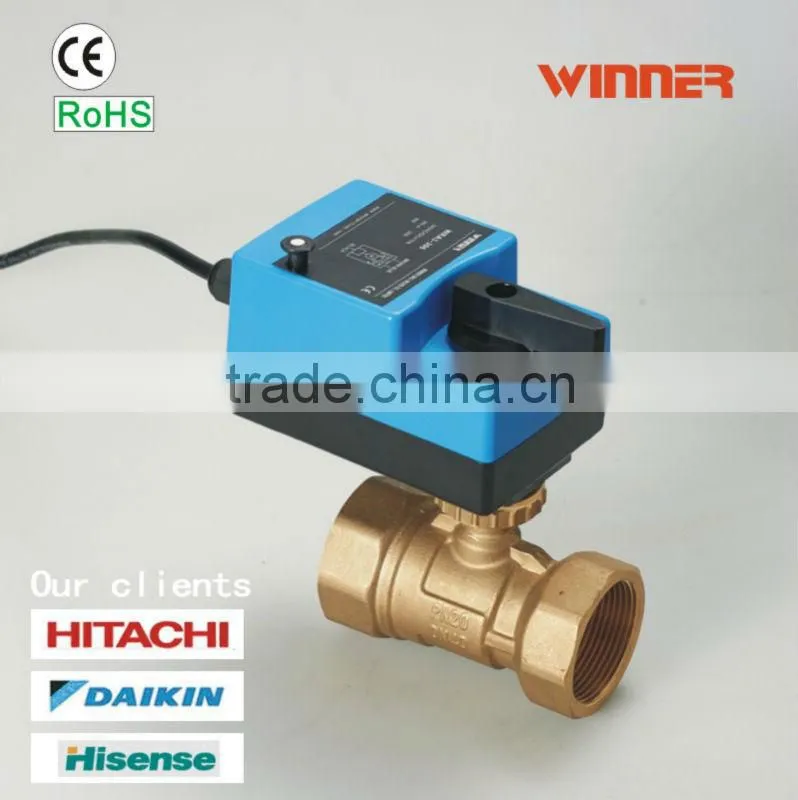

Potos:
Details

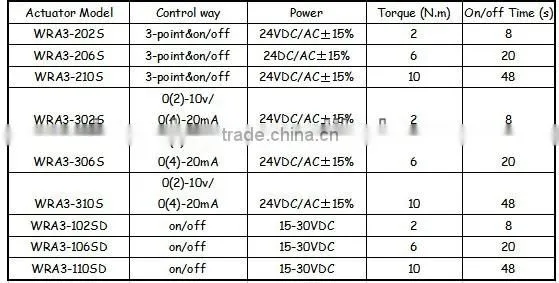

ACTUATOR:
Rotating shaft: POM & Stainless stell(Optional)
Power supply: 24VAC/DC, 15-28 VDC
On-Off time: 2N.m--8S; 6N.m--20S; 10 N.m--48S (On/off time can be set according to customer needs, set up, the value will be fixed.)
Angle of rotation: 90°
Manual handle available
Protect rank: IP65 Shell: PC
Valve body:
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH S
ize: 1/2’’ -2’’
Valve type:2-way & 3-way
Flow characteristic: equal percentage, on/off
Function (Proportional)
The actuator is controlled by a modulating on/off & 3-point, and proportional control signal, using high transmitting ratio gear drive to fix and lock.
Transaction details:
1. Payment terms: T/T ( China costruction bank) & Western Union
2.Delivery date: Usual within 3 working days after get payment
Dear friend, do you have more question or want to get more information? If yes, please send me a inquiry, then i wil give all you want. Thanks
