Help CenterMotorized 3-way 2-way Ball Valve Dn32,dn40,dn50
Related Products
-
24vac/dc Electronic Mixing Ball Valve,pipe Ball ValveUS$ 70 - 200MOQ: 1 Set -
Fast Actuated dc Electric MotorUS$ 70 - 120MOQ: 1 Piece
-
Very Fast Actuated DC Motorized Water ValveUS$ 70 - 120MOQ: 1 Piece
-
Water Pressure Relief ValveUS$ 37 - 120MOQ: 1 Piece
-
dc On/off ValveUS$ 37 - 120MOQ: 1 Piece
Specifications
1.Voltage24V:AC/DC2.Accept small qty order.
3.We are factory price.
4.Zero leakage
Description
1.Fast running control ball valve consists of WRA3-...S series stepping motor actuator(stepping motor is made in Japan) and W8BV... series ball valve.
2.Equal percentage flow characteristic guarantees the valve performances of stability. Stepping motor control ball valve. The characteristic of it is accurate,fast and high efficiency,strong anti-interference. It is a typical digital control mode.
3.It has obvious advantages in such industrial equipments,which requires fast and accurate control. And it is widelyused in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flowregulation and on/off control.

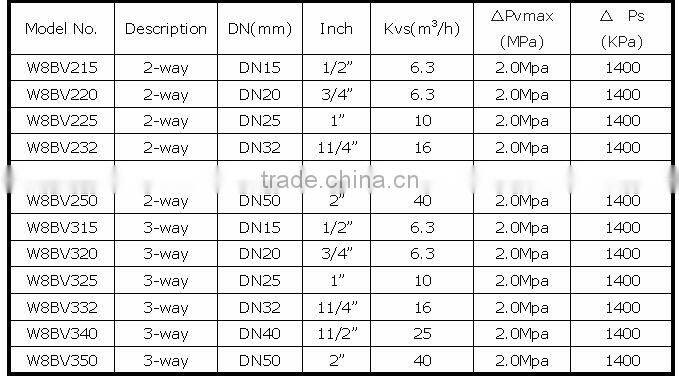

Ball valve:
Technical data
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH Size: 1/2’’ -2’’
Valve type: 2-way and 3-way Flow characteristic: equal percentage, on/off

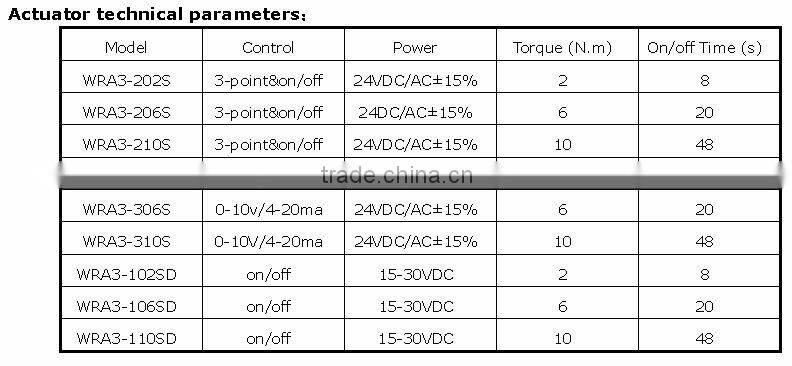

Actuator:
Shell: PC Rotating shaft: POM & Stainless stell(Optional)
Power supply: 24VAC/DC, 15-28 VDC
On-Off time: 2N.m--8S; 6N.m--20S; 10 N.m--48S (On/off time can be set according to customer needs, set up, the value will be fixed.)
Angle of rotation: 90° Manual handle available Protect rank: IP65
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless steel brass stem: EPDM
The actuator is controlled by a modulating on/off & 3-piont, and proportional control signal, using high transmitting ratio gear drive to fix and lock.
Function (Proportional)
WRA3-Flow characteristic
Input 0-10VDC control way
Flow characteristic:equal percentage
Flow range:10%-100%
Product photo:

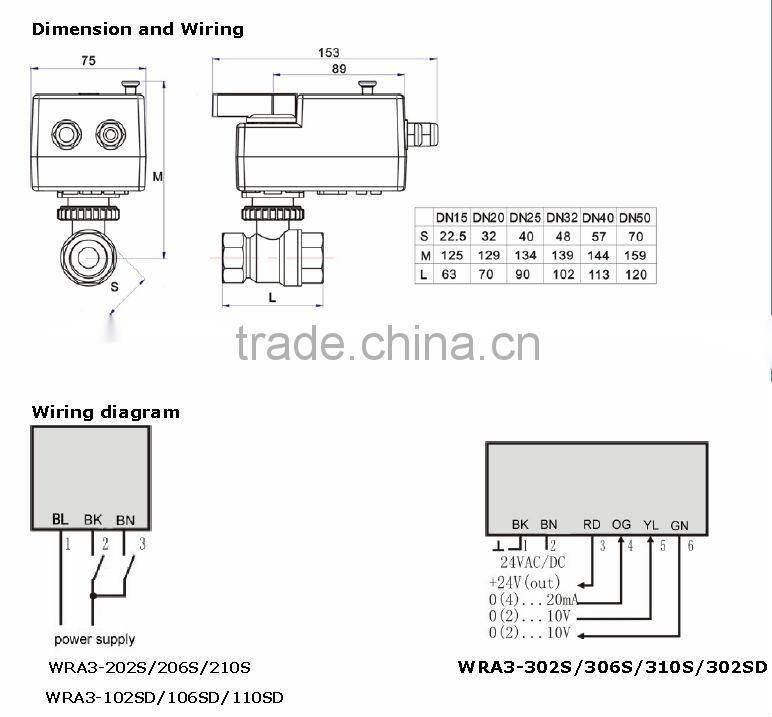

WRA3-202s/206s/210S/WRA3-102SD/106SD/110SD
Black wire is power on valve open
Brown wire is power on valve close
Blue wire is com
WRA3-302s/306s/310S
Black wire and brown wire are the power wire.
Yellow wire accept 0-10V control signal to control the valve’s open angle
Guarantee period
Guarantee period:18 months Service time:50000 times
We love hearing from you.If you are interested in our products,please feel free to contact me anytime.Especially you can send me a E-mail,thank you!
