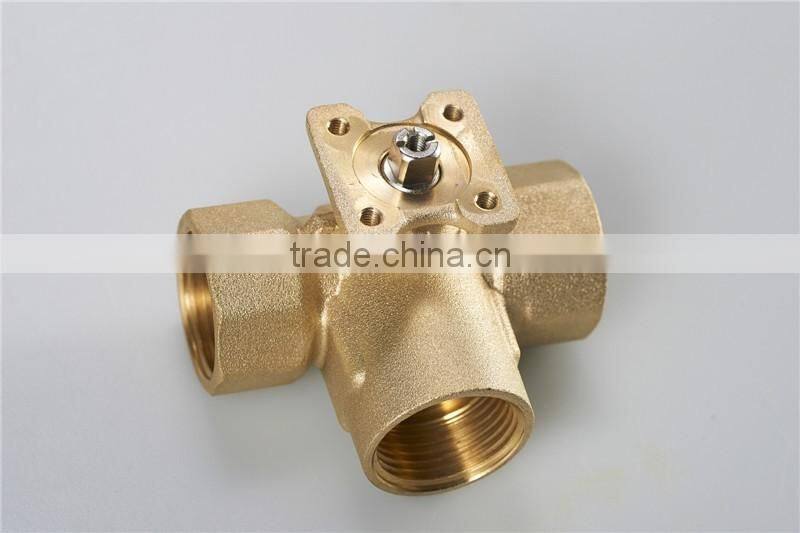

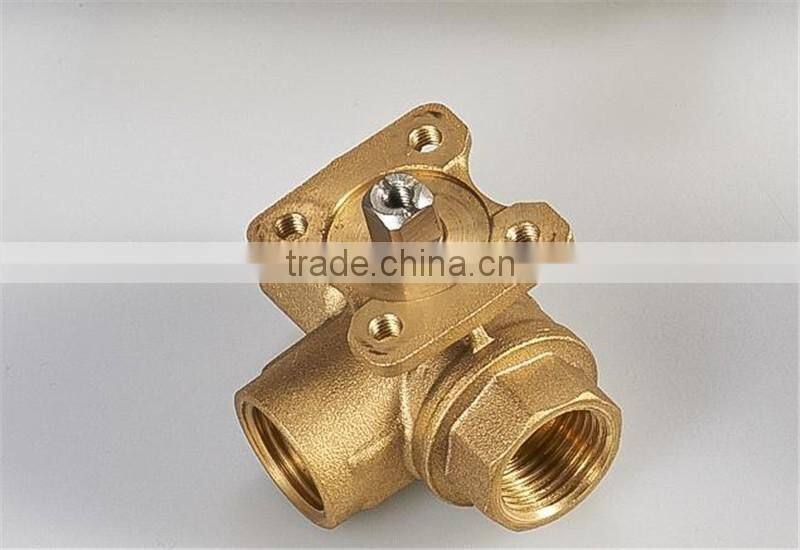

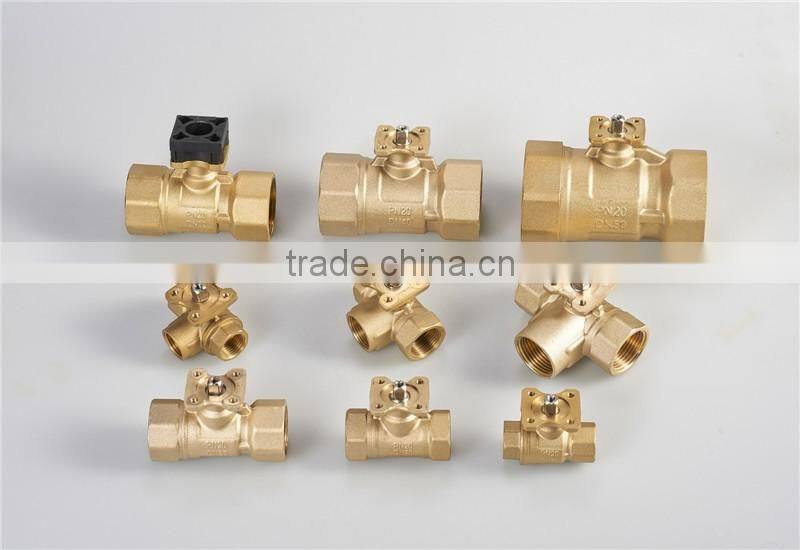

Promotion Price BSP/NPT Threaded G1/2" to G2" DN15 Brass Ball Valve
Product Name |
Promotion Price BSP/NPT Threaded G1/2" to G2" DN15 Brass Ball Valve |
| Material | Forged Brass |
| Ball: | PTFE+EPDM with Double O-ring |
| Stem: | EPDM with double O-ring |
| Type: | 2 way, DN15/DN20/DN25/DN32/DN40/DN50 |
| Pressure grade | PN20 |
Shell color |
Orange,Yellow,Blue,Black |
OEM & ODM |
Accept |
| Medium temperature | 2~90° -10~120° |
| Thread Type | BSP NPT |
Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and WCBS… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Application
HVAC system,
heating system,
Water treatment system,
Industrial equipments
Brass ball valve Material
| Part | Material |
| Valve Body | Hpb59-1 |
| Seal | Ball: PTFE+EPDM with double O-ring |
| Stem: PTFE+EPDM with double O-ring | |
| Actuator Shell | PC+GF10 |
| Actuator Base | PC+GF10 |
| Actuator Revolving Shaft | POM |
brass ball valve Body
| Model No. | DN (mm) | Inches | Kvs (m3/h) | Pvmax |
Ps |
| WCBS215 | 15 | 1/2" | 6.3 | 2.5MPa | 1400KPa |
| WCBS220 | 20 | 3/4" | 6.3 | ||
| WCBS225 | 25 | 1" | 10 | ||
| WCBS232 | 32 | 1-1/4" | 16 | ||
| WCBS240 | 40 | 1-1/2" | 25 | ||
| WCBS250 | 50 | 2" | 43 | ||
| WCBS315 | 15 | 1/2" | 6.3 | ||
| WCBS320 | 20 | 3/4" | 6.3 | ||
| WCBS325 | 25 | 1" | 10 | ||
| WCBS332 | 32 | 1-1/4" | 16 | ||
| WCBS340 | 40 | 1-1/2" | 25 | ||
| WCBS350 | 50 | 2" | 43 |
Winner Motorized Actuator Valves
More Products For You To Choose
Certificate of Products
Production line of Product
Exhibition and Customer
Our Services
Before service:
- 1.We have full stock and can deliver within short time.
- 2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
- 3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
- 4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
- 1. We will count cheapest shipping cost and make invoice to you at once.
- 2. Check quality again, then send out to you at 1-2 working day after your payment
- 3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service:
- 1.We are very glad that customers give us some suggestion for price and products.
- 2.If you have any question,please contact us freely by E-mail or Telephone.
Our Company View
FAQ
Q. what is your payment term?
- A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: How do you control the products’ quality?
- A: 1. High quality mold.
- 2. Raw materials control.
- 3. Production process quality control.
- 4. Final inspection.
- 5. Water testing (no leaking).
Q:Could I use my own logo or design on goods?
- A:Yes.Customized logo and design on production are available.
Q: Can I get samples from your factory?
- A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
- A: We will responsible for all the quality problems.
