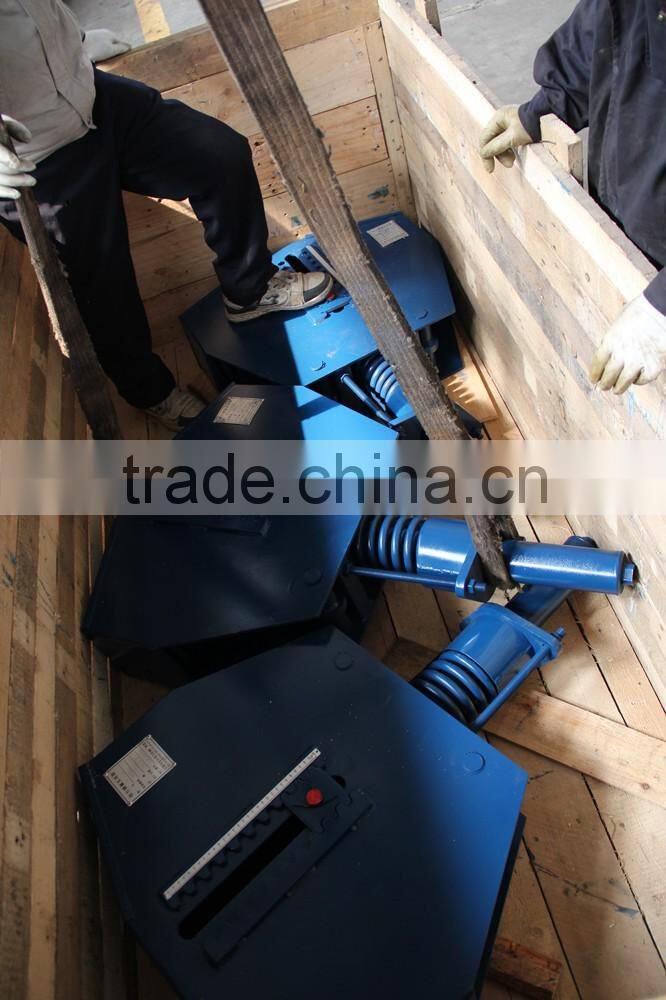

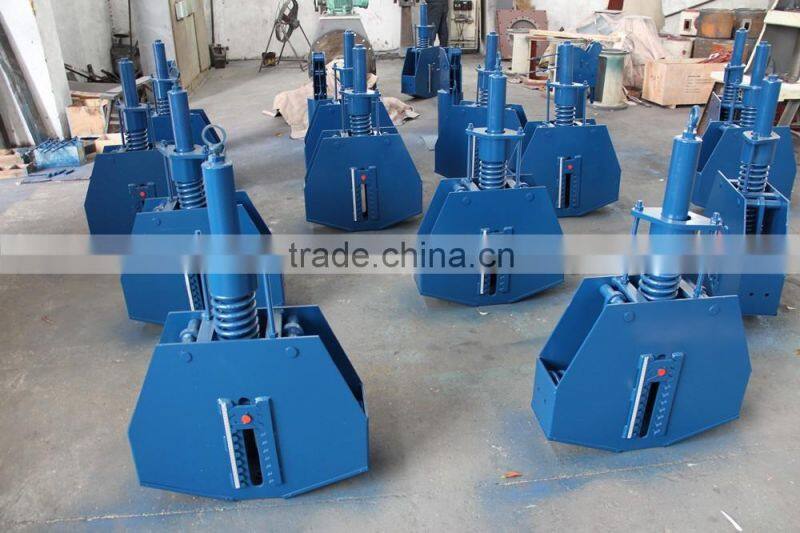

Marine pipe hanger Constant Load Type Hanger
Constant hangers and constant supports are used for piping and related components where higher levels of
vertical travel occur. Their job is to transfer the working load over the whole travel area while maintaining
constancy, without any considerable deviations. The functional precision of the constant hanger is decisive forthe favorable long term behaviour ofthe components concerned.
A distinguishing feature of Keheng constant hangers and constant supports is their unique operating concept. It puts into effect the principle of the parallelogram of forces, which provides the following fundamental
advantages:
- absolute constancy based on a principle
- load-symmetrical mechanics and structural shape
- no leverage deflection or momentum effects
- directly readable load and travel scales
- load adjustment of 40 - 100 % of nominal load
- special pre-relaxed springs
- 10,000 load cycles at constant accuracy
- approval by independent authorities
Load range 500-400000 n, displacement range 50-500 mm,temperature range - 20 °C ~ + 200 °C.
Type: 58H,58V,80V, ZH, TH, VS, TD, BSH
Material: carbon steel,stainless steel,alloy steel and special material for the special parts.
Size:according to the drawing or requirement
58H, 58 V and 80V Constant Force Spring Hangers | ||
1. Applicable Range | ||
The 58H, 58 V and 80V constant force spring hangers (US ITT Technology) are applicable to 38mm (1 1/2") to 508mm (20") displacement, 12.7mm (1/2") interval and 12daN to 39,690daN loading capacity. | ||
2. Classification and Model | ||
Classification | Model Code | Installation Form |
Horizontal Type Constant Force Spring Hangers | 58H | A Type, B Type, C Type, E Type, G Type |
Vertical Constant Force Spring Hangers | 58V | A Type, B Type, C Type, D Type, E Type |
Support Type Constant Force Spring Hangers | 80V | F Type |
A Type-Duplex Pull Rod Connection | ||
B Type-Single Hanger Plate Connection | ||
C Type-Double Hanger Plate Connection | ||
D Type-Top Surface Connection | ||
E Type-Pedestal Connection | ||
G Type-Parallel Connection of Constant Force Spring Hangers | ||
| |
| Occupying the market with product quality | Gaining the client with corporate reputation |
| JiangSu KeHeng Petrochemical & Electrical Machinery Co., Ltd. formerly JiangYin Petrochemical & Electrical Machinery Factory, founded in 1989, with the area of 26,500 square meters, total construction 15,500 square meters. Located in Jiangyin city, being in Yangtze River Delta economic zone, enjoy convenient transportation access. | |
| |
