GPS 3G 4ch MDVR Vehicle Mobile DVR With Free CMS Software CE Certificate
GPS 3G 4ch MDVR Vehicle mobile DVR with free CMS software CE certificate
HB-SV03A is a high-performance basis video equipment with SD card storage which specially designed for vehicle video surveillance. It uses a high-speed processor and embedded operating systems, and the most advanced H.264 video compression / decompression technology. It has a rich expansion interface to realize Satellite positioning, network transmission and other functions. It’s with mini size, 360-degree flexible installation and easy maintenance.
Application
m Vehicle Monitoring fields
m Passenger Coach
m School Bus
m Freight
m Logistics
Features
Audio/video recording & local storage |
Image capturing local storage |
Data export via USB |
Local video preview and playback |
Video playback on PC-side |
Storage medium formatting |
Parameter inquiry and setting |
Device software update |
Technical Specifications
Operation system |
Linux |
Controlling mode |
infrared remote control |
Power Input |
DC9~36V |
Power Output |
1A@12V,1A@5V |
Power consumption |
< 8W (No accessories) |
Working Temp |
-30℃~+70℃ |
Recording mode |
Sound and video simultaneously recording |
Audio Output |
Single-channel audio output |
Audio Compression |
G711A |
Image Resolution |
PAL/NTSC |
Video Compression |
H.264/ADPCM |
Image resolution |
CIF/HD1/D1for option |
Video Display |
1 picture, 4 pictures, 9 Split display |
Dimension |
165×135×47.5mm |
Weight |
0.7kg |
Video Record mode |
Power-on/Manual/Fixed time/Alarm event |
Playback Channel |
support local 1 channel , PC 1 channel and 4 channel playback |
Browse Mode |
Time, Channel and Events |
Storage |
Dual card (each support 64GB) |
Interfaces |
6 switch inputs, 1 speed testing input, 1 alarm input |
|
Video & Adio Inputs: 4 channels |
|
1 RJ45, 3 RS232, 1 RS485, 2 CAN port, 1 USB port |
|
2 Analog inputs, 2 outputs, |
|
1 speak out, 1 Mic in, |
|
2 SD card slots, 1 CVBS video port, 1 SIM card slot |
|
1 RS232 for tachograph update and 1 RS232 for DVR update |

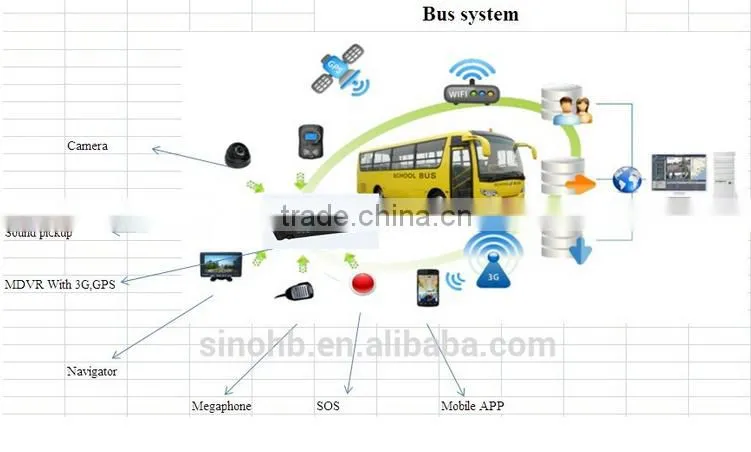

Accessories
1. Camera 2. Navigator 3. LED Screen 4. LCD display screen 5. Sound Pickup 6. Mega Phone 7.SOS 8. Mobile APP
Package
m User-friendly Design
m Netural Packaging
m Delivery time: 5~7days (DHL,UPS,EMS,FEDEX,ARAMEX etc.

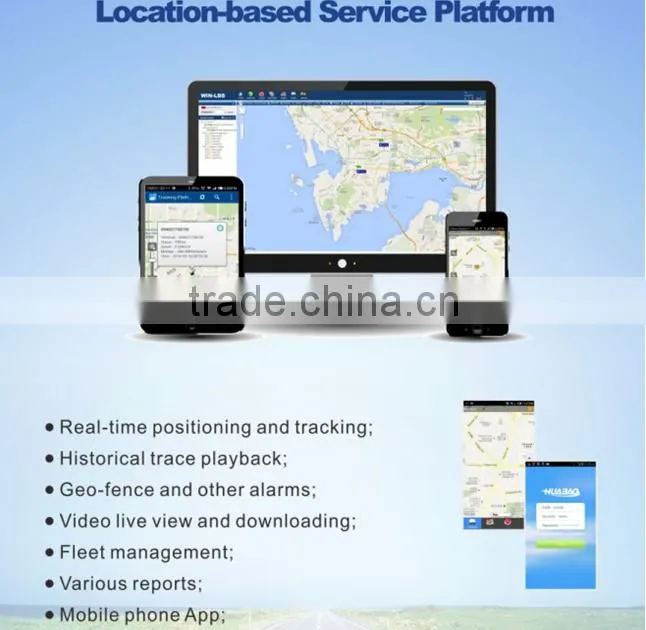

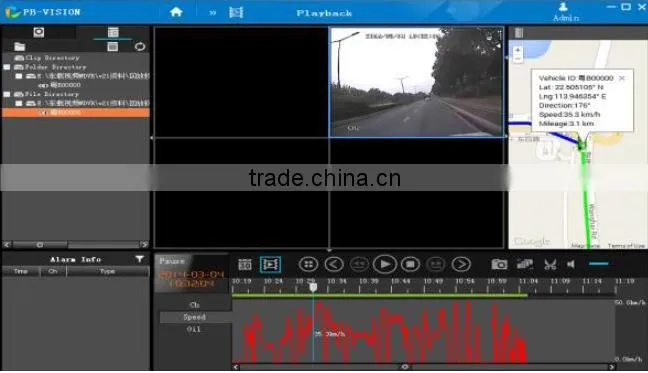

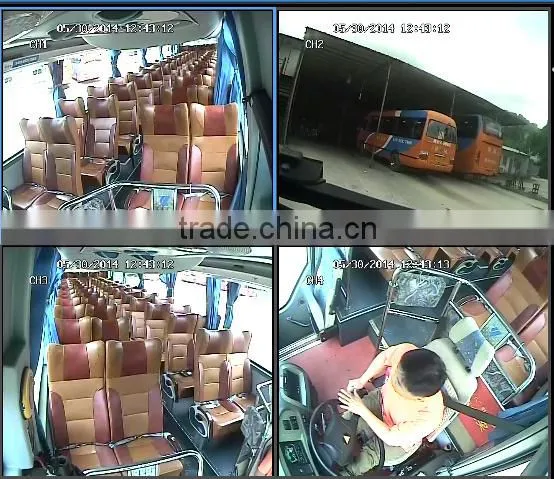

Online Video Tracking

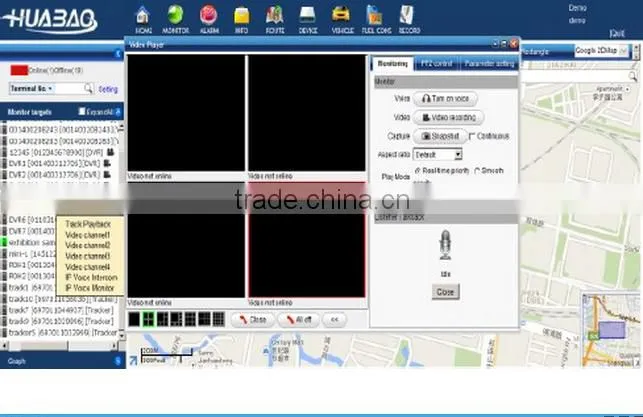

Online Video Page:

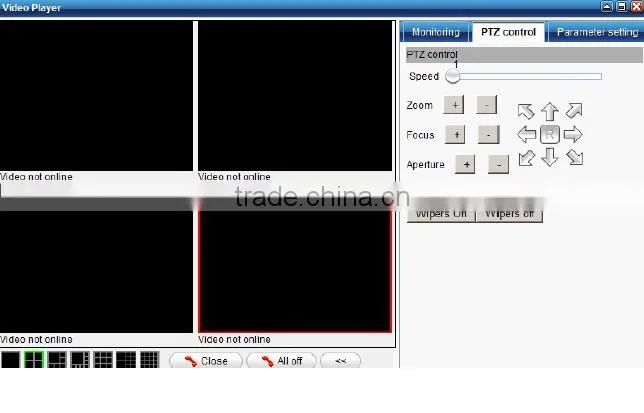

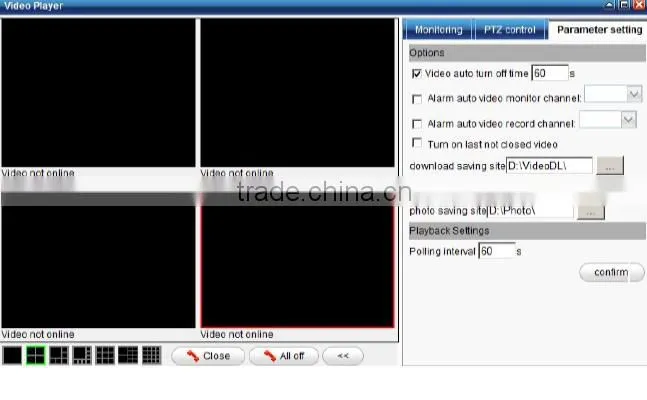

Video Player
Warranty
m 1 year warranty
m Free technical support and engineers can speak English very well
m Our own platform .If you want to use your own platform, we also will help you about this.
m Customized service.We have a strong R&D department with 120 engineer , So we can do customized service for you.

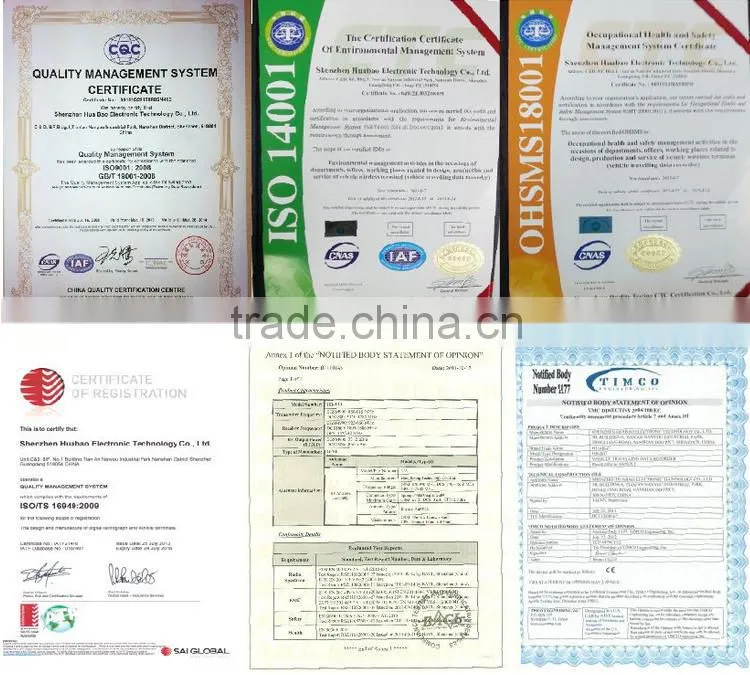

Certification
Our Company
Shenzhen Huabao Electronic Technology Co.Ltd is a professional manufacturer of GPS Vehicle/Personal tracker/Digital Tachograph/Mobile DVR/OBD II Tracker etc..Established in 2004, with a fast growing developing speed , at present,Huabao has bicome an industry leader in proving custom services for GPS/GPRS based telematics & fleet management in demestic markets, now globally.
Shenzhen Huabao Electronic Technology Co,Ltd.
Make your Traveling Safe and Convenient !
