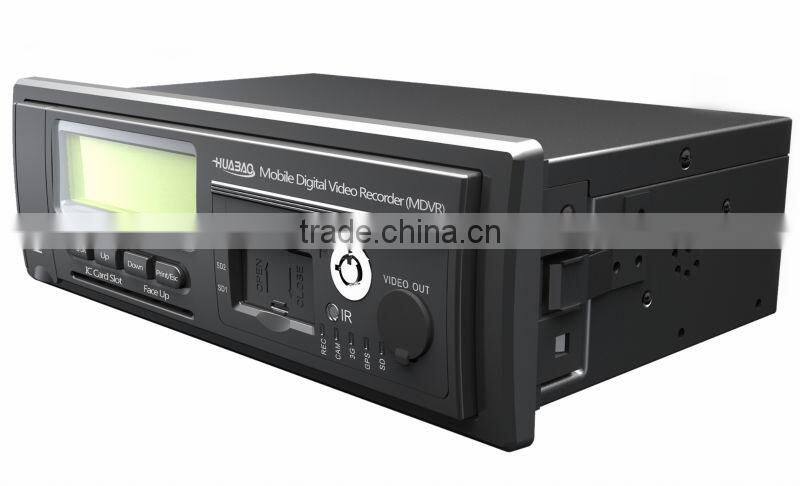

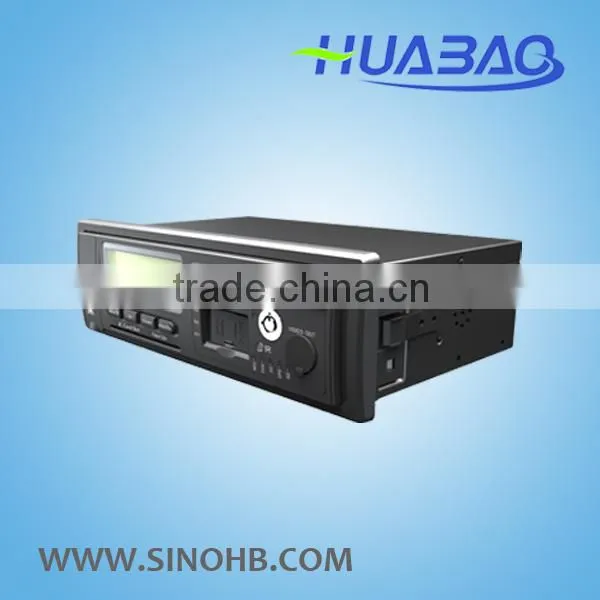

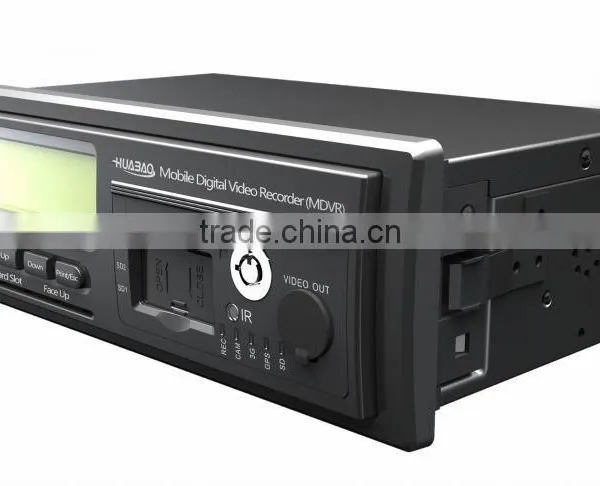

Bus Mobile DVR With 4/8 Channel Cameras and GPS Tracker
bus mobile DVR with 4 channel cameras and GPS tracker
Applications:
• Bus 4ch car dvr black box suppor dual sd card storage
• School Bus Solution 4ch dual sd card 3g wifi gprs gps mobile dvr
• Coach
• Driver behaviour monitoring
• Fleet management

Features:
•1 standard DIN size
• H.264 and AVI video format
• 4/8 CH video input, 2CH video output
• Dual SD card support (max. 64G each)
• 3G/WIFI data communication
• Driver ID recognition and recording
• Driver behavior analysis
• Car black box function
• CAN BUS support
Specifications:
| Wireless Communication | 3G module | WCDMA / EVDO | |||||
| WIFI module | IEEE802.11 a/b/g/n | ||||||
| Satellite Positioning | Sensitivity | -159dBm | |||||
| Accuracy | Less than 10 meters | ||||||
| Channels | 20 channels | ||||||
| Frequency | L1, 1575.42 MHz | ||||||
| Black Box Parameters | Speed range | 0~255 km/h | |||||
| Speed accuracy | Less than 0.5km/h | ||||||
| Recording capacity | 360 hours traveling data recording | ||||||
| Validation | Data is valid more than 10 years after power-off | ||||||
| Ports | I/O port | 8 I/O input, 2 Analog inpurt, 2 I/O output | |||||
| Serial interface | 4 RS232, 1 RS485 | ||||||
| Video Function | Video & Audio input | 4/8 channels | |||||
| Storage | Dual SD card (max. 64G for each card) | ||||||
| Video mode | PAL/NTSC | ||||||
| Video compression | H.264 | ||||||
| Audio compression | G.711 | ||||||
| Working Parameters | Working temperature | -30°C ~ 70°C | |||||
| Storage temperature | -40°C ~ 85°C | ||||||
| Working voltage | 9V~36V | ||||||
| Power consumption | Less than 10W | ||||||
| Dimension | 185*115*60mm | ||||||

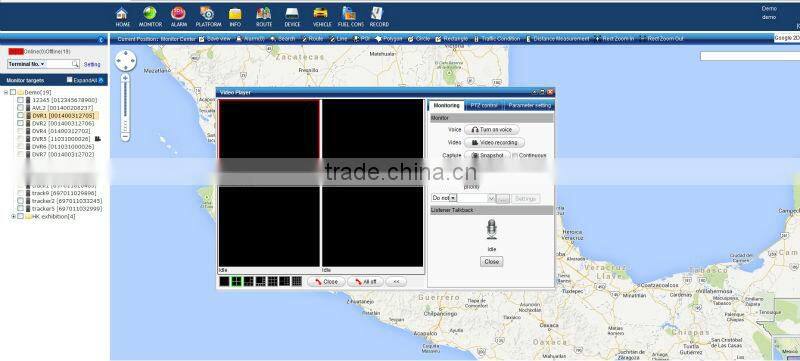

Web-based Platform:

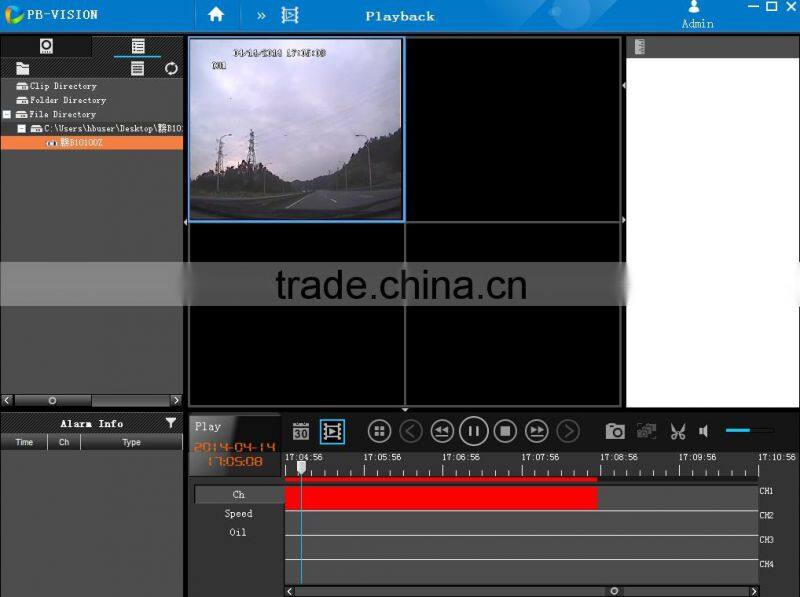

Playback software:
Special Service:
• Reply within 24 hours
• 12 months warranty
• One-to-one professional technical support
Certificates:
Company Pictures:
