remote fuel monitoring system, gps motor tracker , gps track real time, gps tracking server software
gps tracking server software
Functions | ||
| NO. | Waterproof | IP65 Waterproof. |
| 1 | Realtime monitor | Devices sent realtime GPS positioning information to the monitoring center via GPRS. Data upload frequency can be set, which support at least 3 -3600 seconds interval. Support dormancy and non-dormancy upload interval is set apart. |
| 2 | GPS positioning | Real-time location via GPS module, GPS positioning accuracy should be better than 15 meters. |
| 3 | LBS positioning | The device supports the base station location, using the base station location when no GPS positioning. |
| 4 | Optional Glonass positioning | The device supports Glonass positioning, glonass and GPS dual-mode positioning, positioning mode can be adjusted by the command. |
| 5 | Optional Bei Dou positioning | The device supports Beidou positioning, Beidou and GPS dual-mode positioning, positioning mode can be adjusted by the command. |
| 6 | G-sensor | The device supports accelerometer, and support the acceleration sensor to achieve some applications. |
| 7 | ACC detection | ACC detection is realized via the vehicle's ACC cable to achieve the status of driving or parking. |
| 8 | Sleeping mode | The device supports the sleep function. |
| 9 | Emergency alarm | When you press the emergency alarm button, the alarm information will be sent to the platform. |
| 10 | Over-speed alarm | The device supports over-speed alarm, speed alarm value can be set through the platform, SMS and PC. |
| 11 | Collision alarm | The device supports collision alarm, which is realized via acceleration sensor. |
| 12 | Rollover alarm | The device supports rollover warning,which is realized via acceleration sensor. |
| 13 | Geo-fence | The device supports Geo-fence, you can draw circle, rectangle, polygon area. When enter into or exit the area, the alarm information will be sent to platform. |
| 14 | Power off alarm | The device supports power failure alarm, when the main power off,the alarm will be sent to platform. |
| 15 | Low voltage alarm | The device supports low voltage alarm,when the supplied voltage is low,an alarm will be sent to the platform. |
| 16 | Auto Arm(optional function) | Device support cellphone binding, after binding the device goes into anti-theft monitor. When car owner is away from device, the device automatically enters the armed mode. After entering the arming mode, car vibration or movement exceeds a set distance, the alarm will be sent to the monitoring center. |
| 17 | Fuel cut off | The device supports to cut off the fuel , You can issue command via platform to lock the car. |
| 18 | Standby switch | It supports one I/O port, used to extend other peripherals Information, Support digital input (Ex. AC on/off, Door Status) |
| 19 | Blind area save the GPS data | The condition of the GSM signal loss, GPS data are stored in the device memory, when the GSM signal is normal, automatically fill the preservation of the GPS data. |
FAQ:
1. Please make sure the SIM card is effective (have GPRS function). And check the SIM card’s APN name.

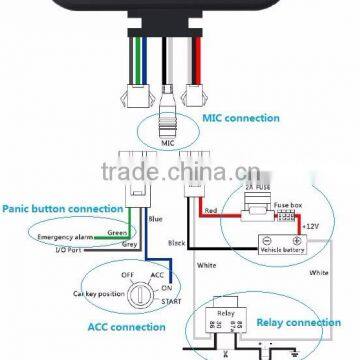

2. When connecting the wire, please avoid high temperature and extrusion, and don’t snap the wire. After the connection, please use insulation adhesive tape for fixation.
3. Please make sure the connection is fine, then turn on the power. Do not install or uninstall with power.
4. Please install the antenna correct (GPS antenna and GPRS antenna).
5. The device is wireless communication product, please make sure the power is off when you enter dangerous place such as gas station.
Fast Tracking via Monitor Platform(US Server):
Login Page:
Monitor Page:
Company Information
Shenzhen Huabao Electronic Technology Co.,Ltd is a high tech company which main focused on providing the advanced Intelligent Transportation System solution ,Exclude providing the advanced solution, we also provide the terminal device ,for example: GPS Vehicle Tracker, Personal tracker, OBDII, Digital tachograph, MDVR !Our company have 300 employees which include more than 100 R&D engineers . With 20000 square meters factory area, we could realize the output of device 30000pcs every month ! Now we devoted to become the NO.1 in this industry!
Shenzhen Huabao Electronic Technology Co.,Ltd
Make your travel safer! We can do more than you think!
