Specifications
1)14 years manufacturing experience
2)Three phase electric motor,Y series
3)0.37-315KW,100% copper wire
4)Competitive price

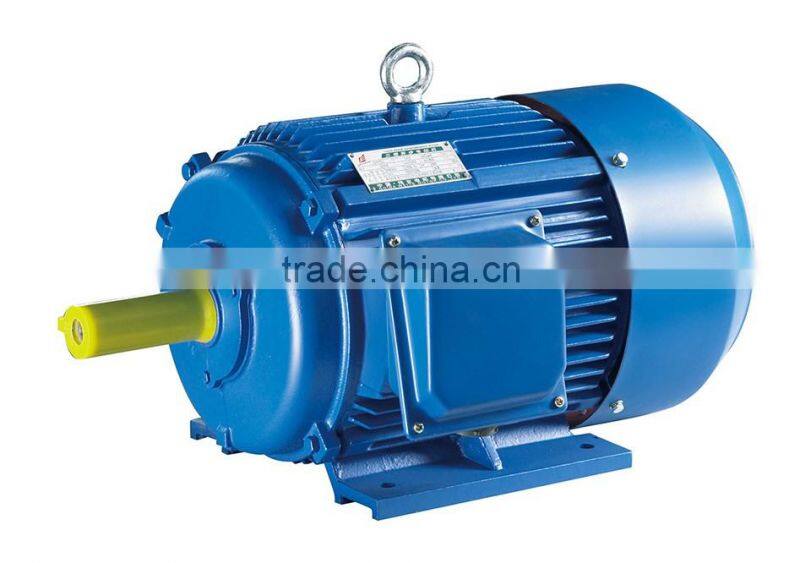

Y Three Phase Electric Motor
Brief Introduction
- Y series motors are totally enclosed fan cooled(TEFC),three phase squirrel cage induction motors,it is national uniform design in conformity with the relevant standards of IEC34-1 and JB/T9616-1999,enjoys international interchangeable features.
- Y series motors have outstanding performance such as high efficiency,energy-saving,high starting torque,low noise,slight vibration,reliable operation and easy maintenance,etc.
- Y series motors are widely used in many places,where there do not exist combustible,explosive or corrosive gas,special requirements,such as machine tools,pumps,blowers,transport machinery,mixer,agriculture machinery and food machines,etc.
1. Customized Production is available.
2. Supply for OEM and After Markets.
3. 100% tested for the quality prior to shipment
4. Certificate and Guarantee: ISO 9001:2008 / one year
5. package: carton&pallet
Detailed Product Description
1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet

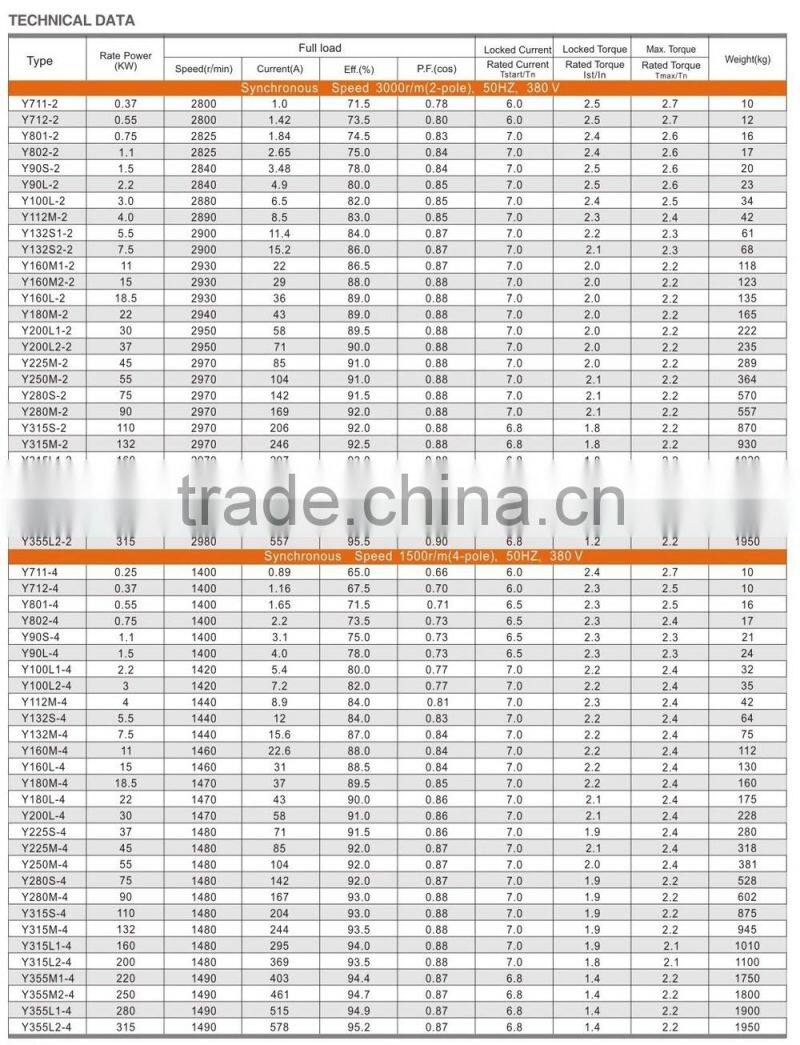

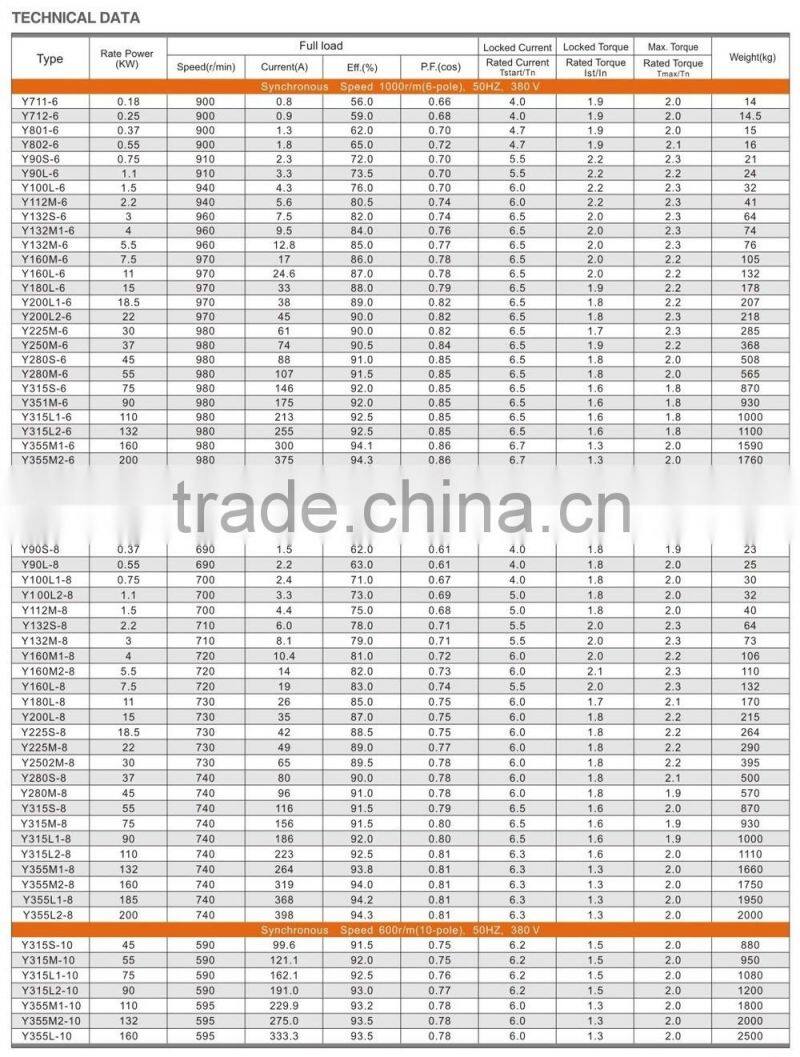

Specifications
1) Frame sizes: 63-355
2) Rated power: 0.12kw-200kw
3) Rated voltage: 220/380V,380/660V or on your request
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: B3/B5/B14/B15/B34/B35
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Special motors can be designed according to customers' requirements
Weiye is proud to be celebrating our 15th anniversary this year. Over this time the company has grown from a small family run business to a large international company with hundreds of millions of dollars in annual revenue.
Weiye Motor Co., Ltd. is a professional manufacturer and seller of various of electric motors, which previous company Wenling Weiye Electric Co., Ltd, was found in 1999. And upgraded to China Weiye Motor Co., Ltd. in 2010, with registered capital of 50 million RMB. In 2013, a new plant was completed and the production started in the meantime. The new plant covers an area of 35000 square meters, located in Xianju industrial area. Owns more than 200 sets advanced processing and testing equipment,
and 500 staffs, including nearly 100 engineer and technician, 20% of them are senior titled.
Here are some pictures of workshop:
1. 63 to 132mm motors will be packed in export standared carton or polywood box.
2. 132mm and above motors will be packed in polywood box with feet.
3. Then load into the container.
Picture of carton package:
Picture of polywood box package:
A:What is your MOQ of this item ?
B:20 pcs per item.
A:What is our lead time ?
B:25-30 days.
A:What is your payment?
B:T/T, L/C at sight, D/P at sight, Paypal,
A:Can we type our brand on it ?
B:Yes of course.
A:Where is your loading port ?
B:Ningbo port or Shanghai port.
A:What is your company's available production capacity ?
B:About 1000 PCS per day.
