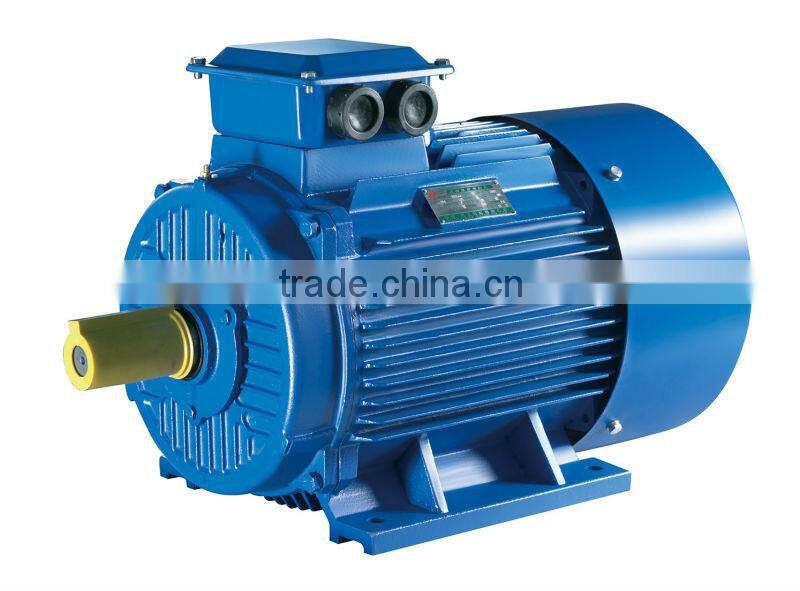

Y2 Three Phase Electric Motor
Brief Introduction
three-phase electric motor is specially designed for European market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the IEC standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.they are mainly applied for machinery and equipment.such as agriculture machinery, food machinery and air compressor.
1. Customized Production is available.
2. Supply for OEM and After Markets.
3. 100% tested for the quality prior to shipment
4. Certificate and Guarantee: ISO 9001:2008 / one year
5. package: carton&pallet
Detailed Product Description
1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet
Specifications
1) Frame sizes: 63-355
2) Rated power: 0.12kw-200kw
3) Rated voltage: 220/380V,380/660V or on your request
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -35°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
Company Overview

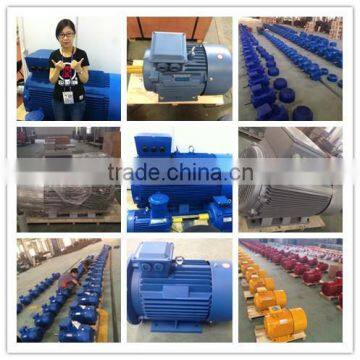

Working Shop

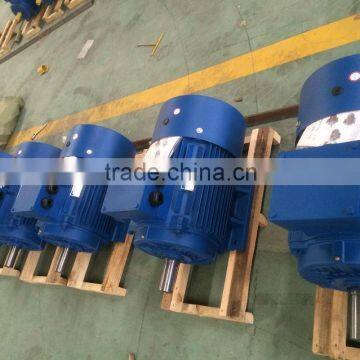

Loading Motors

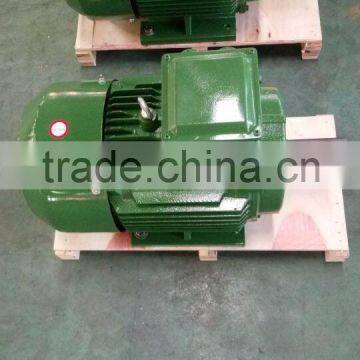

Plywood Packages

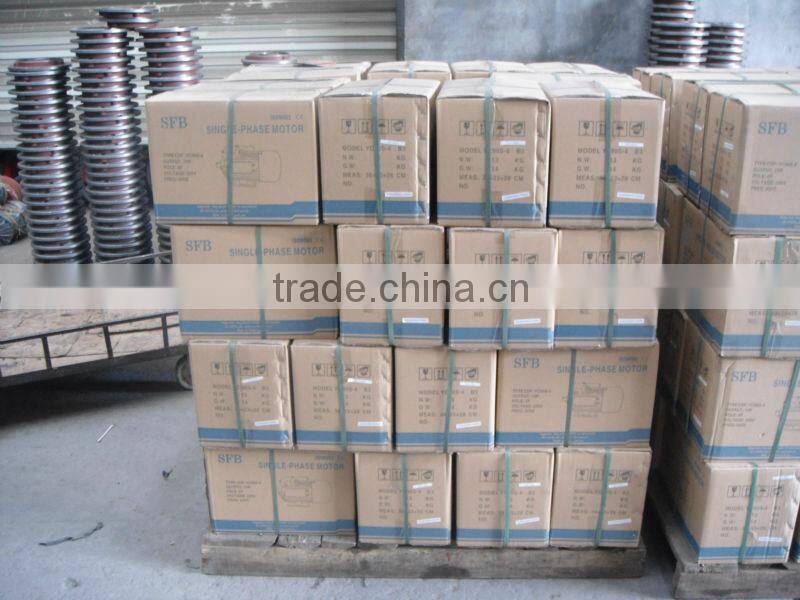

Canton Box Packages
Certificates
F A Q :
A:What is your MOQ of this item ?
B:20 pcs per item.
A:What is our lead time ?
B:25-30 days.
A:What is your payment?
B:T/T, L/C at sight, D/P at sight, Paypal,
A:Can we type our brand on it ?
B:Yes of course.
A:Where is your loading port ?
B:Ningbo port or Shanghai port.
A:What is your company's available production capacity ?
B:About 1000 PCS per day.
We are willing to cooperate with the friends in all circles to create a new miracle. Welcome you all to come to have a visit !
