Black Welded Wire Fence Mesh Panel for Building

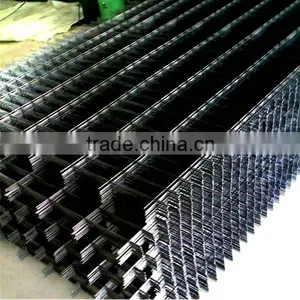

Black Welded Wire Fence Mesh Panel for Building thumbnail-1
Black Welded Wire Fence Mesh Panel for Building photo-1
US$ 0.2 - 2 MOQ: 5000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
AINING
Model Number:
BWMP-1
Contact Supplier Request Quote Chat Now
Hebei Aining Import And Export Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name AINING
Model Number BWMP-1
Material Other, Galvanized Iron Wire,Low carbon iron wire, Low-Carbon Iron Wire
Type Welded Mesh
Application Construction Wire Mesh
Hole Shape Square
Aperture 6mm-50mm
Wire Gauge 0.2MM-6.5MM

Specifications

Black welded wire fence mesh panel for building
1.Wire aperture 6x6,8x8,10x10
2.Wire guage from 6mm-20mm
3.A252,A393 Standard

Black welded wire fence mesh panel for building



We supply black welded Wire Fence Mesh Panel in all standard sizes in a variety of wire gauges in both plain and deformed wire.It is manufactured to SANS 1024:2006 and to other international standard specifications.

1.Materials: steel bar, iron rod
2.Wire diameter: from 3mm to 16mm.
3.Panels opening: from 50mm to 200mm, the Vertical from 25. mm to 500m
4.Panel length: 1.0m to 12m
5.Panel width: 0.5m to 3.0m

6.Specification:

  Fabric Mesh Size
Nominal Pitch of wire		 Wire Sizes Cross Sectional
area/m width		 Nominal
mass/m2
Ref No. Main mm Cross mm Main mm Cross mm Main mm Cross mm Kg Supplied in
Square Mesh
Fabric		 888 200 200 12 12 566 566 8.88 Sheets
only
6m x 2.4m
746 200 200 11 11 475 475 7.46
617 200 200 10 10 393 393 6.17
500 200 200 9 9 318 318 5.00
395 200 200 8 8 251 251 3.95
311 200 200 7.1 7.1 198 198 3.11
245 200 200 6.3 6.3 156 156 2.45
193 200 200 5.6 5.6 123 123 1.93 Sheets or rolls
100 200 200 4 4 63 63 1.00
Design Mesh
Fabric		 1085 100 200 12 8 1131 251 10.85 Sheets only
6m x 2.4m
943 100 200 11 8 951 251 9.43
772 100 200 10 7.1 786 198 7.72
655 100 200 9 7.1 636 198 6.55
517 100 200 8 6.3 503 156 5.17
433 100 200 7.1 6.3 396 156 4.33
341 100 200 6.3 5.6 312 123 3.41
289 100 200 5.6 5.6 246 123 2.89
Longitudinal
Mesh Fabric		 278 100 300 6.3 4 312 42 2.78 Sheets only
6m x 2.4m
226 100 300 5.6 4 246 42 2.26
133 100 300 4 4 126 42 1.33 Sheets or rolls
60m x 2.4m
Special Mesh 200 100 100 4 4 126 126 2.00
156 100 100 3.55 3.55 99 99 1.56



7. Features:
* Effective prevention against crime
* Maximum strength with strong rolled steel uprights
* Clear visibility and ventilation when closed
* Competitively priced
* Minimal maintenance
* Convenient and cost effective alternative to conventional bar reinforcement
* Manufactured in sheets or rolls
* Quick and simple site installation process
* Generally specified and manufactured according to standard references making for easy site identification, quality control and management



Welcome to visit our factory about more black welded Wire fence Mesh panel.

HEBEI AINING IMPORT AND EXPORT CO., LTD.

TEL:+86-311-66697109

FAX:+86-311-66697106

MAIL:vicky(at)
