Specifications
Razor Barbed Wire Mesh Fence1.IS09001:2000
2.Type: Hot dipped,Stainless steel
Razor Barbed Wire Mesh Fence
1. Materials: Galvanized steel wire, stainless steel wire, etc.
2. Uses: Razor wire is widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. It has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
3. Kinds:
(1) Crossed Razor Barbed Wire
Two pieces of stainless razor wire or zinc-coated razor wire were bounded together by clips to make it more strength. The spiral intersecting barbed wire presents an intersecing shape after opening with beautiful feature and practicality.
(2) Single coil barbed Wire
Single coil barbed tape wire is installed without clips, it runs in natural loops on walls.Costless and can be easily installed.
(3) Straight Razor Barbed Wire
There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly it. can not only save expenditure but also reach the result of frightening and stopping.

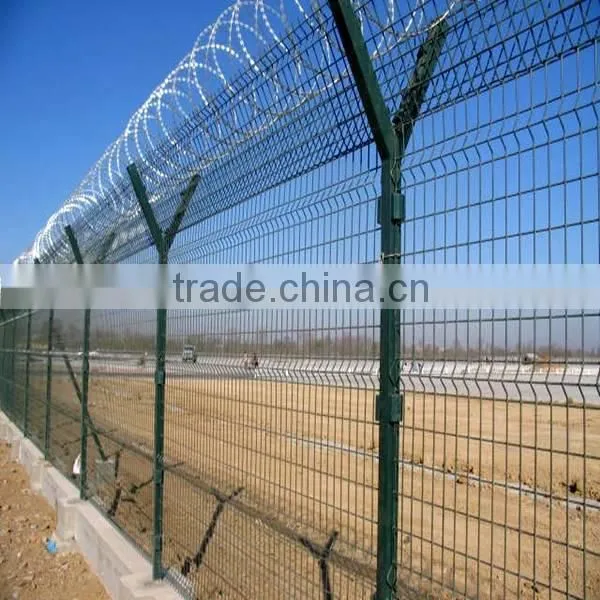

(4) Razor Wire Mesh Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security, it with practicality blade and the feature looks very beautiful. It can be used for guard net of
fence ,doors and windows and also can be used in military. The specification can be designed as the customers’ need.

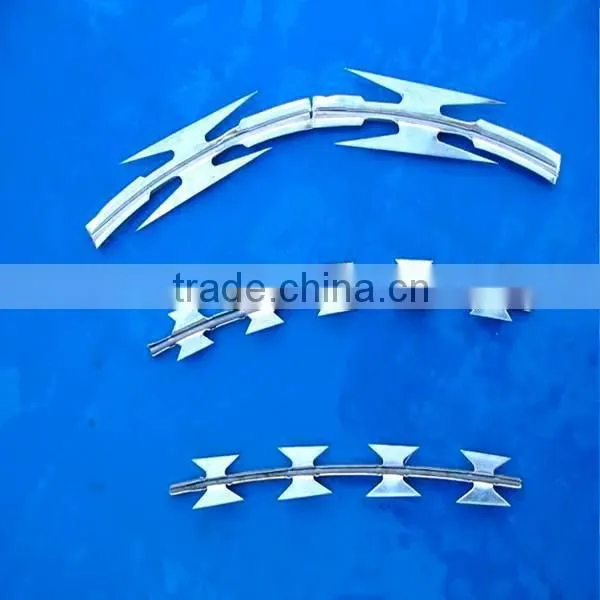

4. Razor Blade Specification
| Reference Number | Thickness |
Wire Dia |
Barb Length |
Barb Width |
Barb spacing |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-15 |
0.5±05 |
2.5±1 |
15±1 |
15±1 |
33±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
45±1 |
BTO-30 |
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
46±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
21±1 |
100±2 |
CBT-65 |
0.6±05 |
2.5±1 |
65±2 |
21±1 |
100±2 |
| Barbed Tape Wire Specification | ||||
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
5.Package: weaving bag, carton, or according to customers requirements
HEBEI AINING IMPORT AND EXPORT CO., LTD.
TEL:+86-311-66697109
FAX:+86-311-66697106
Skype:aining0102
MSN:aining02(at)
