Specifications
1 Inch Galvanized Welded Wire Mesh1.ISO9001:2008
2.aperture:1/2",
3.wire diameter:0.65mm
4.Competitive price

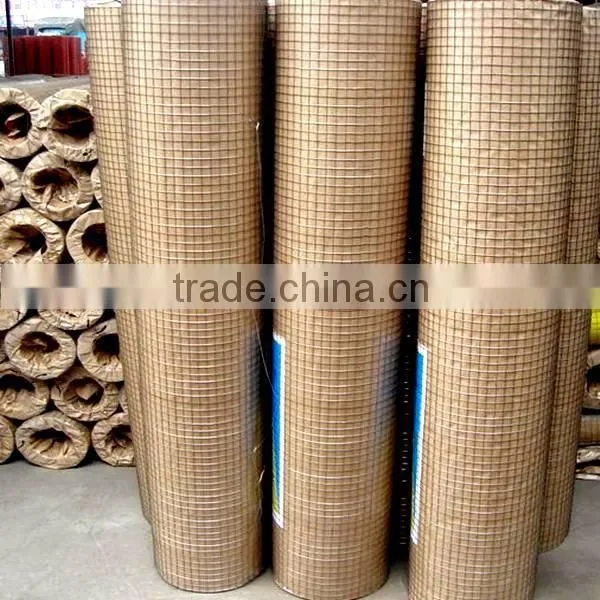

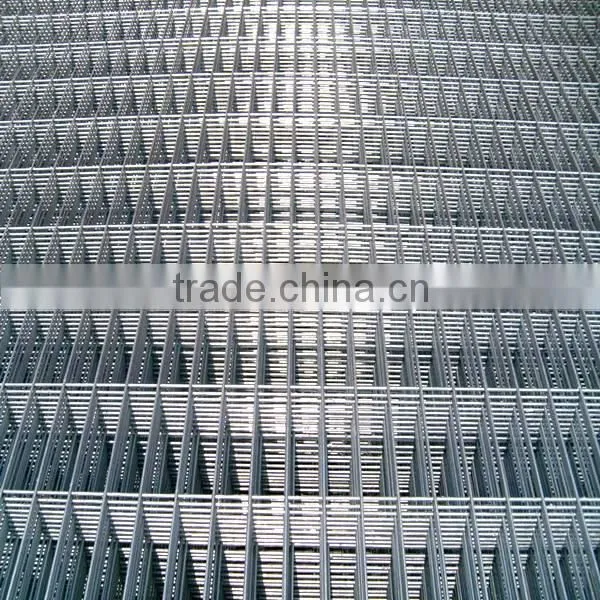

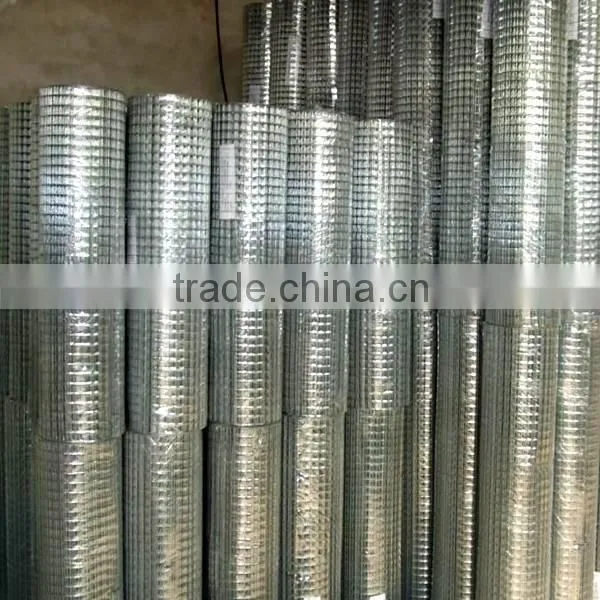

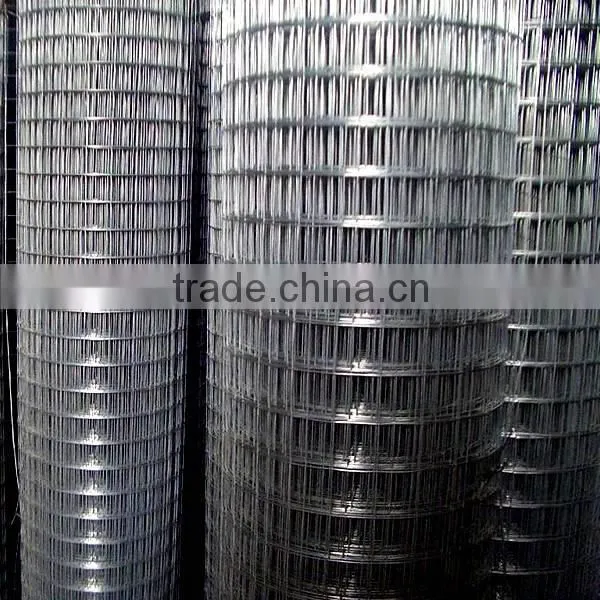

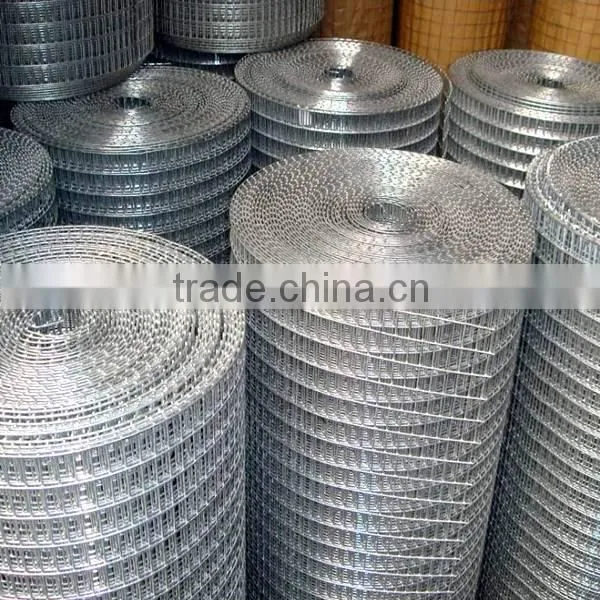

1 Inch Galvanized Welded Wire Mesh
1. Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
2. Use:
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
3.Features of welded wire mesh:
a> made of high quality steel wire.
b> various configurations and sizes.
c> used for the loose strata to avoid falling rocks.
d> suitable for shotcrete applications.
e> range of sizes to suit roadway width and bolting patterns.
f> easy installation
g> available in black or hot dip galvanized
h> size of wire aperture: 50x50mm,100x100mm,150x150mm,200x200mm, or according to customer request.
i> Max length:6mm
j> width:1200mm,1700mm,2400mm, or according to customer request.
k> diameter of steel wire:3.15mm,4mm,5mm,6mm. or according to customer request

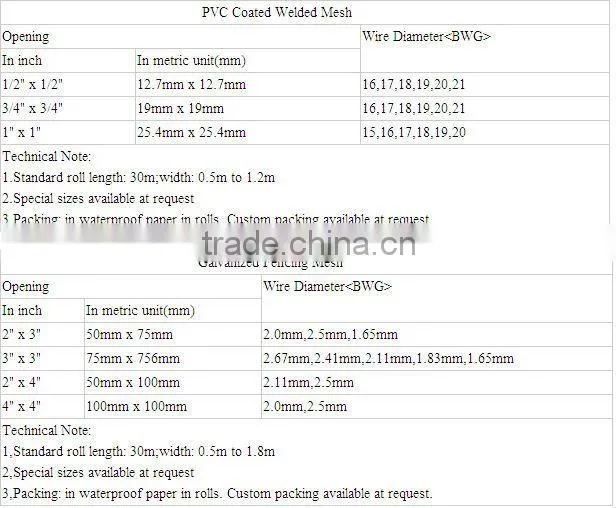

4.Specification:
GAUGE |
MESH |
W X L |
N.W/ROLL |
LOAD CAPABILITY |
BWG14 |
1" X 1" |
3' X 100' |
56 |
240 |
|
2" X 1" |
3' X 100' |
41 |
245 |
BWG15 |
1" X 1" |
3' X 100' |
42 |
275 |
|
2" X 1" |
3' X 100' |
32 |
285 |
BWG16 |
1" X 1" |
3' X 100' |
35 |
300 |
|
2" X 1" |
3' X 100' |
27 |
360 |
|
3/4" X 3/4" |
3' X 100' |
47 |
300 |
BWG17 |
1" X 1" |
3' X 100' |
28 |
360 |
|
1" X 1/2" |
3' X 100' |
41 |
330 |
|
3/4" X 3/4" |
3' X 100' |
36 |
335 |
BWG18 |
1" X 1" |
3' X 100' |
19 |
475 |
|
1/2" X 1/2" |
3' X 100' |
40 |
415 |
|
1" X 1/2" |
3' X 100' |
29 |
415 |
|
3/4" X 3/4" |
3' X 100' |
26 |
440 |
BWG19 |
1" X 1" |
3' X 100' |
14 |
565 |
|
1/2" X 1/2" |
3' X 100' |
28 |
490 |
|
1" X 1/2" |
3' X 100' |
20 |
525 |
|
3/4" X 3/4" |
3' X 100' |
19 |
545 |
BWG20 |
1" X 1" |
3' X 100' |
10 |
740 |
|
1/2" X 1/2" |
3' X 100' |
20 |
580 |
|
3/4" X 3/4" |
3' X 100' |
13 |
630 |
BWG21 |
1/2" X 1/2" |
3' X 100' |
16 |
700 |
BWG22 |
1/2" X 1/2" |
3' X 100' |
13 |
800 |
BWG23 |
1/4" X 1/4" |
3' X 100' |
20 |
800 |

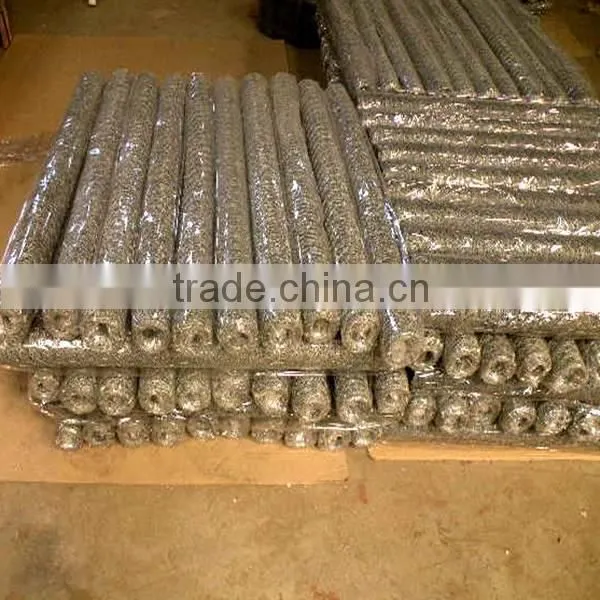

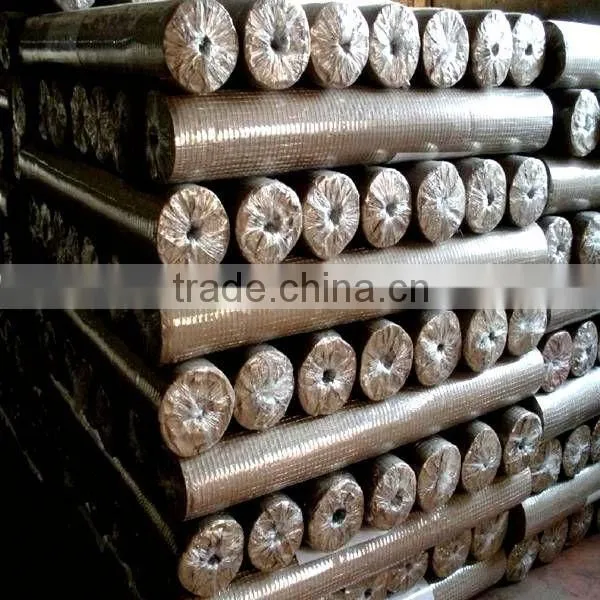

5. Package
a. Water proof paper then in pallet or other packing according to customers require.
b. As the client's requirement.
6.As a professional manufacturer, we can ensure you the good quality and good service due to:
1.Our professional engineer and workers all with at least 6 years experience which can ensure you the high technic and efficiency of the production;
2.Our 20 years' experience in international trade will ensure you the consummate in the whole process of trading.
3.Furtherly our products have been exported to more than 15 countries all over the world and gained a good reputation from our customers,it is the headspring of our big confidence to write to you to enlarge our business
