Galvanized Razor Wire Barbed Wire/cheap Galvanized Razor Barbed Wire Bto-22 30 Cbt-60 65(ISOfactory)

Galvanized Razor Wire Barbed Wire/cheap Galvanized Razor Barbed Wire Bto-22 30 Cbt-60 65(ISOfactory) photo-1
US$ 450 - 1,600 MOQ: 100 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Aining
Model Number:
Aining01866
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Aining
Model Number Aining01866
Material Other, Galvanized Iron Wire, Galvanized Iron Wire
Type Other, Barbed Wire Coil
Application Fence Mesh
Wire Gauge 2.5±0.1mm

Specifications

Galvanized razor wire barbed wire
1.Manufacturer
2.Free sample
3.SGS
4.Lowest price

Galvanized razor wire barbed wire/cheap galvanized razor barbed wire bto-22 30 cbt-60 65(ISOfactory)

1.Material : low carbon steel wire, stainless steel wire ,

iron wire, galvanized  steel wire PVC iron wire

2.Reference No.:razor barbed wire bto-22
Wire Dia.: 2.5 mm +/- 0.1
Thickness (razor blade): 0.5 mm +/- 0.05
Barb length (razor blade): 22 mm +/- 1
Barb width (razor blade): 15 mm +/- 1
Barb spacing (razor blade): 34 mm+/- 1

Outside diameter: 450mm-900mm
No. Of loops: 36 -102loops
Stander length per coil: 9 V 10M (5 clips)
Note: single coil,crossed type

3.Package: Option One: Plastic film inside, outside weaving bag.
              Option Two: Plastic film inside, outside hession bag.

               Option three: carton packing

Specification:

Reference Number

Blade Style

Thickness

Wire Dia

Barb
Length

Barb
Width

Barb
spacing

BTO-10



0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-15



0.5±0.05

2.5±0.1

15±1

15±1

33±1

BTO-22



0.5±0.05

2.5±0.1

22±1

15±1

34±1

CBT-65



0.6±0.05

2.5±0.1

65±2

21±1

100±2



Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-10.15.22

Cross type

600mm

86

14M

BTO-10.15.22

Cross type

700mm

72

12M

BTO-10.15.22

Cross type

800mm

64

10M

BTO-10.15.22

Cross type

960mm

52

9M

BTO-10.15.22

Cross type



Characteristics:corrosion-resisting and oxidation-resisting.



Application: razor barbed wire bto-22 is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.

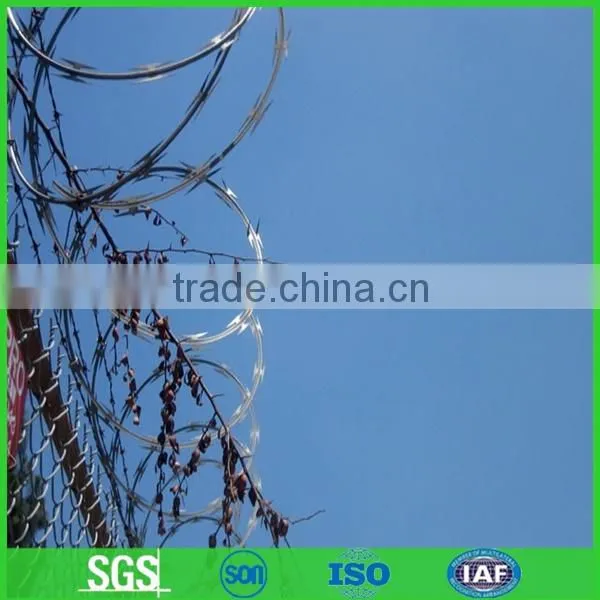

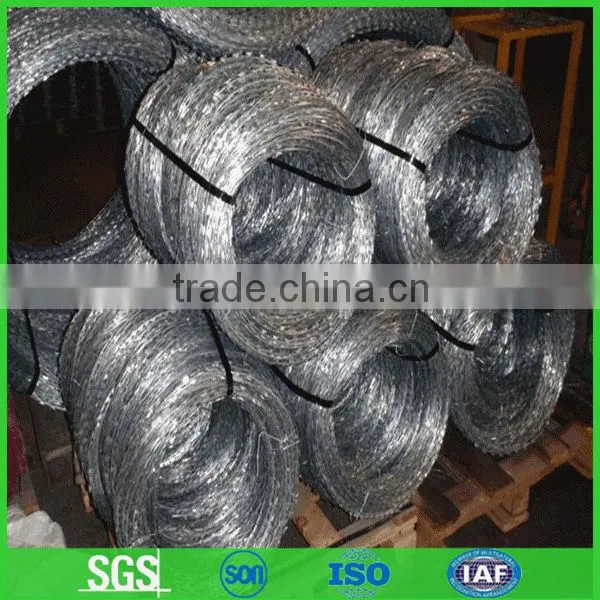

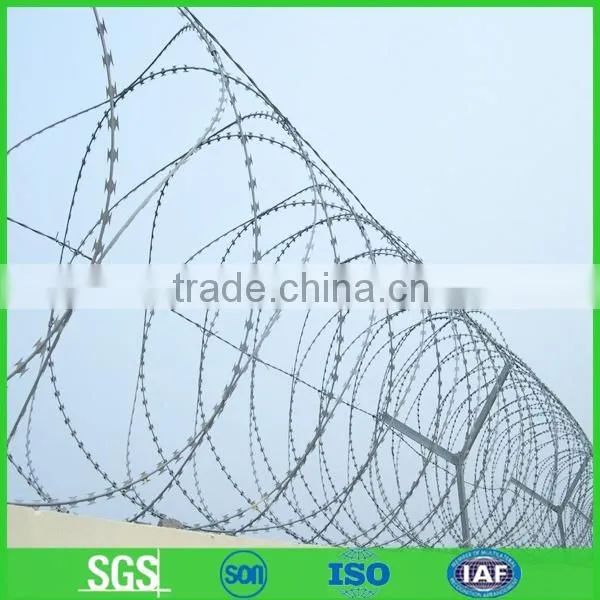

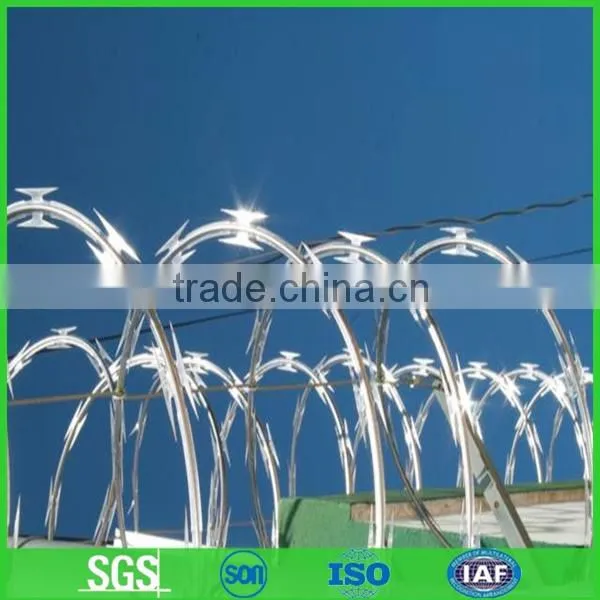

The following picturers are for your reference:
