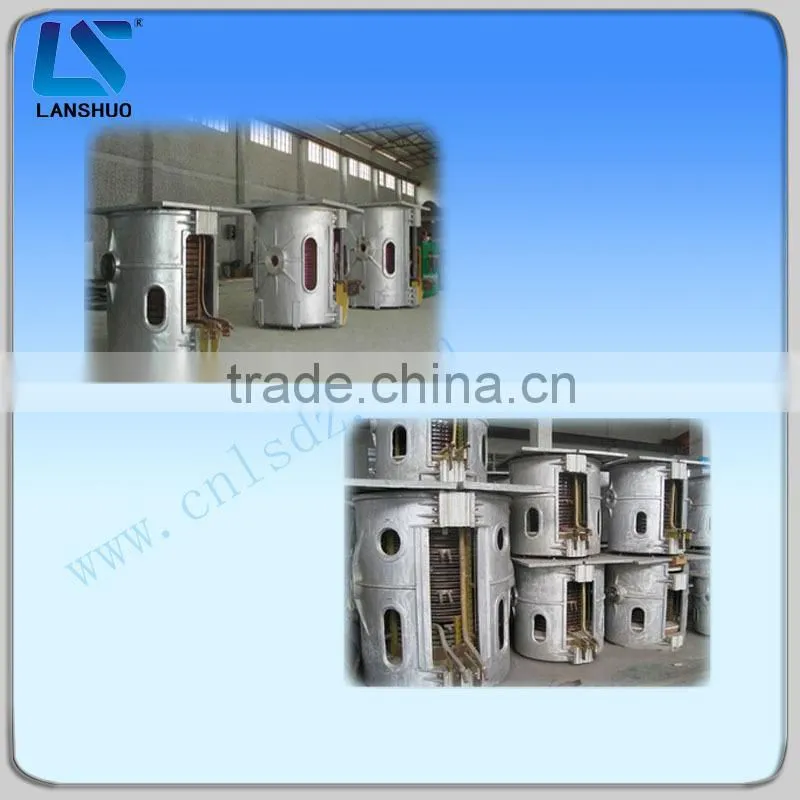

Medium frequency furnace / small electric induction furnace
My company
Zhengzhou lan Shuo Electronics Co., Ltd. is located in Zhengzhou high tech Industrial Development Zone, the company since its inception, is committed to the IGBT switching frequency, ultra audio frequency, high frequency induction heating equipment R & D and production, the company spirit of innovation for development, to the quality of survival, and strive for the vast number of users with high quality products, products widely used in stone processing, fasteners, tools, hardware tools, stainless steel products, automobile and motorcycle parts, pipe heat deformation. The main products are LSW - 26, LSW - 50, LSW - 60, LSW - 80, LSW - 100, LSW - 120, -, LSW - 160, -, LSW-300, LSW-200 series, the products sell well, exported to Southeast Asia and other countries and regions .
Information
Main information |
Brand:Lanshuo Model:LSW-100KW Module support: IGBT module and inverting technology Company name:Zhengzhou Lanshuo Electronics Co, Ltd |
Machine outside material |
Stainless steel |
Technical parameter |
Work voltage:380V Maximum input current:160A Oscillation frequency:15-25KHz Efficiency:100% Continuous load rate:100% Cooling water flow:generator :29L/min(0.1mpa)transformer22L/min Generator dimension: 600*480*1360 Transformer dimension:500*800*580 Color :blue&white Temperature protection:50 degree |
Warranty |
12 months spare part free replacement |
Component |

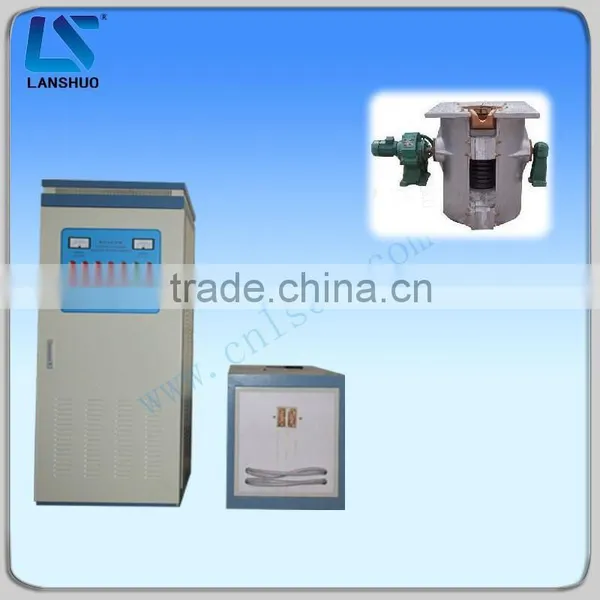

1.Generator 2.Transformer 3.Induction coils(tailor-made) 4.Operate instructions 5.Warranty card(one year spare part free replacement) |
Our daily service |
1. Reply inquiry in 24 hours 2. Experienced staffs answer all questions in fluent English 3. Customized design is available 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs 5. Special discount and protection of scales are provided to our distributor |
Features
1 fast heating, gas furnace heating faster than the more than 10 times:
2 the heating time is short, burning a small, compared to other heating methods, significantly reducing the amount of metal loss;
3 furnaces, small size, small footprint, the volume can be reduced to the extent of only three to five loading ingots, extrusion machines to meet production needs;
4 no environmental pollution, good quality metal billets heated;
5 to facilitate mechanization and automation, good working conditions, can reduce the operator;
6 metal billet heating process, the spindle temperature control can be achieved;
7 can be configured side by side two induction furnace (exchange use), to avoid shutdown, improve production efficiency heating furnace failure.
The use of high-frequency furnace:
1,Heat treatment: metal part or in whole quenching, annealing, tempering, diathermy;
2,Thermoforming: the whole, local forging, hot forging, hot rolling;
3,Welding: brazing metal products, a variety of cutter blade, serrated blade welding, steel, copper welding, the same kind of dissimilar metal welding;

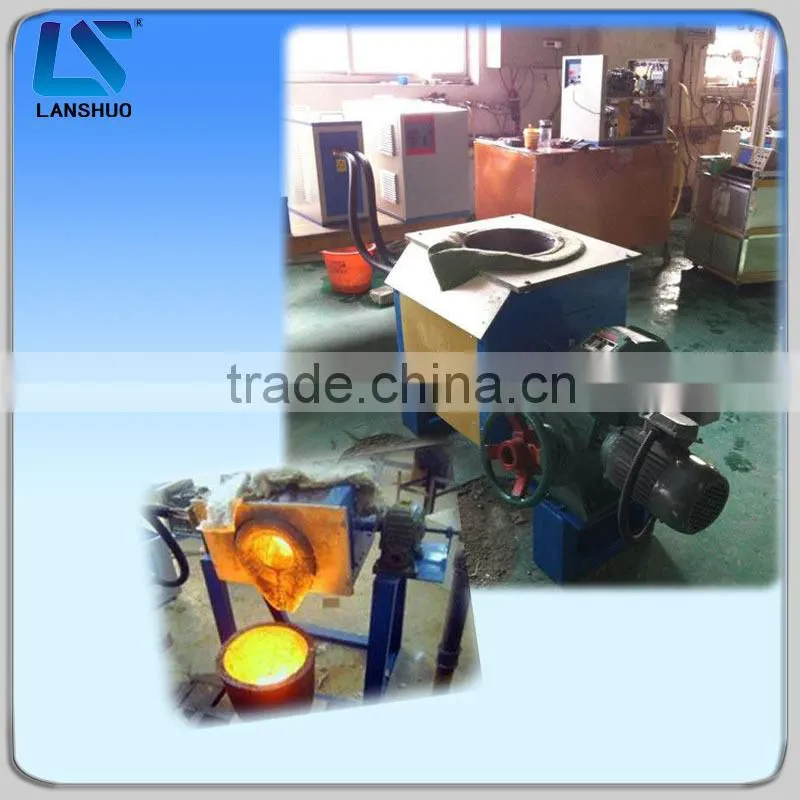

4,Metal smelting: gold, silver, copper, iron, aluminum and other metals (vacuum) melting, casting molding and evaporation coating;
5, Frequency heating machine Other applications: semiconductor single crystal growth, heat with bottle sealing, heat sealing toothpaste, powder coating, plastic and other metal implants
How long is delivery time of your company?
The products will be sent within 5 days.
What is the terms of payment?
T/T D/A Aliexpress West Union
Why should you choose my company?
1.Our factory have been built 10 years, is a direct supplier.
2.With professional and technical personnel, first-class service personnel, a strong work team,
3.reasonable price, bestquality,products are exported to Europe and the United States, Latin America, southeast Asia and other regions
