Stainless Steel Bird Netting

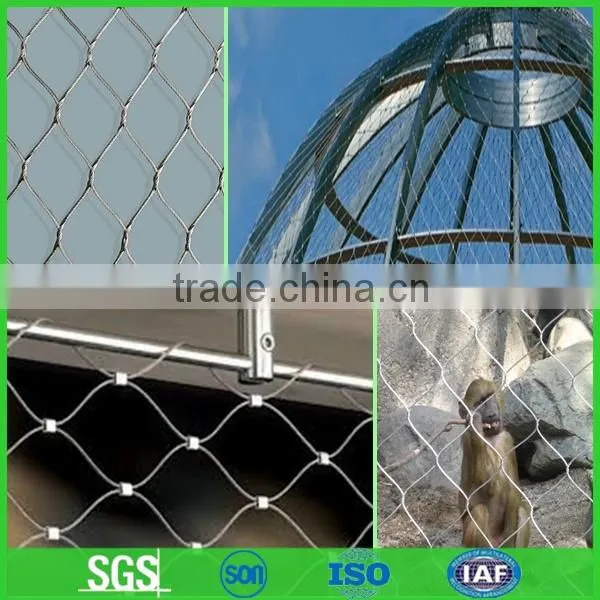

Stainless Steel Bird Netting photo-1
US$ 0.4 - 36.3 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Rope Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Rope Mesh
Application Woven Wire Mesh
Weave Style Plain Weave
Wire Diameter 1.2-3.2mm
Technique Woven
Model Number Aining059
Brand Name Aining

Specifications

Stainless steel bird netting
1.Manufacturer
2.Free samples
3.ISO9001:2008
4.Competitive price

Stainless steel bird netting



Stainless Steel Cable Mesh is used high  quality stainless steel wire cable, the stainless steel grade includes type 304(L)/316(L);



Type: The SS Cable Mesh are hand-made from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh;

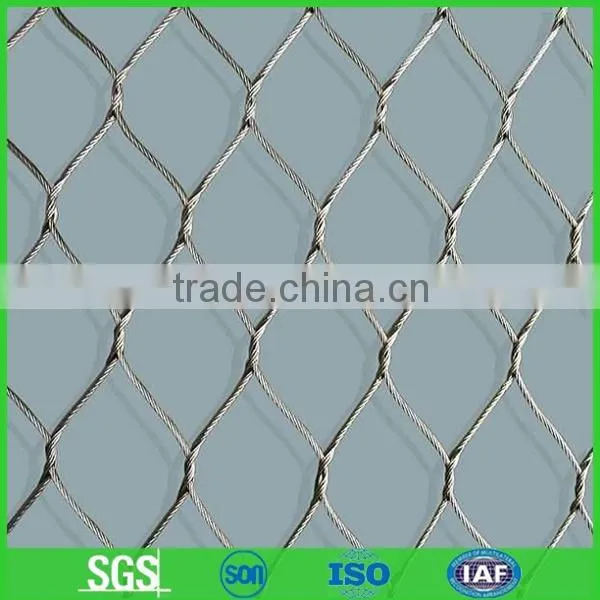

1.knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2.ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.



Specification:

Wire (mm )

dia. (Inch)

  Hold(mm)

  distance( Inch )

3.2

1/8

102*102

  4" *4"

3.2

1/8

76*76

  3" *3"

3.2

1/8

51*51

  2" *2"

2.4

3/32

102*102

  4" *4"

2.4

3/32

76*76

  3" *3"

2.4

3/32

51*51

  2" *2"

1.6

1/16

76*76

  3" *3"

1.6

1/16

51*51

  2" *2"

1.6

1/16

38*38

  1.5" *1.5"

1.6

1/16

25.4*25.4

  1" *1"

1.2

3/64

38*38

  1.5" *1.5"

1.2

3/64

25.4*25.4

  1" *1"

1.2

3/64

20*20

  5/4*5/4



Feature:

1.rhombus mesh,

2.with excellent flexible perforance,virtually indestructible, most impacting-resistant and breaking resistance force, most   resisting rain, snow,hurricane

3.the life span will be more than 30 years



Usage:it can be safely contain any species on land, in the air indoors or out. for the construction of Animal Enclosure, Animal Cage, Aviary mesh, Bird Cage and Bird Netting

Stainless steel bird netting
