PV Mounting System For Tile Roof Install

PV Mounting System For Tile Roof Install thumbnail-1
PV Mounting System For Tile Roof Install thumbnail-2
PV Mounting System For Tile Roof Install thumbnail-3
PV Mounting System For Tile Roof Install thumbnail-4
PV Mounting System For Tile Roof Install photo-1
PV Mounting System For Tile Roof Install photo-2
PV Mounting System For Tile Roof Install photo-3
PV Mounting System For Tile Roof Install photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Rey Solar
Model Number:
RM2
Contact Supplier Request Quote Chat Now
Xiamen Ruiye Industry Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Rey Solar
Model Number RM2
Type Other, Solar mounting

PV Mounting System For Tile Roof Install

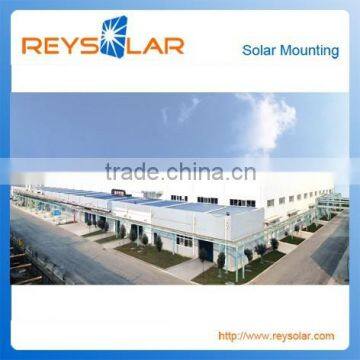

RM2 steel roof PV mounting system is suitable for factories or warehouses and other large areas of steel tile roof. Steel tile roof is generally divided into standing seam, Kok Chi style, dark button, and fastener connection. With varied steel roofs, the system solution is optimally designed for different steel tile roof structure. Fix the special bracket on steel tile, then connect the aluminum rails on to support the solar panels and fix them with special clamps. The structure of the solution is simple, reliable, and durable.



Technical Data



Design standard JIS C8955: 2011
Max. wind resistance 38m / s
Max. anti-snow load capacity 1.1KN / m2
Span range 1.0m ~ 1.8m
Distance between the roof and panels about 100mm
Installation site flat roof
Applicable panels framed or unframed
Modules installation direction portrait or landscape
Clamps & rail material Al6005-T5
Bolts& nuts Material SUS304
Warranty 10 years





Main Features

  • Large range of applications: The features of 100% aluminum production structure, light weight, high strength, and good corrosion resistance make the product can be applied to very harsh installation environment.
  • Compatibility: Suitable for different specifications of PV modules, and the modules can be applied in different ways of arrangement, enabling random swap.
  • Safety and reliability: With consideration to the load-bearing, wind, earthquake and other factors, and with rigorous calculation and testing the structure ensures safety and reliability.
  • Easy installation: Most of the parts can be pre-assembled, improving the efficiency of on-site installation, and saving time and labor costs for the construction of photovoltaic projects.
  • Flexibility and adjustability: Considering of probable construction deviation, the structure is cleverly designed with a flexible regulatory function. The system foundation position errors can be solved by the unique structure of the regulatory function, reducing the difficulty of construction.

Test Reports

PV Mounting System For Tile Roof Install
Plant Facility and Production Lines



PV Mounting System For Tile Roof Install


Standard Packing



PV Mounting System For Tile Roof Install
