Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Brackets > High Quality 76mm Aluminum Photovoltaic Solar Panel Mounting Ground Screws

High Quality 76mm Aluminum Photovoltaic Solar Panel Mounting Ground Screws

Name: High Quality 76mm Aluminum Photovoltaic Solar Panel Mounting Ground Screws
Brand: ReySolar
SKU: 102295617

High Quality 76mm Aluminum Photovoltaic Solar Panel Mounting Ground Screws thumbnail-1

High Quality 76mm Aluminum Photovoltaic Solar Panel Mounting Ground Screws photo-1

US$ 0.13 - 0.25 MOQ: 1 Kilowatt

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

ReySolar

Model Number:

GS-0602

Contact Supplier Request Quote Chat Now

Xiamen Ruiye Industry Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name ReySolar

Model Number GS-0602

Type Other, Aluminum

Product Description

1. Item Name: High quality 76mm Aluminum Photovoltaic Solar Panel Mounting Ground Screws

2. Item No. : GS-0602

3. Application:

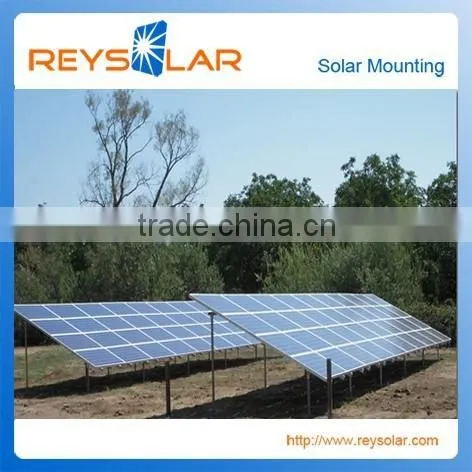

ReySolar Ground Screw is made from welded pipe body, with good strength and usability, which is used for the foundation of PV solar panel mounting system.

4. Ground screw features:

Conical shape and the bottom art as spiral fins, similar principle of screw, use mechaniacal equipment or wrench slowly put the screws into underground, with operation more convenient and energy efficient. The bottom part with open spiral fin, expanding the diameter of the pipe, increase the contact area with the soil and strengthen the contact with the soil, leading to better stability for the ground screws.

5. Other types of ground screws:

The first one is non-flange ground screw, fixing with screw-nuts, no flange at the end part. Use a nut, three of four nuts to fix the ground screws to the solar mounting system. The cost of his type is lower, and it is simple and convenient to adjust the installation height. The requests for the height and the smoothness are not very accurate.
The second type is the flange ground screw, fixed via convenient flange connection; The disadvantae is need to guarantee the flange keeping even, strictly requiringthe ground screw height and precision.

6. Technical Data

Brand	ReySolar
Diameter	76mm for standard ones, and customized specification is available
Length	1200mm or 1600mm, and customized specification is available
welding	international standards
Material	Aluminum
Galvanizing standard	DIN EN ISO 1461-1461
Function	solar mounting system foundations
Surface treatment	hot dip galvanized or electricity galvanized
Warrantly	10 years
Packing	Standard Export packing or customized
Delivery	about 15 days
Main Market	Japan, North American, Germany, Italy, Portugal, Brazil, Australia, South Africa etc.

7. Main Features

Large range of applications: The features of 100% aluminum production structure, light weight, high strength, and good corrosion resistance make the product can be applied to very harsh installation environment.

Compatibility: Suitable for different specifications of PV modules, and the modules can be applied in different ways of arrangement, enabling random swap.

Safety and reliability: With consideration to the load-bearing, wind, earthquake and other factors, and with rigorous calculation and testing the structure ensures safety and reliability.

Easy installation: Most of the parts can be pre-assembled, improving the efficiency of on-site installation, and saving time and labor costs for the construction of photovoltaic projects.

Flexibility and adjustability: Considering of probable construction deviation, the structure is cleverly designed with a flexible regulatory function. The system foundation position errors can be solved by the unique structure of the regulatory function, reducing the difficulty of construction.

Our Services

8. Test Reports

9. Plant Facility and Production Lines

Packaging & Shipping

10. Standard Packing
