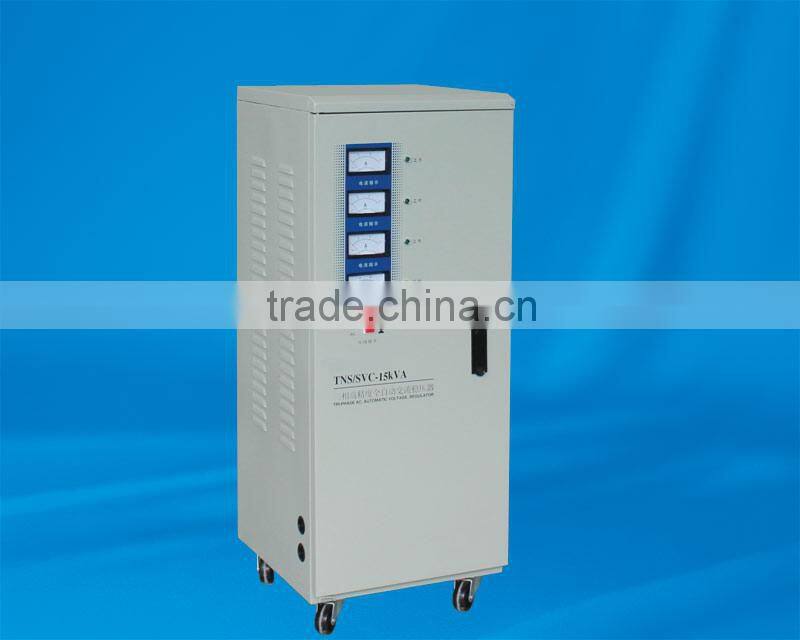

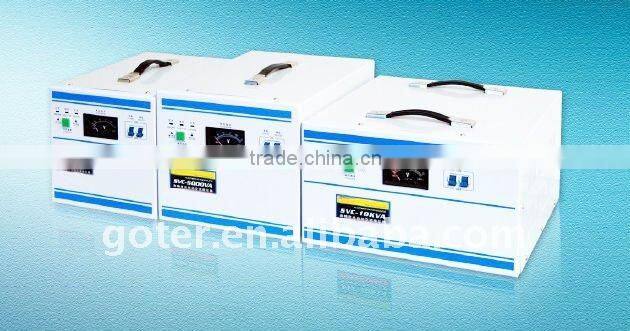

15kva SVC three phase high accuracy full automatic ac voltage stabilizers

Item Name:

Automatic Voltage Regulator / Stabilizer / AVR

Item Code:

TNS-9 KVA

Phase:

Three phases

Capacity:

9 KVA

Input voltage:

230~430V

Output voltage:

380V±3%

Precision/Accuracy:

± 3%(Adjustable)

Frequency:

50/60Hz

Efficiency:

More than 90%

Adjust time:

Not more than 1 S (When input voltage has a change of ±10%)

Ambient temperature:

-10℃~+40℃

Insulation resistance:

Normally more than 5MΩ

Relative humidity:

Less than 90%

Acoustic Noise:

Less than 40dB

Waveform distortion:

No additional waveform distortion

Control type:

Servo motor

Protection:

Over voltage/under voltage/over load/short circuit/time delay/over temperature/etc.

Warranty period:

One  years (for free)  Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.

Item Code

Capacity (KVA)

Size (L*W*H, CM)

N.W. (KG)

TNS-1.5 K

1.5

48.5*22.5*17

20.00

TNS-3 K

3

48.5*22.5*17

24.00

TNS-4.5 K

4.5

48.5*22.5*17

28.00

TNS-6 K

6

36*28*68

34.00

TNS-9 K

9

38*32*78

43.00

TNS-15 K

15

44*36*78

68.00

TNS-20 K

20

52*40*86

85.00

TNS-30 K

30

49*46*97

91.00

TNS-40 K

40

64*57*118

175.00

TNS-50 K

50

64*57*118

185.00

TNS-60 K

60

64*57*118

196.00

TNS-80 K

80

67*55*132

233.00

TNS-100 K

100

81*70*147

257.00
