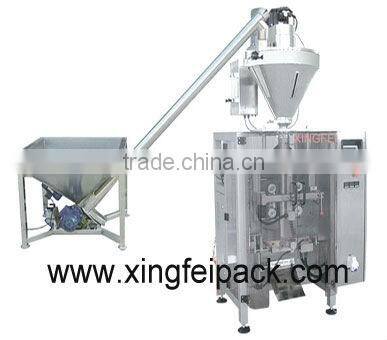

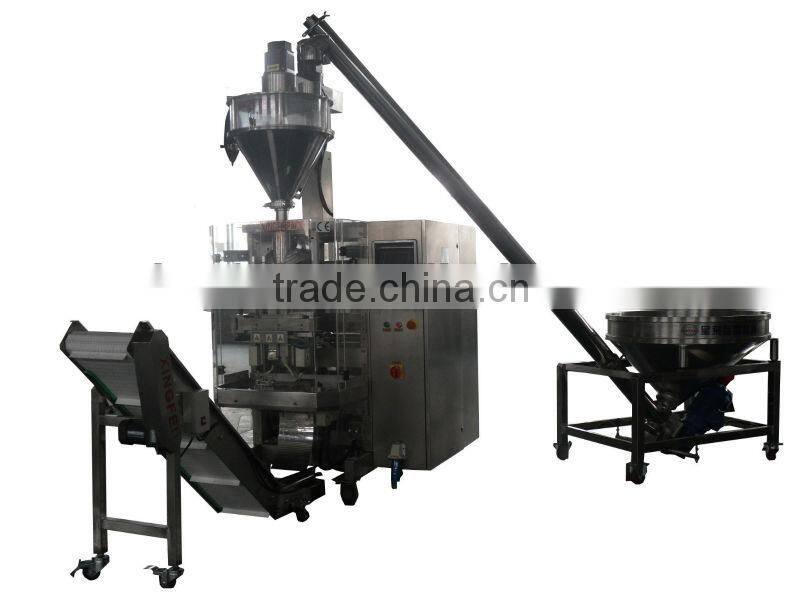

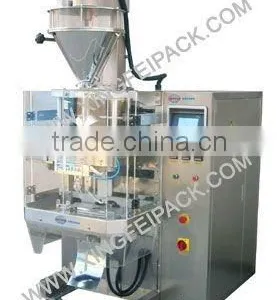

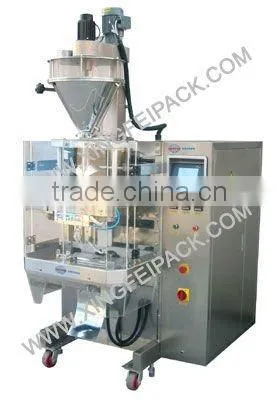

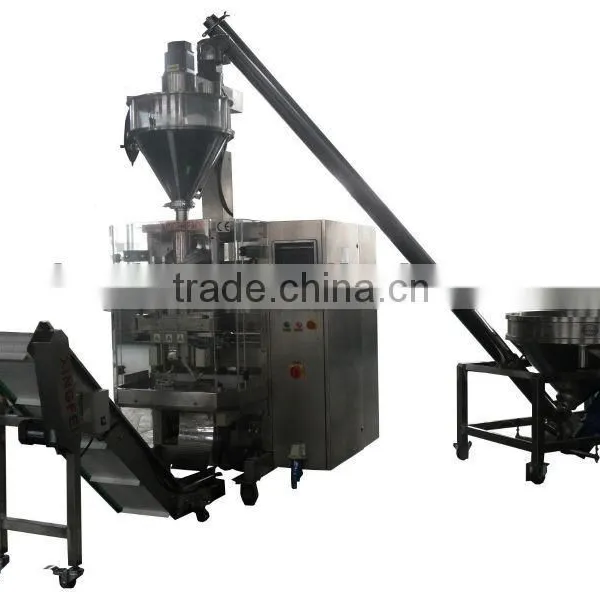

XFF-L Cocoa powder packing machine
. Application:
This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
II. Main performance and functional characteristics:
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.
4 Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers’ different requirements.
III. Technical Parameter
Measure method |
Auger dosing |
weighing feedback tracking |
Bag-making size |
(W)70-200mm (L)100-300mm |
(W)100-250mm (L)100-350mm |
Filling weight |
10-5000g |
10-5000g |
Packaging precision |
≤1% |
|
Packaging speed |
25-60bag /min |
|
Power supply |
Three phase 380/220V 50-60 Hz |
|
Power |
6 kw |
|
|
||
Use tolerance |
0.2m3/min |
|
Weight |
700kg |
950Kg |
Dimension |
1300×1500×2600mm |
|
