XFF-L Pharmaceutical Powders Packing Machine

XFF-L Pharmaceutical Powders Packing Machine photo-1
XFF-L Pharmaceutical Powders Packing Machine photo-2

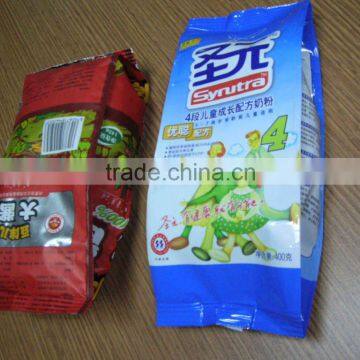

XFF-L Pharmaceutical Powders Packing Machine photo-3
XFF-L Pharmaceutical Powders Packing Machine photo-4
XFF-L Pharmaceutical Powders Packing Machine photo-5
XFF-L Pharmaceutical Powders Packing Machine photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Bottles, Cartons, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags, Bottles, Cartons, Pouch
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V
Power 6 kw
Place of Origin Shanghai, China
Brand Name XINGFEIPACK
Model Number XFF-L
Dimension(L*W*H) 1300*1500*2600mm
Weight 700kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

XFF-L    pharmaceutical powders PACKING MACHINE



 I. Application:
This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.

II. Main performance and functional characteristics:
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.

3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.
4 Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers’ different requirements.

III. Technical Parameter
Measure method

Auger dosing

weighing feedback tracking

Bag-making size

(W)70-200mm (L)100-300mm

(W)100-250mm (L)100-350mm

Filling weight

10-5000g

10-5000g

Packaging precision

≤1%

Packaging speed

25-60bag /min

Power supply

Three phase 380/220V 50-60 Hz

Power

6 kw

Pressure

6-8 kg

Use tolerance

0.2m3/min

Weight

700kg

950Kg

Dimension

1300×1500×2600mm

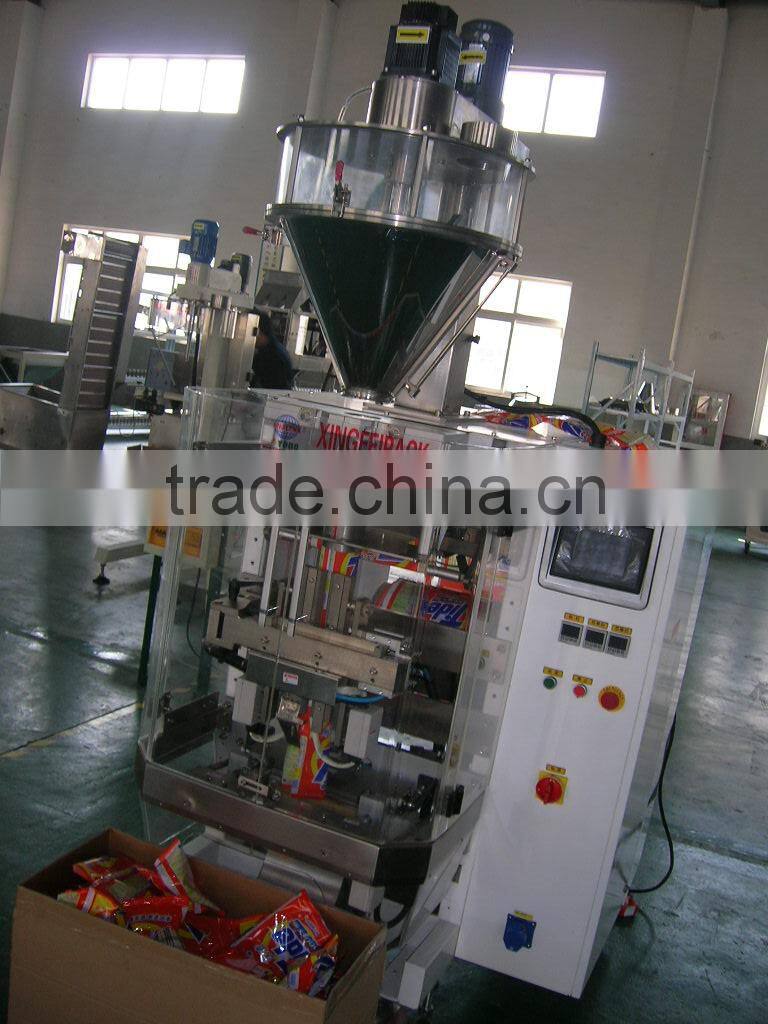

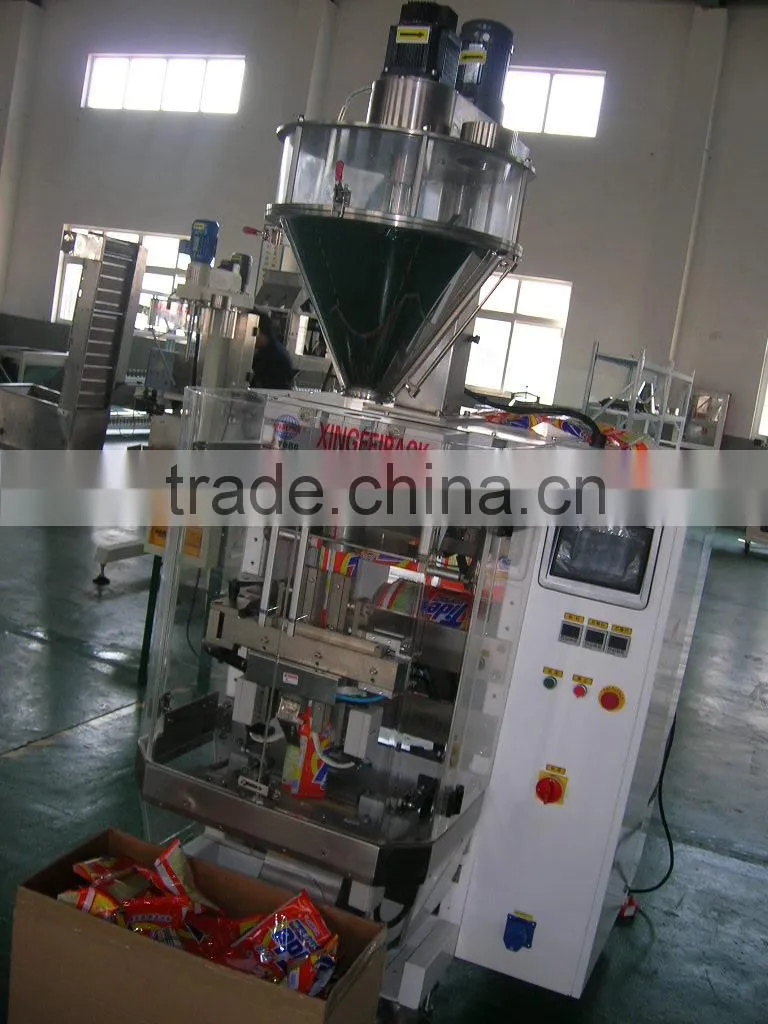

XFF-L pharmaceutical powders packing machine



XFF-L pharmaceutical powders packing machine







 XFF-L pharmaceutical powders packing machine
