Detecting Instrumentation for Tracking Hot Product
1. General Description
The MSE-FMD95 utilizes a modular digital Controller in protective mounting Cradle, flexible armored optic leads and interchangeable Remote Lenses. As the controller can be used in conjunction with any lens option one, standard controller can be used throughout the mill. Now there is no need to stock a detector for each requirement. Costly multiple inventory can be replaced with one detector.

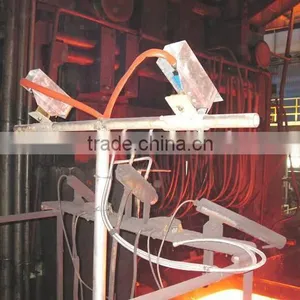

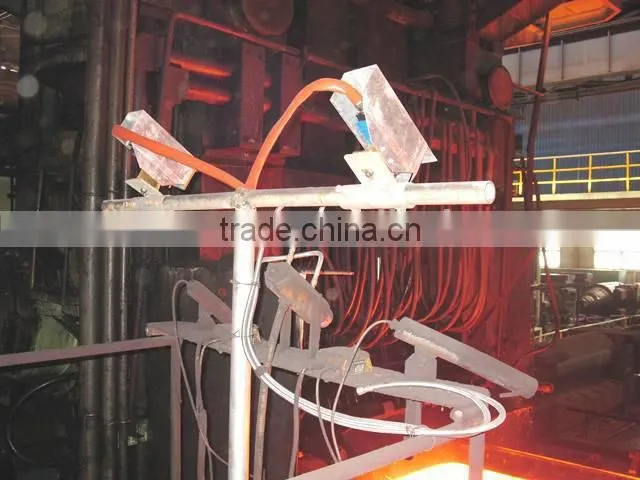

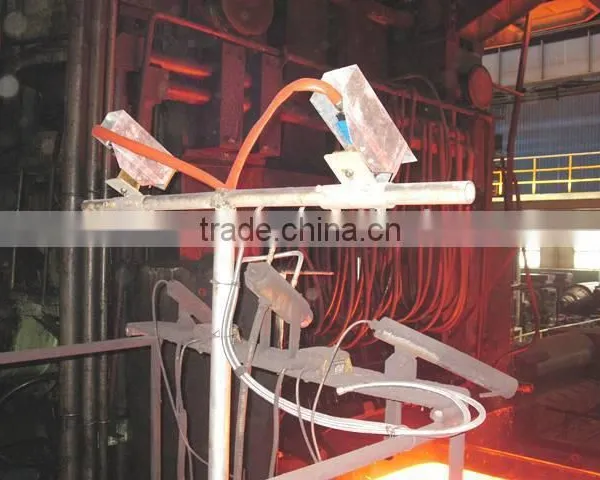

The remote lenses impervious to water & steam are built to withstand the harshest of environments. Used in conjunction with flexible armored optic leads, these lenses provide a high level of optical accuracy by allowing the selection of the ideal lens arrangement for the installation. Robust lenses with temperature ratings of 180°C, 600°C and 1000°C can be mounted close to the hot product. Various robust lens mounts are available including air purge.
2. General Information

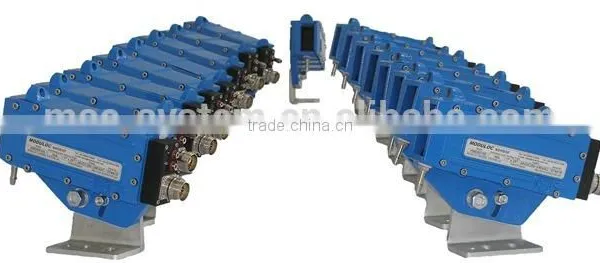

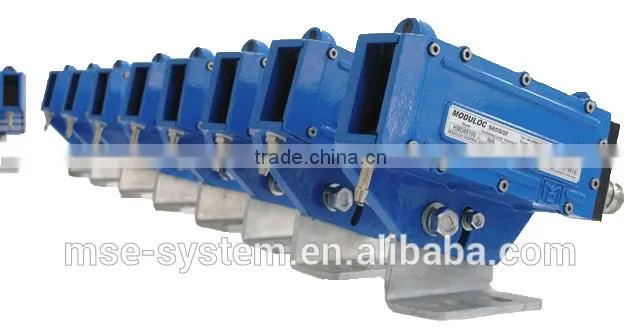

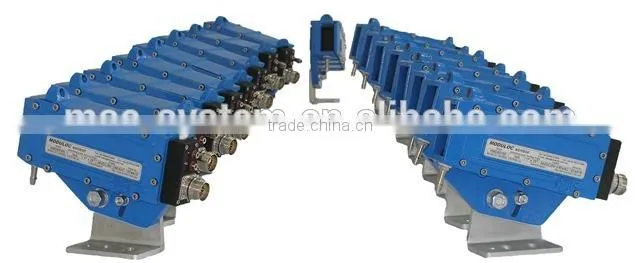

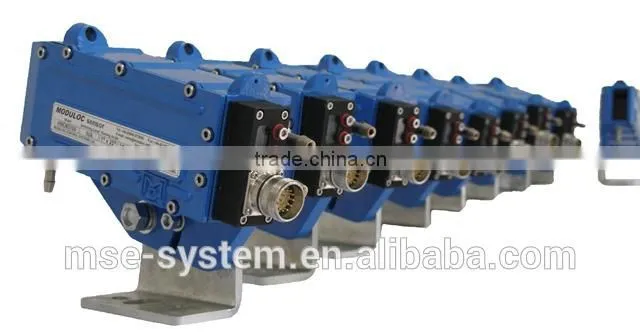

Remote Electronic Controller
Housing: Aluminum AL6, Oven baked black paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.7 Kg
Connector: IP66 Plug/Socket (connected!)
Cable Length: 1.5 M
3. General Specifications
Lens F.O.V. | Standard: Spot 1° or 7° |
Sensing Element | InGaAs Photodiode |
Function Indication | Left & Right Yellow LEDs |
Remote Self-Check | Middle Yellow LED |
Min I.R. Threshold Settings | Down to 270°C via programming switch |
Response Time | 1 ms to 250 ms, via programming switch |
Supply Voltage | Standard: 24 VDC ± 10% Option: 80-240 VAC / 50-60Hz |
Operating Temperature of Controller Unit | -20°C to +55°C |
Output no.1 | Cradle Relay Output, SPNO, 240VAC, 8A with 20 ms response time. |
Output no.2 | Reed Relay Output, SPNO, 240VAC, 0.5A with 2 ms response time. |
Output no.3 and 4 | PNP and NPN Transistor Outputs, N.O., 500 mA, 45 VDC, 2A peak (requires 24VDC supply) |
