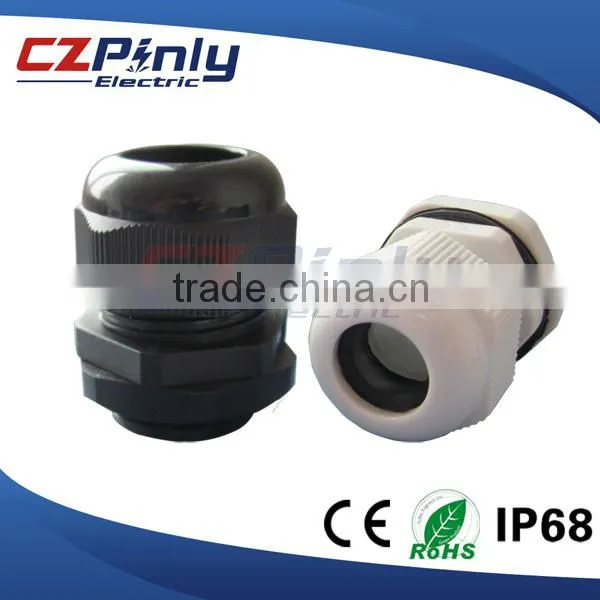

Cord Grips Strain Relief Connectors
Feature:(1) High protection class IP68 strain relief cable gland, in sizes from M12 to M27,
PG7 to PG21,NPT1/4 to NPT3/4 with a sealing ring for external threads.
(2) Strain relief to protect electric cables from mechanical stress.

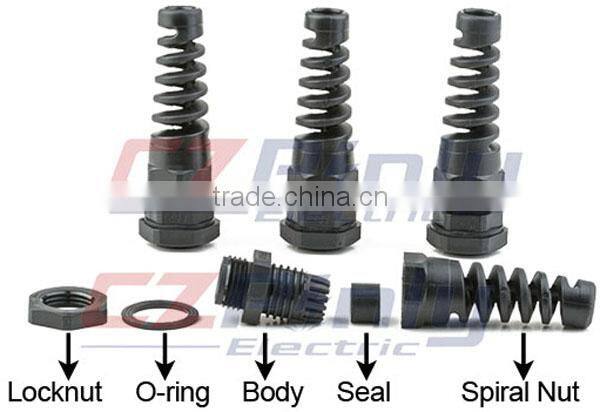

Material:Locknut / Body / Spiral Nut are made of Nylon;O-ring and Seal are made of NBR/EPDM.
OEM:Wire range / Multi-hole / Thread Length are available.

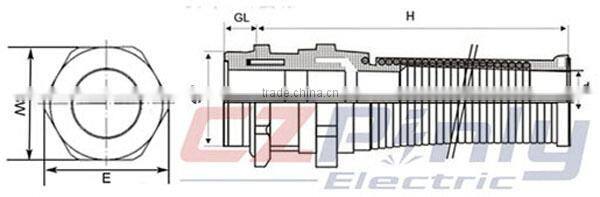

PG / Metric / NPT Series Spiral Cable Gland Technical Parameters:
If you need other cable range, please feel free to contact us.
such as PG7 have 3-6.5mm and 2-5mm wire range,PG9 have 4-8mm and 2-6mm wire range etc.
| Item | Cable Range | Thread O.D | Thread Length | H | d | SW | E |
| (mm) | AG (mm) | GL(mm) | mm | mm | mm | mm | |
| PG7 | 3-6.5 | 12.5 | 8 | 60 | 7.5 | 19 | 21 |
| PG9 | 4-8 | 15.2 | 8 | 70 | 9 | 22 | 24 |
| PG11 | 5-10 | 18.6 | 10 | 85 | 11 | 24 | 26.5 |
| PG13.5 | 6-12 | 20.4 | 10 | 95 | 13 | 27 | 29 |
| PG16 | 10-14 | 22.5 | 12 | 110 | 16 | 30 | 33 |
| PG21 | 13-18 | 28.3 | 12 | 120 | 20 | 36 | 39 |
| M12 × 1.5 | 3-6.5 | 12 | 8 | 70 | 7.5 | 17 | 19 |
| M16 × 1.5 | 4-8 | 16 | 8 | 70 | 9 | 22 | 24 |
| M18 × 1.5 | 5-10 | 18 | 10 | 85 | 11 | 24 | 26 |
| M20 × 1.5 | 6-12 | 20 | 10 | 95 | 13 | 27 | 30 |
| M22 × 1.5 | 10-14 | 22 | 12 | 110 | 16 | 30 | 33 |
| M25 × 1.5 | 13-18 | 25 | 12 | 115 | 20 | 33 | 36 |
| M27 × 1.5 | 13-18 | 27 | 12 | 120 | 20 | 36 | 39 |
| NPT 1/4 | 3-6.5 | 13.5 | 8 | 60 | 7.5 | 19 | 21 |
| NPT3/8 | 4-8 | 17 | 15 | 70 | 9 | 24 | 26 |
| NPT1/2 | 6-12 | 21.2 | 13 | 90 | 13 | 27 | 30 |
| NPT3/4 | 13-18 | 26.2 | 16 | 110 | 20 | 32 | 35 |

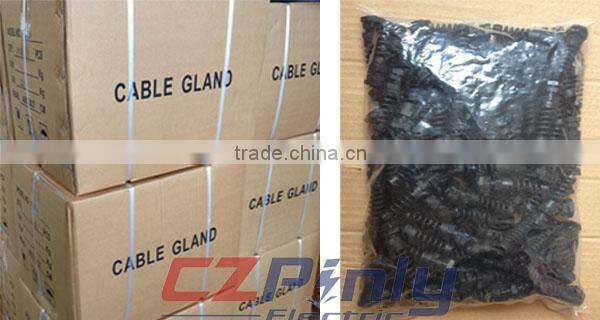

| Packaging | (1)Standard packing:100/50/20/10pcs per bag+ Poly bag+ Neutral label +Strong carton; |
| (2)Customized packing:OEM label, inner box,etc. | |
| Transportation | (1)Big order by sea/air,small order by express(Fedex,UPS,TNT,DHL,Aramex,EMS,Toll) |
| (2)We are a VIP of courier company and can offer the economic freight for you. |

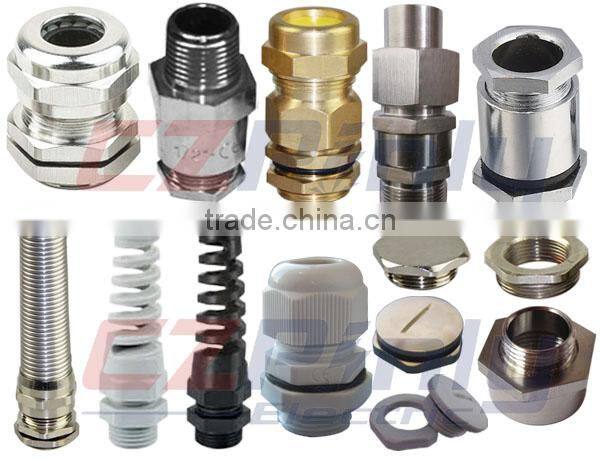

If you need cable glands catalogue,pls click the below picture.
Cable Gland Catalogue Link:
http://pinly.en.china.cn/productgrouplist-801957846/Metal_Cable_Gland.html

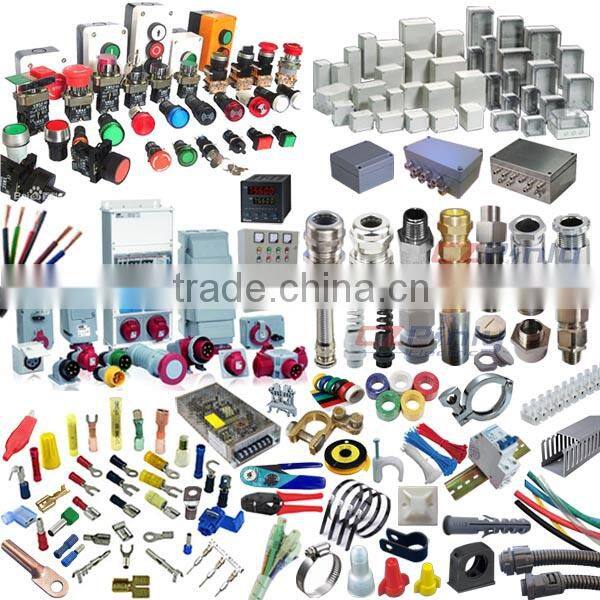

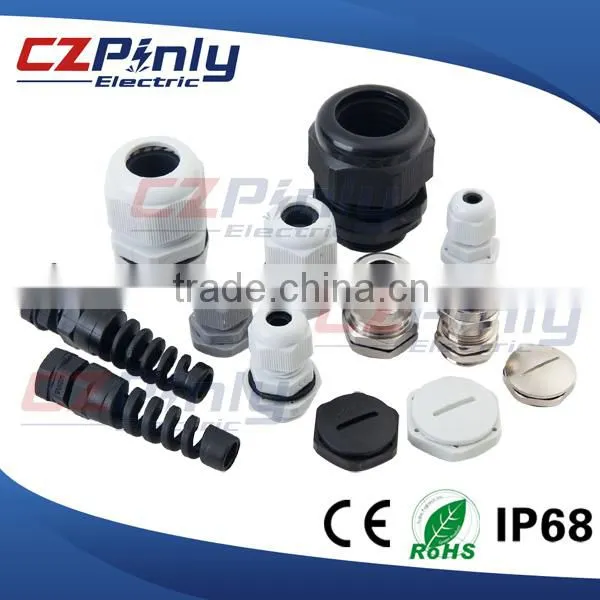

More Cable Accessories:
Q1:Are you a manufacturer or trading company?
A1:We are a manufacturer with professional R&D team, and providing OEM & ODM services.
Q2: Where is your factory located?

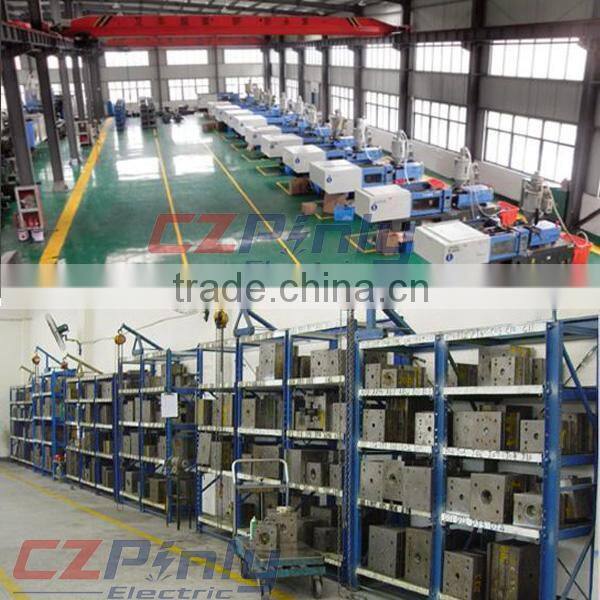

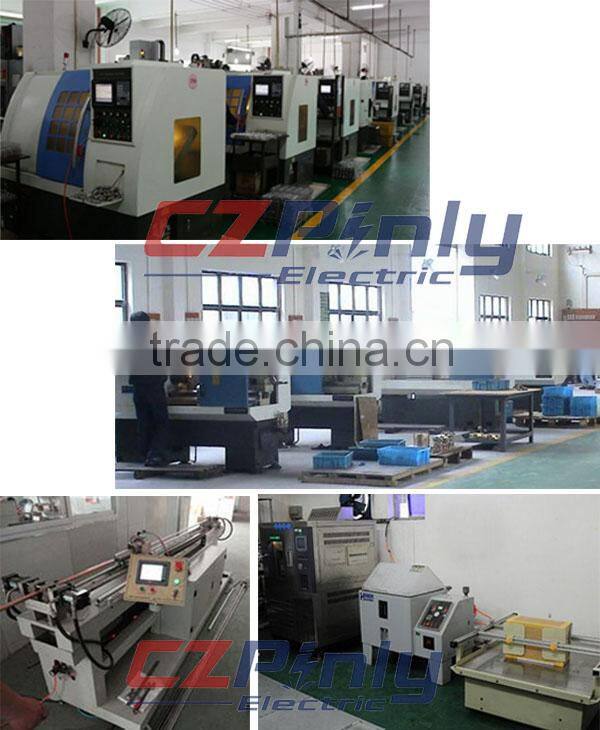

A2:Our factory located in "China Electric Capital" - Liushi town Yueqing City.Welcome to visit us.
Q3:Do you charge for samples and freight cost?
A3:In generally,samples will be FREE.Will take reasonable charge if the samples are high-cost
and will refund from official order,the freight will be bear by yourself or send via your account.
Q4:Are your products conforming to our standards?
A4:Yes,our products can pass the testings as your requires,such as CE,RoHS,IP68,IP54 etc.
Q5:How do you control the quality?
A5:Sample approval first,the goods will be made same as sample and strict compliance with
full QC systems,such as IQC,IPQC,FQC,OQC.
Q6:What's MOQ?
A6:We could accept small trial orders.
Q7:Can you give us a favorable discount?
A7:Of course,a favorable discount will be offered if the quantity is sizable.
Q8:How do you ship the goods and how long does it take?
A8:For small order usually ship by UPS,FEDEX,TNT,DHL,TOLL,EMS etc.It usually takes 5-7
days to arrive.For big order,will take around 20-35 days by sea,5-10 days by air.
Q9: What is your payments?
A9: T/T,Trade Assurance,Paypal,Western Union,Escrow,Cash can be accepted.
Q10: How does the Trade Assurance work?
A10: We can accept an order which the total amount above $3000 by Trade Assurance,
you could place the order online and pay the deposit to alibaba to assure the delivery
time, quality,and mutual trust.
