Types Of PG Cable Gland
Material:Locknut / Body / Nut are made of Nylon;Seal and O-ring are made of NBR/EPDM;
OEM:Wire range / Multi-hole / Thread Length / Material are available.

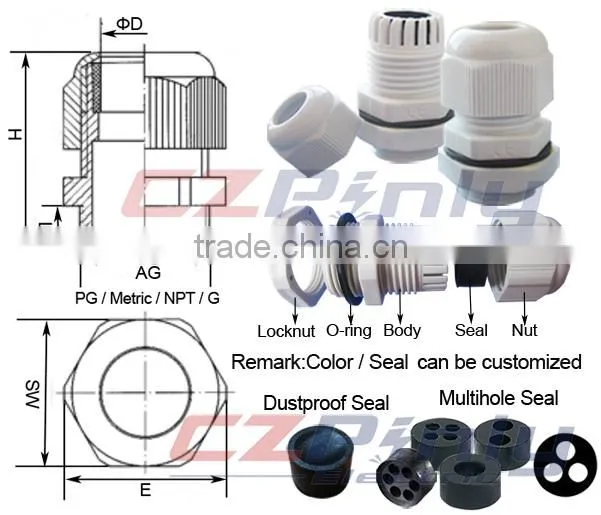

PG / Metric Series Cable Gland Technical Parameters:
If you need MG / NPT series spec or other cable range, please feel free to contact us.
such as PG7 have 3-6.5mm and 2-5mm wire range,PG9 have 4-8mm and 2-6mm wire range etc.
| Thread Size | Cable Range | Thread Length | Thread O.D | SW | E | Overall Height |
| ΦD (mm) | L (mm) | AG (mm) | mm | mm | H (mm) | |
| PG7 | 3-6.5 | 8 | 12.5 | 17.8 | 19.5 | 30 |
| PG9 | 4-8 | 9 | 15.2 | 22 | 24 | 33 |
| PG11 | 5-10 | 9 | 18.6 | 24 | 26 | 35 |
| PG13.5 | 6-12 | 9 | 20.4 | 26.5 | 29 | 38 |
| PG16 | 10-14 | 10 | 22.5 | 29.5 | 33 | 40 |
| PG19 | 12-15 | 10 | 23.8 | 30 | 33 | 42 |
| PG21 | 13-18 | 11 | 28.3 | 36 | 39 | 45 |
| PG25 | 16-21 | 12 | 30 | 37 | 41 | 48 |
| PG29 | 18-25 | 12 | 37 | 45 | 49.5 | 55 |
| PG36 | 22-32 | 15 | 47 | 58 | 65 | 62 |
| PG42 | 32-38 | 18 | 54 | 65 | 72 | 73 |
| PG48 | 37-44 | 18 | 59.3 | 70 | 78 | 76 |
| PG63 | 42-50 | 29 | 71 | 83 | 93 | 86 |
| M12 × 1.5 | 3-6.5 | 8 | 12 | 17.8 | 19.5 | 30 |
| M16 × 1.5 | 4-8 | 9 | 16 | 22 | 24 | 33 |
| M18 × 1.5 | 5-10 | 9 | 18 | 24 | 26 | 35 |
| M20 × 1.5 | 6-12 | 9 | 20 | 27 | 29 | 38 |
| M22 × 1.5 | 10-13 | 10 | 22 | 30 | 33 | 40 |
| M25 × 1.5 | 12-15 | 10 | 25 | 33 | 36 | 42 |
| M25 × 1.5 | 13-18 | 12 | 25 | 33 | 36 | 46 |
| M27 × 1.5 | 13-18 | 12 | 27 | 35 | 38 | 46 |
| M30 × 1.5 | 16-21 | 12 | 30 | 37 | 40 | 47 |
| M32 × 1.5 | 16-21 | 12 | 32 | 39 | 43 | 48 |
| M36× 1.5 | 18-25 | 12 | 36 | 44 | 49 | 54 |
| M40 × 1.5 | 22-32 | 16 | 40 | 52 | 58 | 62 |
| M50 × 1.5 | 32-38 | 18 | 50 | 60 | 67 | 70 |
| M63 × 1.5 | 37-44 | 18 | 63 | 74 | 83 | 76 |
| Packaging: | (1)Standard packing:100/50/20/10pcs per bag+ Poly bag+ Neutral label +Strong carton; |
| (2)Customized packing:OEM label, inner box,etc. | |
| Transportation: | (1)Big order by sea/air,small order by express(Fedex,UPS,TNT,DHL,Aramex,EMS,Toll) |
| (2)We are a VIP of courier company and can offer the economic freight for you. |

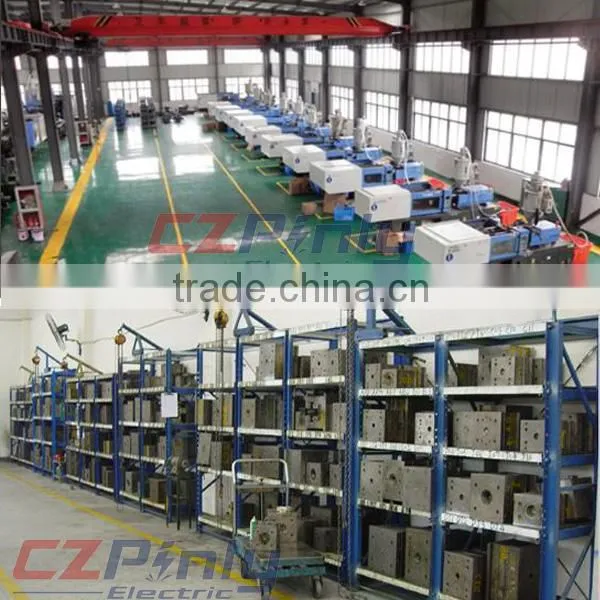

Injection Molding Machine
If you need cable glands catalogue,pls click the below picture.
Cable Gland Catalogue Link:
https://img13.fr-trading.com/productgrouplist-801957846/Metal_Cable_Gland.html

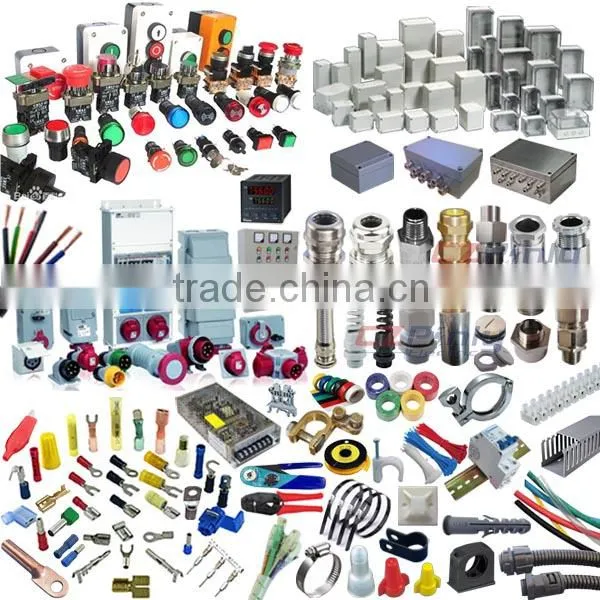

More Cable Accessories:
Q1:Are you a manufacturer or trading company?
A1:We are a manufacturer with professional R&D team, and providing OEM & ODM services.
Q2: Where is your factory located?
A2:Our factory located in "China Electric Capital" - Liushi town Yueqing City.Welcome to visit us.
Q3:Do you charge for samples and freight cost?
A3:In generally,samples will be FREE.Will take reasonable charge if the samples are high-cost
and will refund from official order,the freight will be bear by yourself or send via your account.
Q4:Are your products conforming to our standards?
A4:Yes,our products can pass the testings as your requires,such as CE,RoHS,IP68,IP54 etc.
Q5:How do you control the quality?
A5:We control the product quality by IQC,100% testing before packaging.
Q6:What's MOQ?
A6:We could accept small trial orders.
Q7:Can you give us a favorable discount?
A7:Of course,a favorable discount will be offered if the quantity is sizable.
Q8:How do you ship the goods and how long does it take?
A8:For small order usually ship by UPS,FEDEX,TNT,DHL,TOLL,EMS etc.It usually takes 5-7
days to arrive.For big order,will take around 20-35 days by sea,5-10 days by air.
Q9: What is your payment?
A9: T/T,Trade Assurance,Paypal,Western Union,Escrow,Cash can be accepted.
Q10: How does the Trade Assurance work?
A10: We can accept an order which the total amount above $3000 by Trade Assurance,
you could place the order online and pay the deposit to alibaba to assure the delivery
time, quality,and mutual trust.
