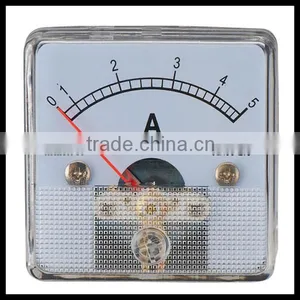

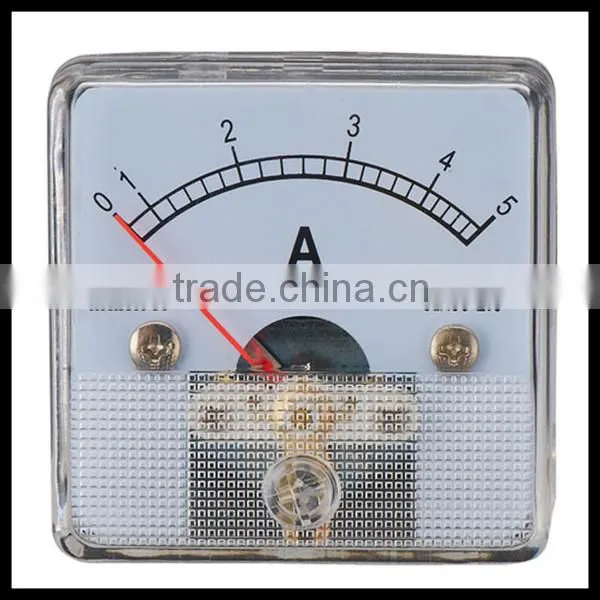

Moving Coil DE-50 Analog Panel Ammeter
Negotiable
/ Piece
50 Pieces(Min.Order)
- 30000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Maxwel | |
| Model Number | DE | Display Type | Analog Only | |
| Measuring Range | 0~50A | Accuracy Class | 2.5 | |
| Operating Temperature | -25℃~40℃ | Dimensions | 50x52mm |
Product Description
Specifications
1. Analog Panel Ammeter2. Used with transformer
3. Various types for selection
4. Good quality
5. Competitive price
Moving Coil DE-50 Analog Panel Ammeter
Struction: Moving Coil, Moving Iron and Rectifier
Class: 2.0, 2.5
| Name | Specification | Remarks |
| DC Ammeter | 30-1000μA, 1-1000mA, 1-50A 1K-0KA | Direct connection with Ext. Shunt |
| DC Voltmeter | 40-1000mV, 1-1000V 1K-10KA | Direct connection with Ext. Resistor |
| AC Ammeter | 1-1000mA, 1-50A 5-1000A, 1K-10KA | Direct connection with Ext. CT |
| AC Voltmeter | 40-1000mA, 1-1000V 1K-380KV | Direct connection with Ext. CT |
| Frequency Meter | 50-380V 44-55Hz, 45-65Hz, 55-65Hz |
| Model | Unit | A | B | C | D | E | F | G | H | M | For Hole |
| DE-50 | mm | 50 | 52 | 23.5 | 13.5 | 4.4 | 12.5 | 45 | 19 | 3 | 46 |
| DE-60 | mm | 60 | 60 | 24 | 11 | 9.5 | 11 | 52 | 24 | 3 | 53 |
| DE-670 | mm | 60 | 70 | 23 | 10 | 11 | 12 | 52 | 24 | 3 | 53 |
| DE-80 | mm | 81 | 81 | 22 | 12 | 18.5 | 13.5 | 63.5 | 32.5 | 3 | 65 |
