Round Type Analog Panel Ammeter
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Maxwel
Model Number:
DE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Moving Coil Instruments Analog Panel MeterNegotiableMOQ: 50 Pieces -
Hot Sale Analog Panel Meter DC Ammeter Used With TransformerNegotiableMOQ: 50 Pieces
-
High Quality AC Current Meter Analog AmmeterNegotiableMOQ: 50 Pieces
-
48 x 48 Analog Panel AmmeterNegotiableMOQ: 50 Pieces
-
72 x 72 Analog Panel MeterNegotiableMOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
Maxwel
Model Number
DE
Display Type
Analog Only
Measuring Range
0~50A
Accuracy Class
2.5
Operating Temperature
-25℃~40℃
Dimensions
90x90mm
Specifications
1. Round Analog Panel Ammeter2. Used with transformer
3. Various types for selection
4. Good quality
5. Competitive price

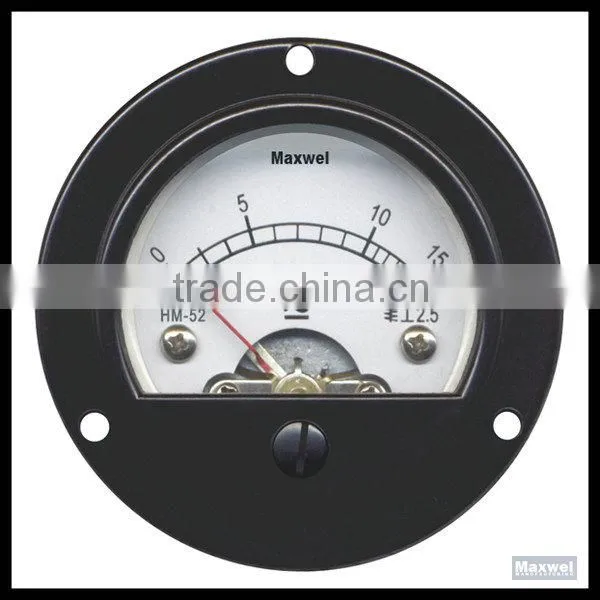

Round type Analog Panel Ammeter
| Name | Specifications | Remarks |
| DC Ammeter |
30-1000μA, 1-1000mA, 1-50A 1K-10KA |
Direct connection with Ext. Shunt |
| DC Voltmeter |
40-1000mV, 1-1000V 1K-10KA |
Direct connection with Ext. Resistor |
| AC Ammeter |
1-1000mA, 1-50A 5-1000A, 1K-10KA |
Direct connection with Ext. CT |
| AC Voltmeter |
40-1000mA, 1-1000V 1K-380KV |
Direct connection with Ext. CT |

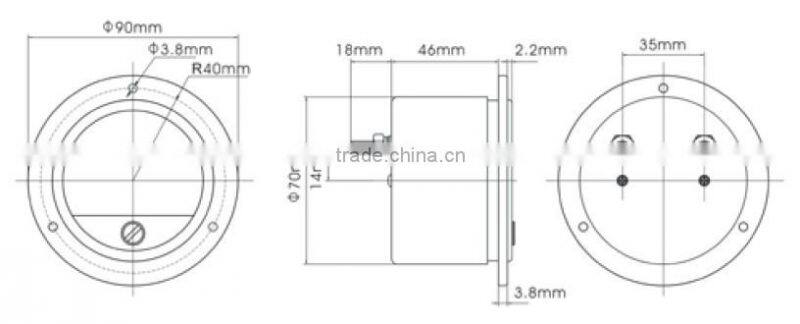

| Model | Unit | A | B | C | D | E | F | G |
| DE-52 | mm | 58 | 66.5 | 4.5 | 26 | 40.5 | 52 | 39 |
| DE-65 | mm | 73.5 | 83.5 | 4.5 | 31 | 42 | 65 | 39 |
| DE-62T2 | mm | 75 | 90 | 8 | 45 | 65 | 70 | 35 |
