Help Center25mm Plastic Heat Shrinkable Tube With 100 Meters Each Roll
Related Products

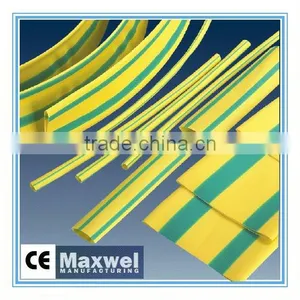

25mm plastic heat shrinkable tube with 100 meters each roll
1. Yellow and Green Heat Shrinkable Tube is universally applied to insulated protection of wire connector and termin
2. Yellow and Green Heat Shrinkable Tube
Features:
- Shrink ratio: 2: 1
- Operating temperature: -55 to 125 degree
- Minimum fully recovery temperature: 110degree
- Longitudinal shrinkage≤ 5%
- Soft, Flammability, Environmental protection
- The specification range from 1.0mm to 180mm, special specification is accepted.
- Easy to operate, shrinking with the drying oven and the hot air gun
- Standard color: Yellow and green Interaction
Size |
Dimension before shrinking (mm) |
Dimension after shrinking (mm) |
Application (mm) |
|||
|
Internal diameter |
Wall thickness |
Max internal diameter |
Wall thickness |
Standard package (m/disc) |
||
Φ2.0 |
2.4±0.3 |
0.25±0.05 |
0.9±0.1 |
0.35±0.05 |
200 |
1.1-1.8 |
Φ3.0 |
3.4±0.4 |
0.25±0.05 |
1.4±0.1 |
0.40±0.05 |
200 |
1.6-2.7 |
Φ4.0 |
4.5±0.4 |
0.25±0.05 |
1.8±0.1 |
0.45±0.05 |
200 |
2.1-3.6 |
Φ5.0 |
5.4±0.4 |
0.25±0.05 |
2.3±0.1 |
0.55±0.15 |
100 |
2.6-4.5 |
Φ6.0 |
6.4±0.4 |
0.28±0.15 |
2.8±0.2 |
0.55±0.15 |
100 |
3.1-5.4 |
Φ7.0 |
7.4±0.4 |
0.28±0.15 |
3.3±0.2 |
0.55±0.15 |
100 |
3.7-6.3 |
Φ8.0 |
8.4±0.5 |
0.28±0.15 |
3.8±0.2 |
0.55±0.15 |
100 |
4.2-7.2 |
Note: cause format reason, can not insert all the data sheet specification, so pls ask me for whole data sheet if you are interested, thanks
 |
|
