Specifications
1.Size 2.0mm-180mm2.PVC material
3.Green&Yellow & any colour
4.-55 to 125 degree operating temperature

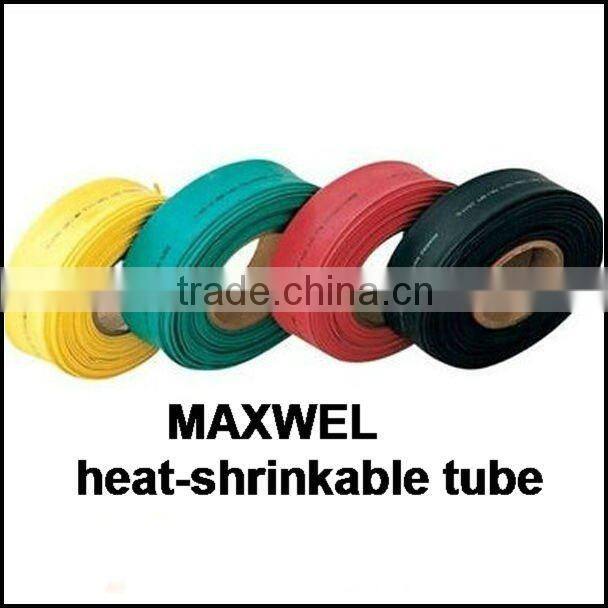

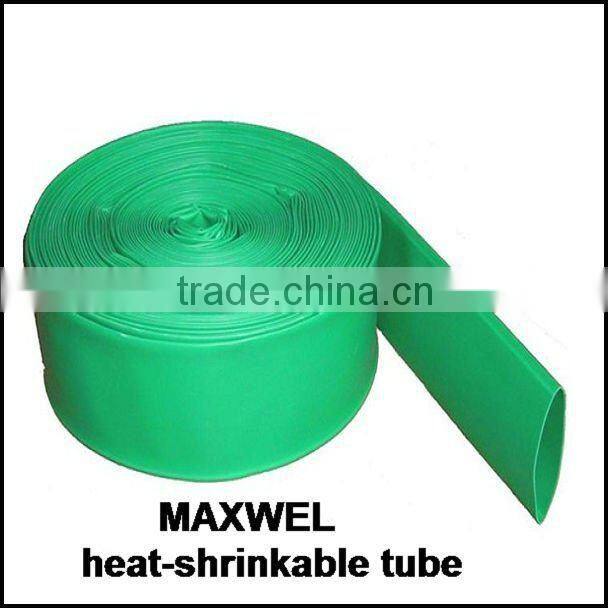

Heat-shrinkable tube VC-2
1. Yellow and Green Heat Shrinkable Tube is universally applied to insulated protection of wire connector and termin
2. Yellow and Green Heat Shrinkable Tube
Features:
- Shrink ratio: 2: 1
- Operating temperature: -55 to 125 degree
- Minimum fully recovery temperature: 110degree
- Longitudinal shrinkage≤ 5%
- Soft, Flammability, Environmental protection
- The specification range from 1.0mm to 180mm, special specification is accepted.
- Easy to operate, shrinking with the drying oven and the hot air gun
- Standard color: Yellow and green Interaction
Size | Dimension before shrinking (mm) | Dimension after shrinking (mm) | Application (mm) | |||
Internal diameter |
Wall thickness |
Max internal diameter |
Wall thickness | Standard package (m/disc) | ||
Φ2.0 | 2.4±0.3 | 0.25±0.05 | 0.9±0.1 | 0.35±0.05 | 200 | 1.1-1.8 |
Φ3.0 | 3.4±0.4 | 0.25±0.05 | 1.4±0.1 | 0.40±0.05 | 200 | 1.6-2.7 |
Φ4.0 | 4.5±0.4 | 0.25±0.05 | 1.8±0.1 | 0.45±0.05 | 200 | 2.1-3.6 |
Φ5.0 | 5.4±0.4 | 0.25±0.05 | 2.3±0.1 | 0.55±0.15 | 100 | 2.6-4.5 |
Φ6.0 | 6.4±0.4 | 0.28±0.15 | 2.8±0.2 | 0.55±0.15 | 100 | 3.1-5.4 |
Φ7.0 | 7.4±0.4 | 0.28±0.15 | 3.3±0.2 | 0.55±0.15 | 100 | 3.7-6.3 |
Φ8.0 | 8.4±0.5 | 0.28±0.15 | 3.8±0.2 | 0.55±0.15 | 100 | 4.2-7.2 |
Note: cause format reason, can not insert all the data sheet specification, so pls ask me for whole data sheet if you are interested, thanks
| |
