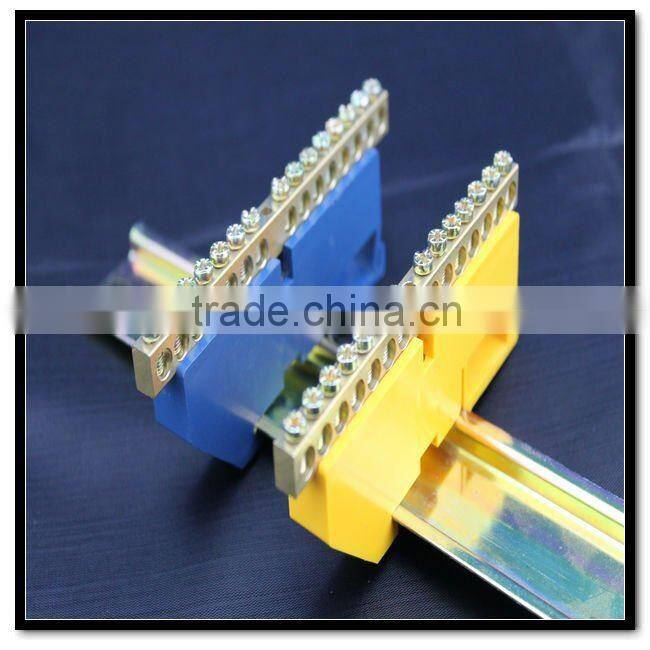

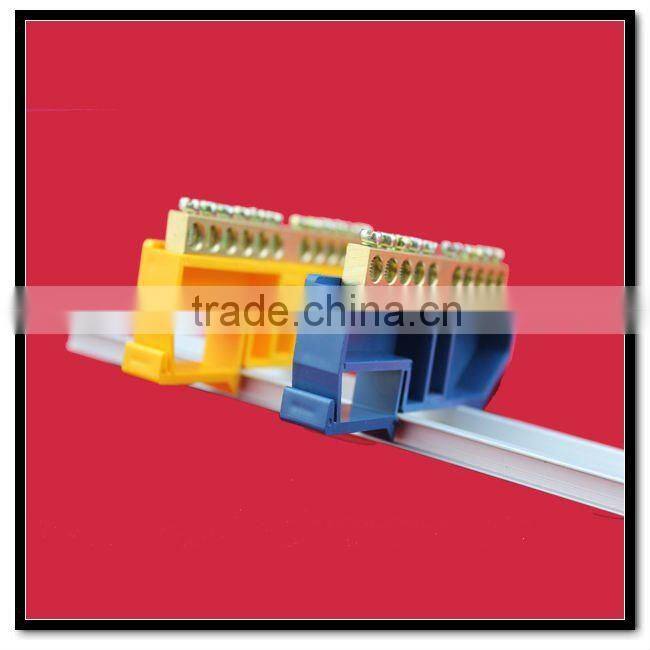

Din-rail Terminal 8p

Specifications

Insulated terminal block
Made from brass and nylon insulated base
Voltage:250V - 450V
Stable quality
Competitive price

PA ,Polyamide 66,94-2 grade .Inflaming retarding,Working termpertaure:-30°C to 110°C

PE,Polypropylene,Inflaming retarding,low transparency,low rigidity,goog bounce impact force,Working     termpertaure:-30°C to 100°C.

ABS, good resist dissolve ,good bounce impact fore,Working termpertaure:-20°C to 100°C.

Brass.Scews is iron plated zinc

Voltage:250 to 450V

Color: according to sample pictures or customized.







OEM Service Offered,Buyer Label Offered , we can offer samples or the drawings to  process production according to the customer, supply different size,such as ,different  length ,width,hole diameter.
Please send your drawings,requirements or specifications.

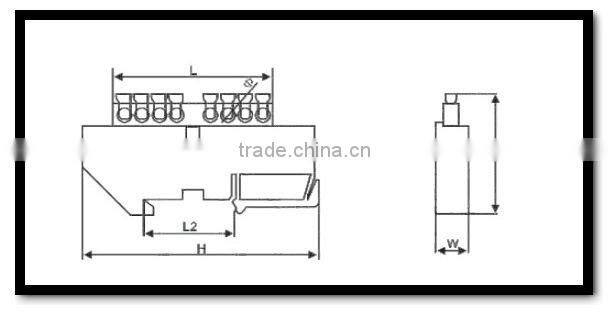

Item NO.	Spec.	L	L1	l2	H	W	Φ	Screw Size	Plastic Setting
	W×H	mm
BC-003-8P	6×9	60	90	35	43	12	5.2	M4×7	PA,ABS
BC-003-10P	6×9	73	90	35	43	12	5.2	M4×7	PA,ABS
BC-003-12P	6×9	86	90	35	43	12	5.2	M4×7	PA,ABS
BC-003-14P	6×9	99	90	35	43	12	5.2	M4×7	PA,ABS
BC-003-16P	6×9	112	90	35	43	12	5.2	M4×7	PA,ABS
