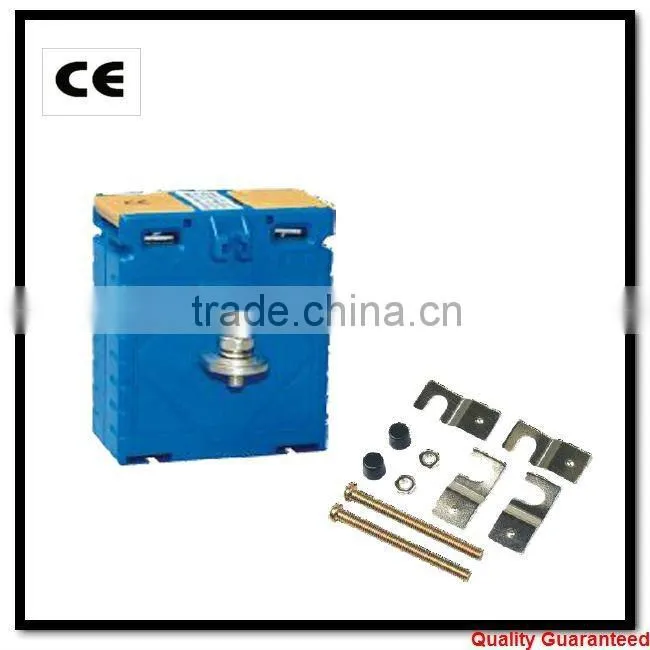

Small Current Transformer
US$ 10 - 60
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MAXWEL
Model Number:
MES-62/B
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
MAXWEL
Model Number
MES-62/B
Usage
Current
Phase
Three
Coil Structure
Toroidal
Coil Number
Autotransformer
Specifications
Primary current 5A-3000ASecondary current 5A 1A
Class 0.5/1.0
-10 degree to 50 degree
Competitive price
MES current transformer series:
- The MES series of current transfomer are convenient for mounting in many ways.
- The most current transformer need the special mounting and the EMS series used the mounting of DIN typing without a lot of time.
- The protective cover for the terminal block used the switching device with safety and quick
MES tecnicial specifications:
Primary current: 5A-3000A
Secondary current: 5A/1A
Standard approval: IEC44-1/BS7626/VDE0414
Maximum voltage: 0.72/3kv
Frequency: 50/60hz
Rated load: 2.5VA/5VA/10VA/15VA
Class: 0.5/1.0
Short-time thermal current: ith=60*Ih
Rated security coefficient Fs<5
Model |
Nominal current ratio |
Burden VA |
|
Class 0.5 |
Class 1 |
||
MES-62/B |
5/5 |
1.5 |
2.5 |
| MES-62/B | 10/5 |
1.5 |
2.5 |
| MES-62/B | 15/5 |
1.5 |
2.5 |
| MES-62/B | 20/5 |
1.5 |
2.5 |
| MES-62/B | 25/5 |
1.5 |
2.5 |
| MES-62/B | 30/5 |
1.5 |
2.5 |
| MES-62/B | 40/5 |
1.5 |
2.5 |
| MES-62/B | 50/5 |
1.5 |
2.5 |
| MES-62/B | 60/5 |
1.5 |
2.5 |
| MES-62/B | 75/5 |
1.5 |
2.5 |
| MES-62/B | 100/5 |
1.5 |
2.5 |
| MES-62/B | 150/5 |
1.5 |
2.5 |
