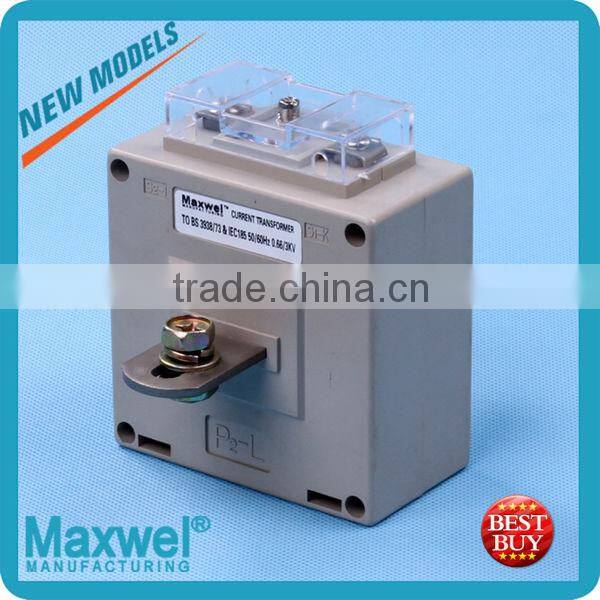

MSQ Current Transformer( Moulded Case Current Transformer)

MSQ Current Transformer( Moulded Case Current Transformer) thumbnail-1
MSQ Current Transformer( Moulded Case Current Transformer) photo-1
US$ 1.2 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Maxwel
Model Number:
MSQ
Contact Supplier Request Quote Chat Now
Yueqing Maxwel Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Maxwel
Model Number MSQ
Usage Current
Phase Single

Specifications

MSQ current transformers
VDE 0414, BS7626 and IEC 44-1 Standards,
Quality warranty!

Key Specifications/Special Features of MSQ current transformers:

  • Can be applied to test, control display and record the running of the electrical equipment
  • Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
  • Can also be applied to form complete set of mine transformer
  • Comply with VDE 0414, BS7626 and IEC 44-1 standards
  • Sell very well in Greece,Italy,Russian,South African,Egypt etc.



SPECIFICAIONS
Rated Frequency                                          50/60Hz
Rated test voltage                                         3kV AC. (1 min)
Rated short-time thermal current(Ith)            60In
Rated dynamic current, (Idyn)                        2.5Ith
Rated voltage,(Um)                                         0.72Kv AC.
Continuous overload,(Id)                                 1.2In
Operating temperature                                     -10C~50C
Housing self-extinguishing class                      VO
Safety factor                                                      FS 5
Secondary current                                           5A/1A



Type

Rated
current
(A)

Rated power (VA)

Weight
(kg)

Class:0.5

Class:1

MSQ-30B

5/5
10/5
15/5
20/5
25/5
30/5
40/5
50/5
60/5
75/5
80/5
100/5
120/5
125/5
150/5
200/5
250/5

5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10

5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10

0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60



Type

Rated
current
(A)

Rated power (VA)

Weight
(kg)

Class:0.5

Class:1

MSQ-30T

100/5
125/5
150/5
160/5
200/5
250/5

2.5-5
3-5
5-10
5-10
5-10
5-10

5
5-10
5-10
5-10
5-10
5-10

0,62
0,62
0,62
0,62
0,62
0,62

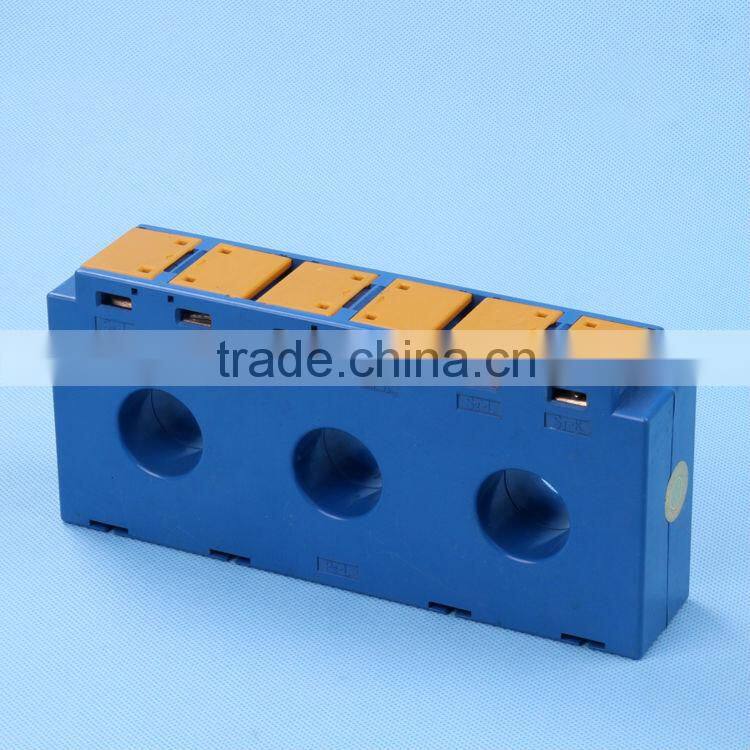

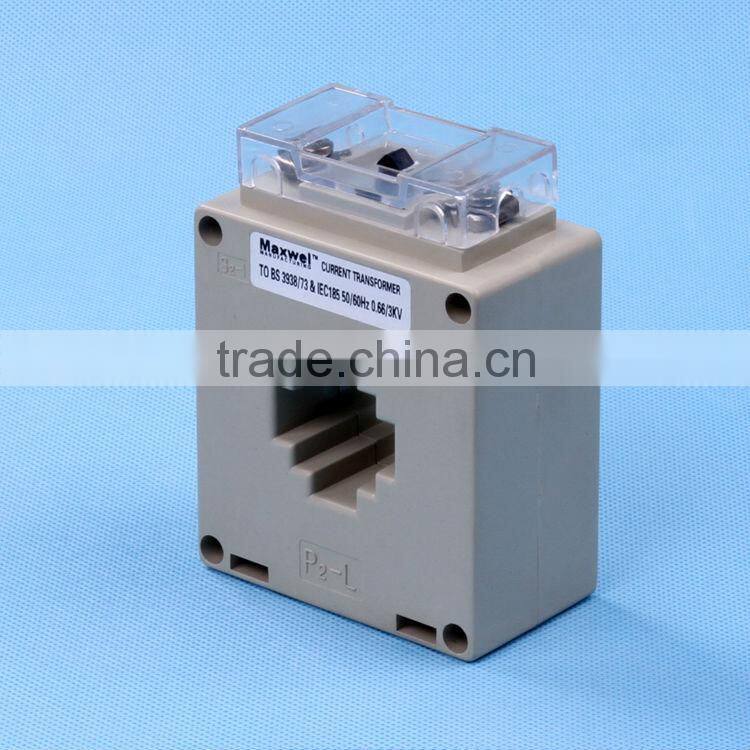

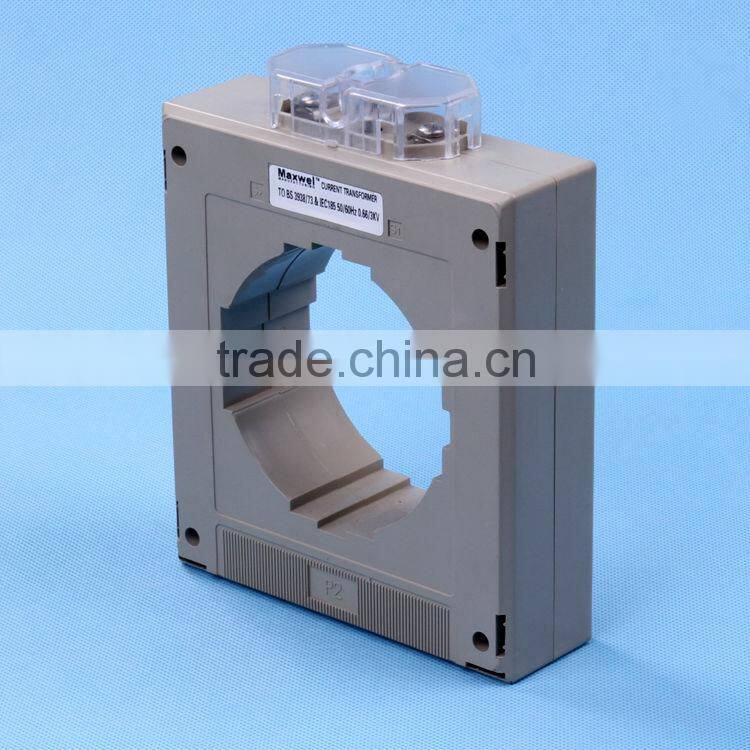

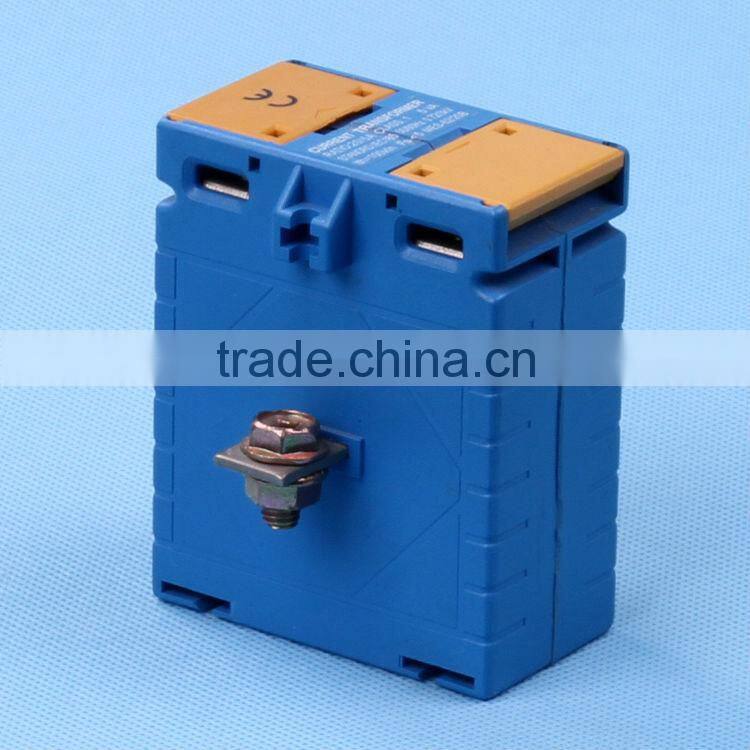

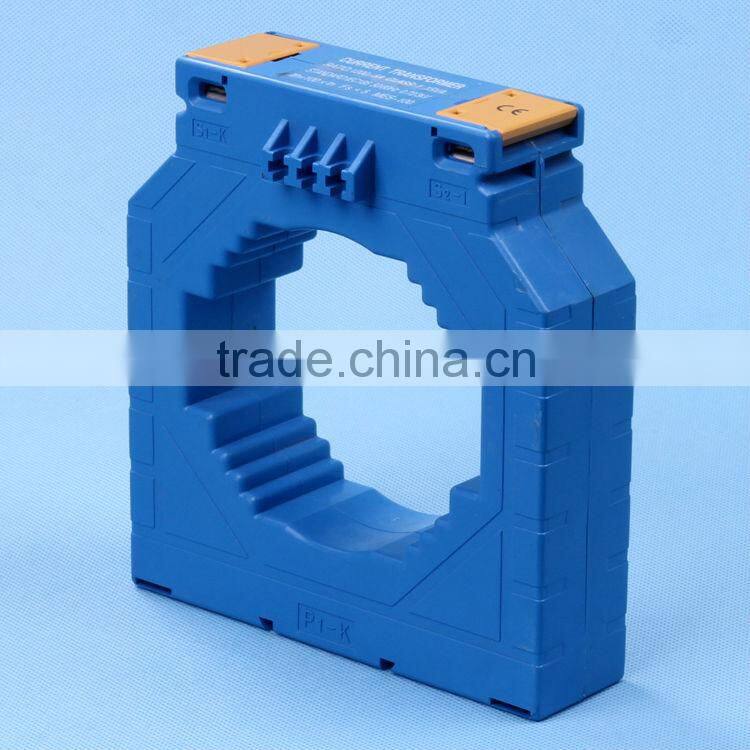

For more information, please contact us today!MSQ current transformer( Moulded case current transformer)MSQ current transformer( Moulded case current transformer)MSQ current transformer( Moulded case current transformer)MSQ current transformer( Moulded case current transformer)MSQ current transformer( Moulded case current transformer)MSQ current transformer( Moulded case current transformer)
