Low Voltage Three Phase Shunt Capacitor

Specifications

1. Three phase shunt capacitor
2. Zn-Al complexed metallized film
3. Three Phase, Indoor Use
4. IEC831-1(1996) Standard

Low voltage three phase shunt capacitor



Our self-healing type low voltage shunt capacitor, applied the advanced Zn-Al complexed metallized film, adopted foreign advanced production techology techniques and international IEC831-1(1996) Standards.The products are mainly suitable for low voltage electric
network to improve power factor, reduce reactive loss, and improve the voltage quality.



Service condition:

Use indoor
Temperature range: -25°C~50°C
RH(humidity: less then85%RH)
Altitude: lower than 2000m
Mounting Ambient: no harmless gas and steamed gas.no inductive and explosive dust,no violent vibration;



Datasheet of capacitor

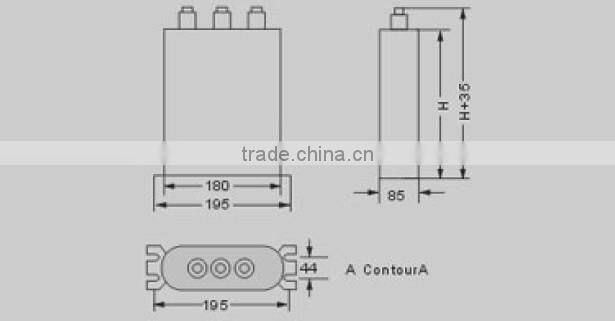

Models	NO minal voltage(KV)	Nominal capacity(kval)	Capacitance(UF)	Nominal current(A)	L	W	W	Contour  Andreight(mm)
BSMJ0.4-5-3	0.4(50Hz)	5	9	7.2	170	57	110	85×40
BSMJ0.4-7.5-3		7.5	149	10.8	170	57	130	185×40
BSMJ0.4-10-3		10	199	14.4	170	57	180	185×40
BSMJ0.4-12-3		12	239	17.3	170	57	180	185×40
BSMJ0.4-14-3		14	278	20.2	170	57	210	185×40
BSMJ0.4-15-3		15	298	21.7	170	57	210	185×40
BSMJ0.4-16-3		16	318	23.0	170	57	210	185×40
BSMJ0.4-18-3		18	358	26.3	170	57	240	185×40
BSMJ0.4-20-3		20	398	28.9	170	57	240	185×40
BSMJ0.4-25-3		25	498	36.0	170	85	210	200×60
BSMJ0.4-30-3		30	598	43.3	170	85	250	200×60
BSMJ0.4-40-3		40	796	57.7	270	120	210	285×85
BSMJ0.4-50-3		50	995	72.2	270	120	230	285×85
