Specifications
EPS foam sheet extruder1.sheet width:640-1040mm
2.sheet thickness:1-3.5mm
3.output:100-180kg/h
4.material:

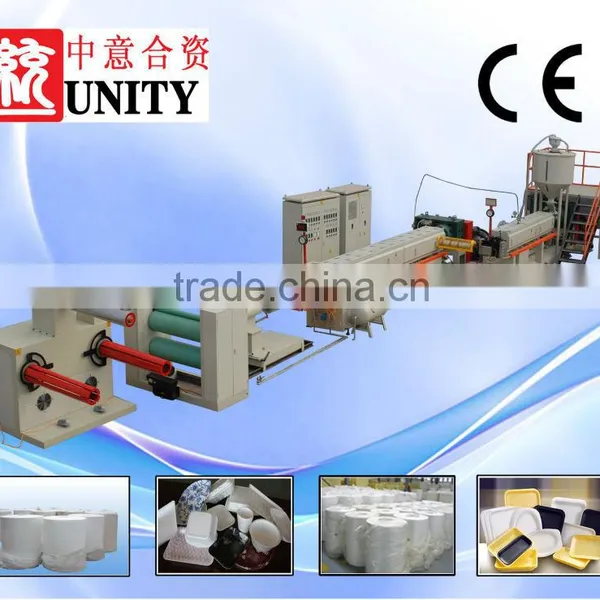

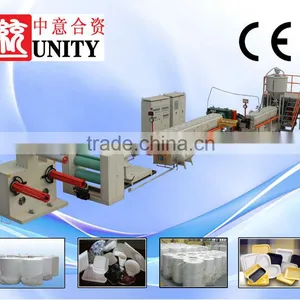

TYPSP-90/120 EPS foam sheet extruder
(1)PS foam sheet extrusion line (TYPSP100-130)

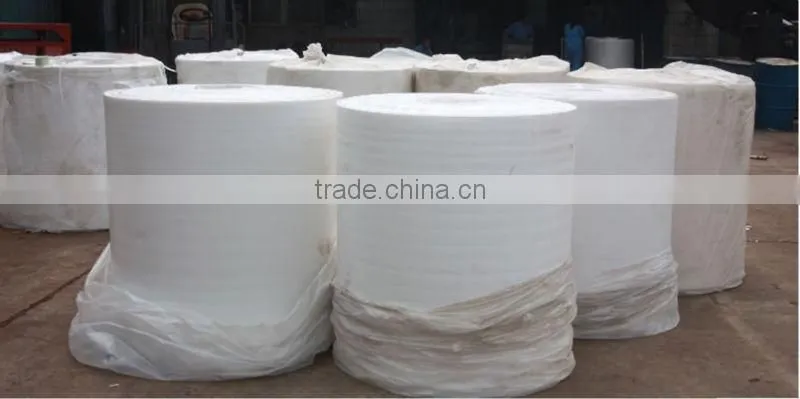

It is a new-type material with the features of shockproof, sound insulation, heat preservation, dampproof, safety, sanitation and good plasticity. It is used widely in the packing of food, fruit, electronic product, commodity, daily necessities, hardware product, advertisement board, etc.

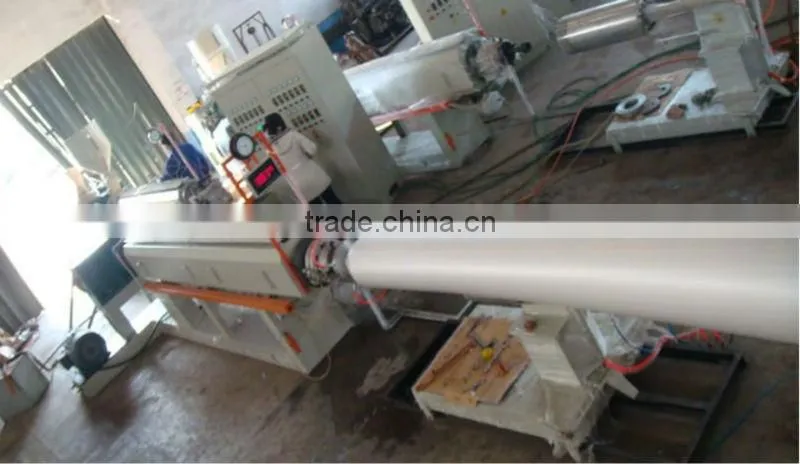

PS foam sheet extrusion line adopts double-stage series high foam technology.The raw material is general polystyrene granule. In the extruding process,vesicant is injected at high pressure.After extruding,foaming,cooling,shaping and hauling off,it is winding to finished ps foam sheet rolls,
Main Technical parameters:
Model |
Unit |
TY-PSP70/90 |
TY-PSP90/120 |
TY-PSP100/130 |
TY-PSP120/150 |
Extruder |
|
70/90 |
90/120 |
100/130 |
120/150 |
Foam rate |
|
10-20 |
10-20 |
10-20 |
10-20 |
Width of product |
mm |
640-1040 |
640-1040 |
640-1040 |
640-1200 |
Cutting method |
|
Single cutter |
Double cutter |
||
Thickness of product |
mm |
1.0-3.0 |
1.0-3.5 |
1.0-3.5 |
2.0-5.0 |
Cooling method |
|
Cooled by wind and water |
|||
Output |
kg/h |
50-90 |
100-180 |
180-230 |
230-320 |
Installed power |
kw |
120 |
150 |
180 |
260 |
Dimensions(L×W×H) |
m |
22×4.0×2.8 |
24×4.1×2.8 |
26×4.2×3 |
28×5.2×3.2 |
Total weight |
T |
10 |
12 |
15 |
18 |
