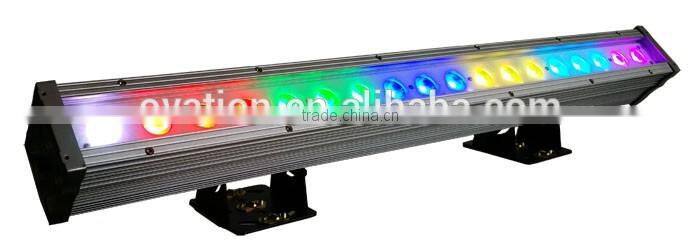

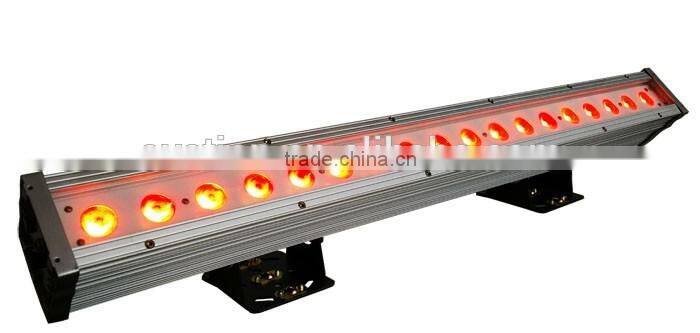

Help CenterKungfu 18 Matrix Bar 220W RGBW 4 IN 1 Leds AC100-240V 50/60Hz 25/40/60 Degree Optional DMX512 Stand Alone/Master-slave/Sound
Related Products
-
Golden Bar Matrix*3 IP20 200W 36*5W Warm White Pixel Control Led BarUS$ 301 - 310MOQ: 1 Piece -
Led Waterproof IP65 Die-cast Aluminium Bar 220W RGBW 4 in 1 Leds Linear Dimming Digital Screen Display DMX 512US$ 208 - 220MOQ: 1 Piece
-
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality ChoiceUS$ 200 - 220MOQ: 1 Piece
-
Led Bar 18*12w Rgbwa+uv Outdoor Wash LightUS$ 200 - 220MOQ: 1 Piece
-
Party Supply Magic Effect Led 18pcs 3in1 Bar Light Wash LightUS$ 1 - 88MOQ: 1 Piece
Model No:OV051M
Input Voltage:AC100-240V,50/60Hz
Power:220W
Light source:18*12W RGBW 4 in 1 Leds
Ambient temperature: -20℃+40℃
Dimming:0-100% linear dimming
Strobe:0-25 times/Second,flicker free
Control mode:DMX512/Master-slave/Sound
Channel:5/11CHs
Waterproof level:IP65
Size:1100*140*100MM
Weight:9.1KG
Channel instruction you can see from the following:
| 5 Channel mode | Function | Function Control |
| CH1 | Dimmer |
0: Shut 1-255:Dimming |
| CH2 | Red |
0: Shut 1-255:Dimming |
| CH3 | Green |
0: Shut 1-255:Dimming |
| CH4 | Blue |
0: Shut 1-255:Dimming |
| CH5 | White |
0: Shut 1-255:Dimming |
| 11 Channel Mode | Function | Function Control |
| CH1 | Dimmer | 0: Shut 1-255 Dimming |
| CH2 | Strobe | 0-19:Strobe shut 20-255:Strobe speed from slow to fast |
| CH3 | Red | 0:Shut 1-255:Dimming |
| CH4 | Green | 0:Shut 1-255:Dimming |
| CH5 | Blue | 0:Shut 1-255:Dimming |
| CH6 | White | 0:Shut 1-255:Dimming |
| CH7 | Speed | 0-255:from slow to fast |
| CH8 |
Effect macro 0-128:Should be used with color channel in the same time 129-255:Program auto mode |
0-13:No function 14-26:Program 27-40:Program 2 41-54:Program 3 … 111-128:Program 8 129-142:Program 9 … 231-255:Program 17 |
| CH9 | CT | 0-10:OFF 11-255:3000K-8000K |
| CH10 | Color mixing |
0-9:OFF 10-255:28 preset programs(program 1-4:R-W, program 5-13:Color temperature, program 14-26:static color, program 27:gradient color,program:jump change color) |
| CH11 | Color macro |
0-4:OFF … 5-255:Color macro |
Business Conditions & Terms:
1.Payment:T/T 30% in advance & balance paid before shipment,West Union
2.Sample request:Within 3 to 5 working days to prepare the samples
3.Lead time:7 to 15 working days for a big order
4.Shipping method:TNT,DHL,Fedex,UPS airmail for small order,for a bulk production order we will ship the goods to you by LCL/FCL by sea.
Service:
1.One year warranty
2.Your specific enquiry will be prompt replied as soon as possible
3.OEM/ODM service could be offered according to your quantity
If you are interested in our Led matrix bar for your landscape lighting decoration outdoor.
Please do not hesitate to keep in touch with us as the following
TradeManager:cn1501492591
Skype:ovationis05
WhatsApp:008618922428582
