Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice

Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice thumbnail-1
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice thumbnail-2
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice thumbnail-3
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice thumbnail-4
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice thumbnail-5
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice thumbnail-6
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice photo-1
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice photo-2
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice photo-3
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice photo-4
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice photo-5
Led Waterproof IP65 Wash Bar 18*12W Die-cast Aluminium Housing RGBWA+UV 6in1 Leds Linear Dimming DMX512 LCD Screen Display Quality Choice photo-6
US$ 200 - 220 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
LED Bar Lights
Input Voltage(V):
AC 100-240V 50-60Hz
Lamp Luminous Flux(lm):
3600
Contact Supplier Request Quote Chat Now
Ovation Lighting Factory (guangzhou)
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type LED Bar Lights
Input Voltage(V) AC 100-240V 50-60Hz
Lamp Luminous Flux(lm) 3600
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE, LVD
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name Ovation
Model Number KUNGFU 6

Led waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen display







KUNG FU 6

RGBWA+UV

18*12W 6 in 1 Leds waterproof IP65 Led bar

Size:(mm): L1100*W140*H100MM



Model No: OV051F

Power:220W

Ambient temperature:-20-50°

Light source:18*12W 6IN1 LEDs

Lifespan:50000 hours

Color:RGBWA+UV 6 in 1 Leds

Color temperature:7600K

Electronic dimming:0-100% linear dimming
Beam angle: 25°/40°/60°

Addressing and setting:control panel with digital display

IP rate:IP65

Control modes: DMX 512/Stand alone/Master-slave

DMX Channels:7/11 CHs

Mounting:Adjusted bracket,surface,truss mount

Orientation:Any

3-pin Waterproof power cable

3-pin XLR

N/W: 8.8KG

G/W: 9.5KG





Channel instruction:

7 Channel Model Function Function control
CH1 Dimmer

0: Shut

1-255:Dimming
CH2 Red

0:Shut

1-255:Dimming
CH3 Green

0:Shut

1-255:Dimming
CH4 Blue

0:Shut

1-255 Dimming
CH5 White

0:Shut

1-255 Dimming
CH6 Amber

0:Shut

1-255 Dimming
CH7 UV

0:Shut

1-255 Dimming



11 Channel Mode Function Function cotrol
CH1 Dimmer

0:Shut

1-255:Dimming
CH2 Strobe

0-19:Strobe Shut

20-255:Strobe speed from slow to fast
CH3 Red

0:Shut

1-255:Dimming
CH4 Green

0:Shut

1-255:Dimming
CH5 Blue

0:Shut

1-255:Dimming
CH6 White

0:Shut

1-255:Dimming
CH7 Amber

0:Shut

1-255:Dimming
CH8 UV

0:Shut

1-255:Dimming
CH9 CT

0-10:OFF

11-255:3000K-8000K
CH10 Color mixing

0-9:OFF

10-255:28 preset programs

(program 1-6:R-UV,program 7-13:color temperature,program14-26: static color, program27: gradient color, program28:jump change color
CH11 Color Macro

0-4:OFF

5-7:Orange

8-13:UV

14-19:Amber

129-255:Color Macro

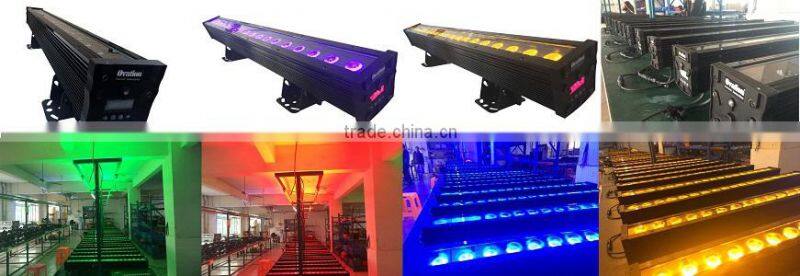

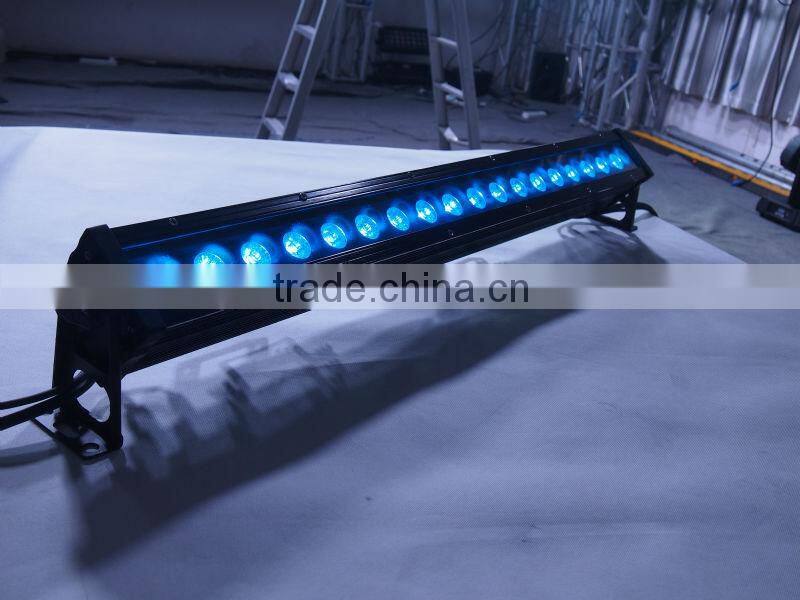

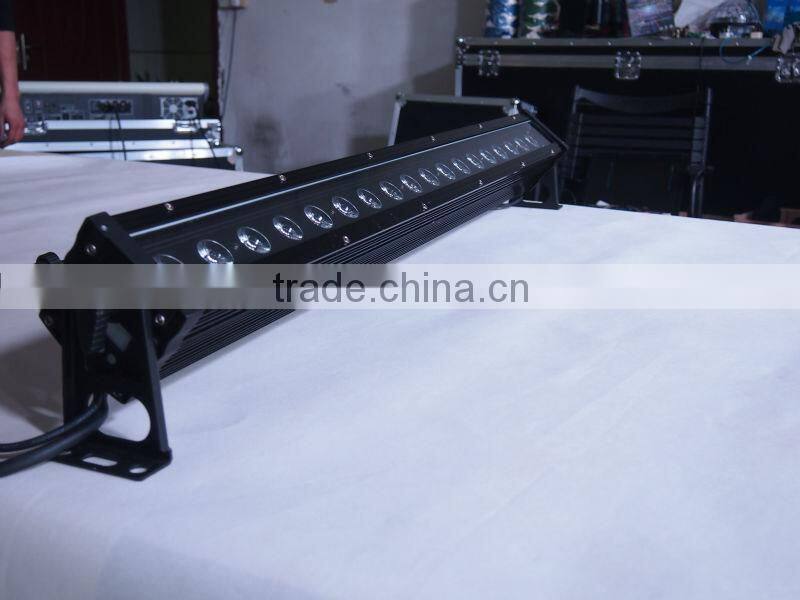

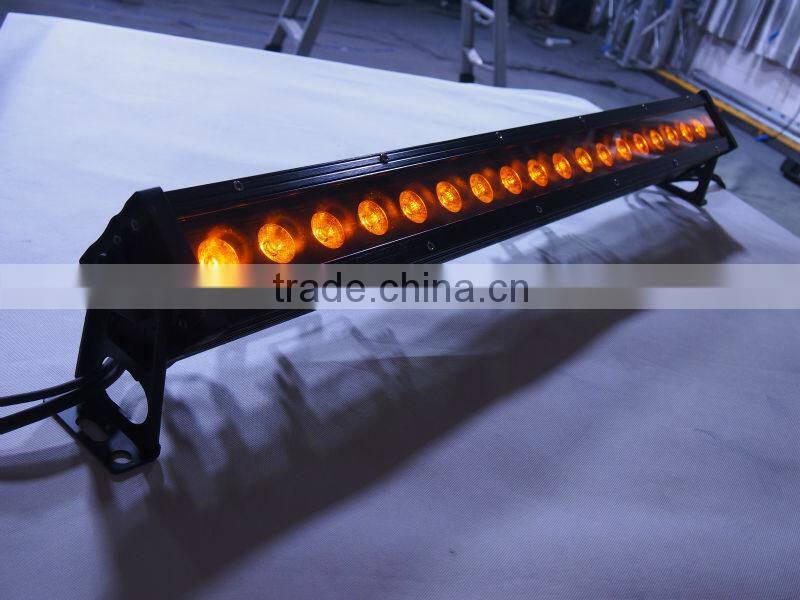

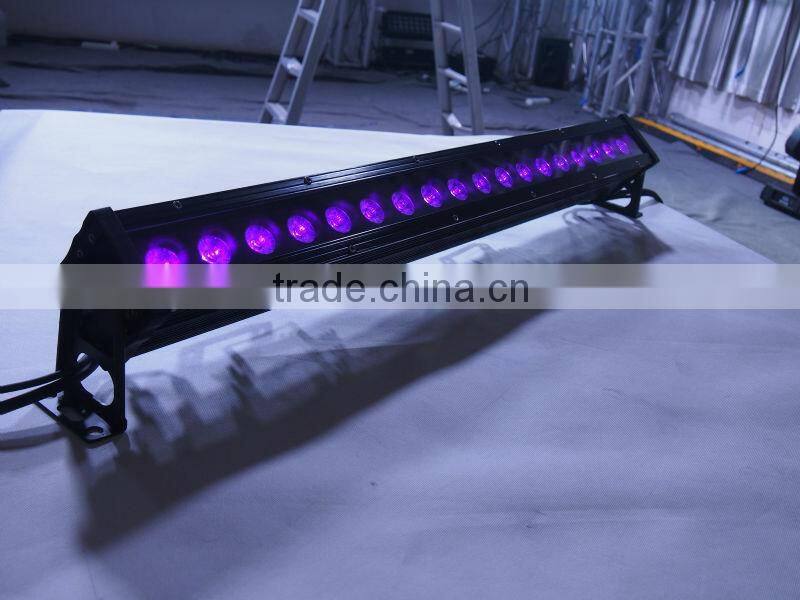

For more info about this Led waterproof bar lighting effects you can see from the following.

Led waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen display

Led waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen display





For more info about this waterproof Led bar is photometric chart you can see from the below.



Led waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen display

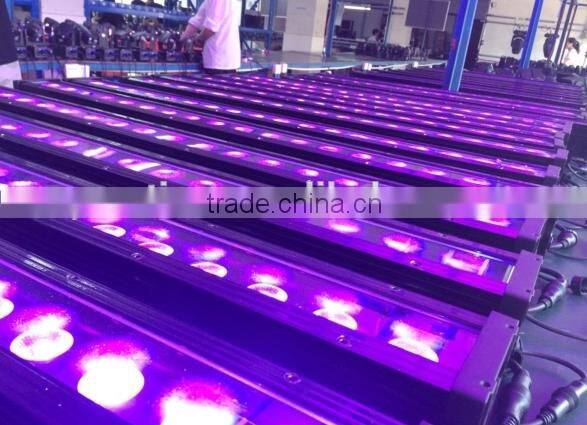

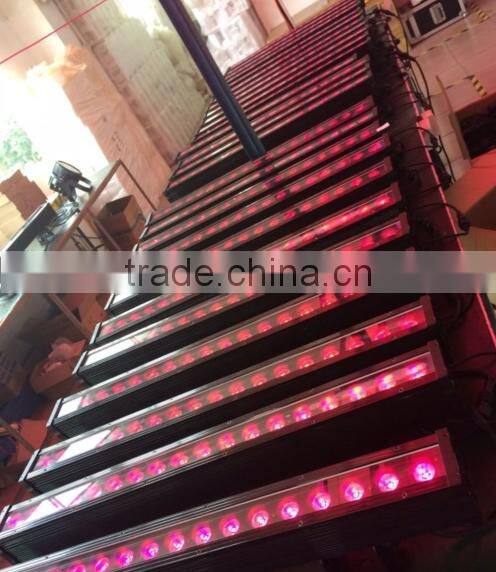

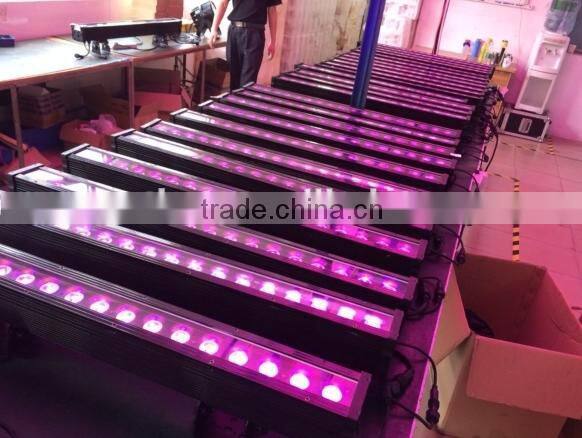

Illumination duration testing for the lighting effects before the goods is ready for shipment.



Led waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen displayLed waterproof IP65 wash bar 18*12W die-cast aluminium housing RGBWA+UV 6in1 Leds linear dimming DMX512 LCD screen display









Business conditions & Terms:







1.Payment:T/T 30% in advance & balance paid before shipment,West Union



2.Sample request:Within 3 to 5 working days to prepare the samples



3.Lead time:7 to 15 working days for a big order



4.Shipping method:TNT,Fedex,DHL,UPS for small order,for a bulk production order we will ship the goods to you through LCL or FCL by sea.





Service:







1.One year warranty



2.Your specific enquiry will be prompt replied as soon as possible



3.OEM/ODM service could be offered according to your quantity















If you are interested in this  Led bar light for your stage lighting space.







Please do not hesitate to keep in touch with us as the following



TradeManager:cn1501492591



Skype:ovationis05



WhatsApp:008618922428582
