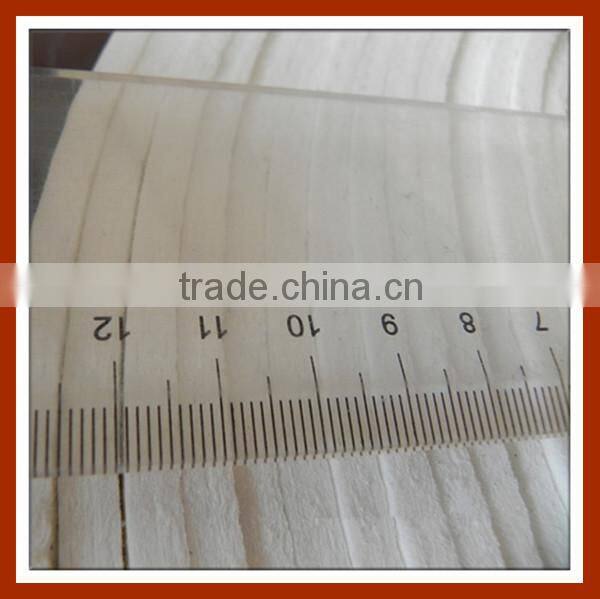

Help CenterZibo Factory 1260STD Ceramic Fiber Paper 5mmx610mmx12m
Related Products
-
Sound Absorption Material Ceramic Fiber Paper 3mmx610mmx20mUS$ 180 - 200MOQ: 1 Roll -
1260C Ceramic Fiber Paper With 2.5mmx610mmx24000mm for Thermal InsulationUS$ 180 - 200MOQ: 1 Roll
-
1260C Ceramic Fiber Paper for Thermal InsulationUS$ 180 - 200MOQ: 1 Roll
-
Thermal Insulation Ceramic Fiber PaperNegotiableMOQ: 1 Piece
-
CE 1260 Ceramic Fiber PaperNegotiableMOQ: 1 Roll
On the base of traditional process of paper making and paper machine,the mechanical product line of wet inorganic ceramic fiber paper is developed and established.
With the special ceramic fiber bulk as raw material which contains less sediment,the high quality paper is made through slurrying,removing residue,mixing slurry,long-mesh shaping,vacuum dehydrating,drying,cutting and rolling etc.
Item |
Heat Insulation Material Ceramic fiber paper |
Material |
Coal gangue |
Working Temperature |
1000Common Ceramic Fiber Paper--900C 1260Standard Ceramic Fiber Paper--1000C 1260High-purity Ceramic Fiber Paper --1100C 1360High Aluminum Ceramic Fiber Paper--1200C 1430Zirconia Ceramic Fiber Paper--1350C |
Specifications |
Density:165-220kg/m Thickness:0.5mm,1mm,2mm,3mm,5mm,6mm,10mm Width:500mm,600mm,610mm,1200mm,1220mm Standard size: 120000x610x0.5mm; 60000x610x1mm; 30000x610x2mm;20000x610x3mm; 12000x610x5mm; 10000x610x6mm |
Characteristics |
Low thermal capacity Low thermal conductivity Excellent electrical insulation properties Excellent machining performance High strength, tear resistance High flexibility Low shot content |
Applications |
Insulation material for instruments and heating element Insulation material for automobile and aerospace industry Expansion joints filling material Isolation for construction material, metallurgy and glass industries, Molten metal sealing gasket Fireproof material Substitute for glass fiber and asbestos fiber |
Package |
Inner plastic bag;Outer carton box;1Roll/CTN Inner plastic bag;Outer carton box;then with pallet; |
Product Name |
1260 Standard |
1360 High-Alumina |
1430 Zirconia |
||
Temperature(°C) |
1260 |
1360 |
1430 |
||
Max Operation Temp(°C)/(F) |
1000 |
1200 |
1350 |
|
|
Density(kg/m3) |
200±10 |
|
|||
Tensile Strength(Mpa) |
≥0.4 |
≥0.4 |
≥0.7 |
|
|
|
Chemical Composition% |
Al2O3 |
46 |
52-55 |
39-40 |
|
Al2O3+SiO2 |
97 |
99 |
- |
||
ZrO2 |
- |
- |
15-17 |
||
Fe2O3 |
1.0 |
0.2 |
0.2 |
||
Na2O+K2O |
0.5 |
0.2 |
|
||
.
