NBY series ceramice fiber board is made from full BY ceramic fiber in a automatic wet vacuue forming process.

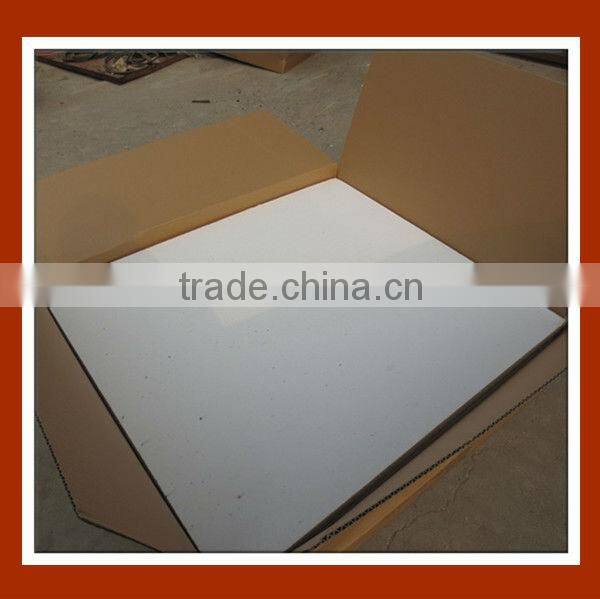

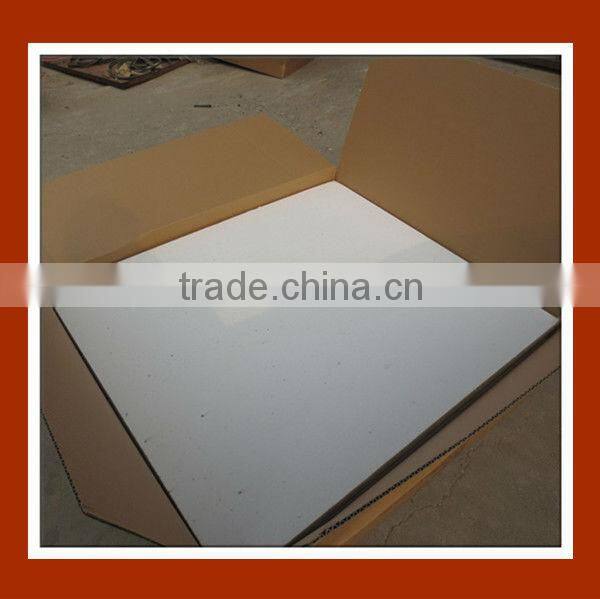

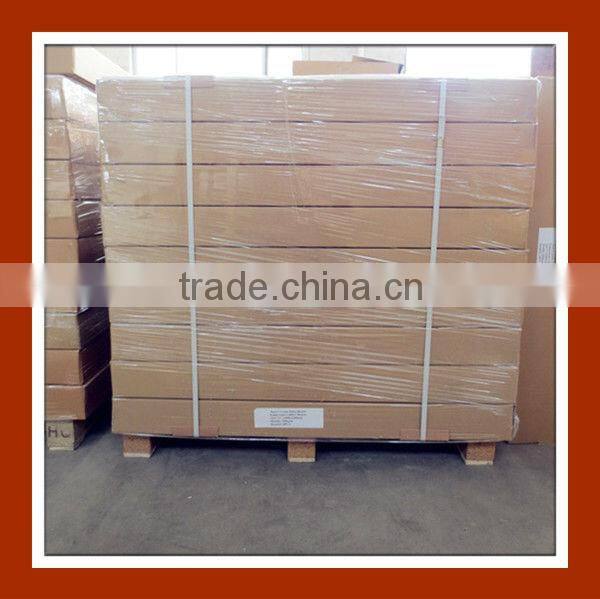

The picture shows ceramic fiber board with wood pallet packing,density 280kg/m3,Thickness 25mm 4pcs/carton box
Products charateristics:
Low Lossing on ignition
Low themal conductivity
High cold strength and hot strength
Low heat storage
Thermal shock resistance
Excellent themal stabity
Typical applications:
1,Industrial furnace wall lining, masonry insulation
2,The high temperature furnace lining, kiln cars, baffle of the furnace door, temperature separate panels of furnace
3,High temperature, fever equipment insulation, insulation
4,Aerospace, shipbuilding insulation, fire safety, noise, insulation
Products Item |
CBD-1000 |
CBD-1260 |
CBD-1400 |
|
Specification temperature oC |
1100 |
1260 |
1400 |
|
Working temperature OC |
1000 |
1100 |
1250 |
|
Color |
White |
|||
Density(kg/m3) |
250-400 |
250-400 |
250-400 |
|
Heating Liner shrinkage(%) (OC*24h), |
≤4 (1000OC) |
≤4 (1200OC) |
≤4 (1400OC) |
|
|
Loss on ignition (at 1000°C×5hr) |
5 |
5 |
5 |
|
|
Thermal Conductivity (W/n.k)
|
0.09(400°C) 0.15(600°C) 0.16(800°C) |
0.09(400°C) 0.15(600°C) 0.16(800°C) |
0.09(400°C) 0.15(600°C) 0.16(800°C) |
|
|
Anti-fracture Strength Mpa |
0.4 |
0.4 |
0.4 |
|
|
Chemcal composition % |
AL2O3 |
39 |
42 |
|
AL2O3+SIO2 |
96 |
98 |
-- |
|
AL2O3+SIO2+ZrO2 |
-- |
-- |
99 |
|
ZrO2 |
-- |
-- |
>10 |
|
Density:
250,280,300,320 ,350,400KG/M3
Size:
Length*width(mm*mm):1200*1000, 1000*600,900*600
Thickness(mm):6,10,13, 20,25,30,40,50,75,100
