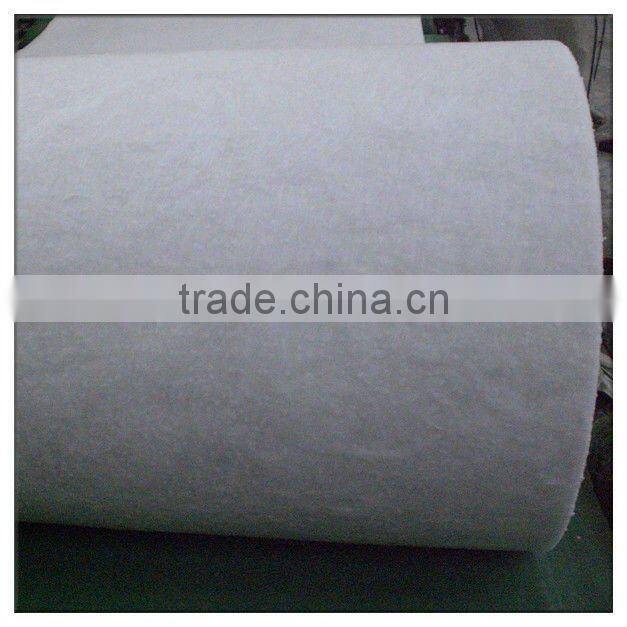

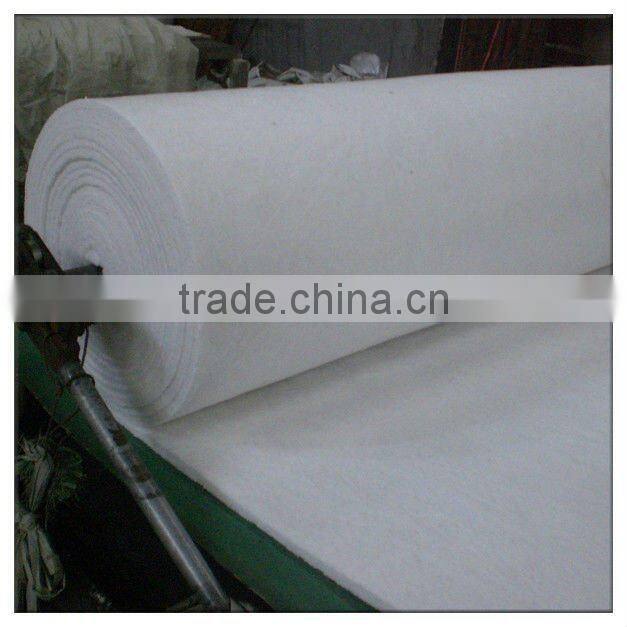

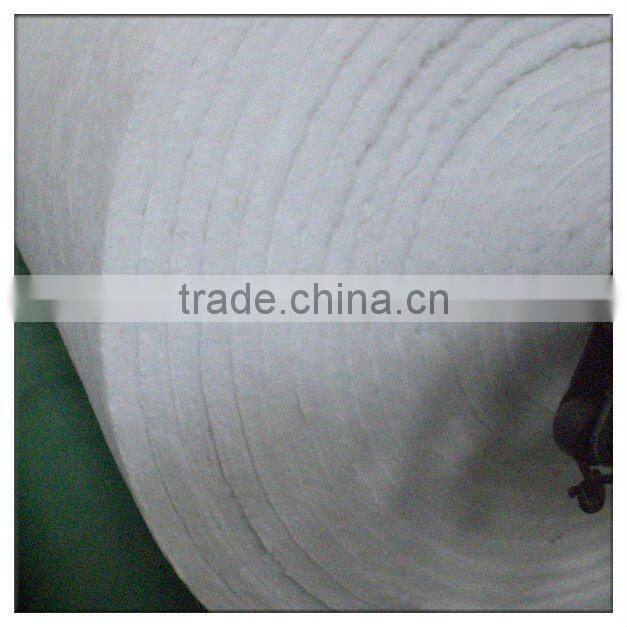

Help CenterLiners of Industrial Furnace Material 6mm Thermal Insulation Materials Ceramic Fibre Blanket
Related Products
-
Thermal Heat Insulation Materials Ceramic Fiber BlanketNegotiableMOQ: 1 Roll -
25x610mmx7200mm Fireproof Material Ceramic Fiber BlanketNegotiableMOQ: 1 Roll
-
Insulation Ceramic Fiber Blanket in ContainerNegotiableMOQ: 1 Roll
-
Weave Bags Packing 1260 Ceramic Fiber BlanketNegotiableMOQ: 1 Roll
-
1360 High Aluminum Zirconium(HAZ)Ceramic Fiber BlanketNegotiableMOQ: 1 Roll
ZIBO BAOYANG FIREPROOF MATERIAL CO.,LTD is the direct factory can produce all grades of ceramic fiber blanket based on the each customer'srequirement.
For we are the factory,we have own export right,if you choose us:
1 You can save more cost for your company.
2,We can keep the quality directly and easily.
3,You can get the fast delivery.
4,We have the professional workers for loading the containers,we will do our best to load more products under such highest shipping charge.
We sincerely hope you can visit our factory to check the quality by yourself.
NBY-series blankets
Pure raw material, good fiberzation quality control produc the low shots content and extra-long spun fiber.
Double sides cross needled process produce a blanket with high tensile strength.
Lower liner shrinkage on high temperature.
Product Characterics
Excellent tensile strength
Low thermal conductivity
Low heat storage
Corrosion resistance
Thermal stablity
Resiliency
High heat reflectance
Thermal shock resistance
Application range
1, Industrial furnace building, heating equipment, and high-temperature pipe wall lining materials.
2, Electric boilers, gas turbines and nuclear power insulation.
3, High-temperature chemical reaction industrial equipment and heating equipment lining the wall.
4, Fire safety in high-rise buildings and insulation.
5, Kiln oven door, roof insulation.
6, High-temperature filter material
Products Item |
NBYB-1260 |
NBYB-HP |
NBYB-AZS |
|
Specification temperature oC |
1260 |
1260 |
1430 |
|
Working temperature OC |
1150 |
1150 |
1250 |
|
Color |
Pure White |
|||
Density(kg/m3) |
96-160 |
64-160 |
64-160 |
|
Liner shrinkage(%)(OC*24h), Density kg/m3 |
≤-3.5 (1200OC) |
≤-3.5 (1200OC) |
≤-3.5 (1250OC) |
|
|
Thermal Conductivity (W/n.k) Density 128 kg/m3 |
0.09(400°C) 0.15(600°C) 0.20(800°C) |
0.09(400°C) 0.15(600°C) 0.19(800°C) |
0.09(400°C) 0.15(600°C) 0.19(800°C) |
|
|
Average Tensile Strength Mpa Density 128 kg/m3 |
70 |
50 |
70 |
|
|
Chemcal composition % |
AL2O3 |
45 |
47 |
35 |
AL2O3+SIO2 |
96 |
98.5 |
-- |
|
AL2O3+SIO2+ZrO2 |
-- |
-- |
99 |
|
ZrO2 |
-- |
-- |
15 |
|
Fe2O3 |
0.3 |
0.3 |
0.2 |
|
Na2O3+K2O |
0.2 |
0.2 |
0.2 |
|
Test data shown are average results of tests conducted under standard procedures and are subject to variation. |
Thickness |
Density KG/M3 |
Length |
Width |
Roll/Carton |
|||
mm |
64 |
96 |
128 |
160 |
mm |
mm |
|
6 |
|
|
|
* |
14000 |
610 |
2 |
10 |
|
|
* |
* |
9200 |
2 |
|
13 |
|
* |
* |
* |
7200 |
2 |
|
19 |
* |
* |
* |
* |
9760 |
1 |
|
25 |
* |
* |
* |
* |
7320 |
1 |
|
38 |
* |
* |
* |
* |
4880 |
1 |
|
50 |
* |
* |
* |
|
3650 |
1 |
|
Special size: max width 1220mm,* Can be produced | |||||||
