Overhead Cable Short Circuit Fault Indicator
35kV rubber safety boots
Material: Aviation Material
Advantage:
1. High level of accuracy.
2. Stable operation.
3. Automatic reset function.
4. Easy installation and maintenance-free.
Usage:
1.Rapidly indicate the fault circuit and fault point, reduce the blackout area.
2.Shorten the time of troubleshooting, improve the reliability of power supply.
3.Accurately indicate the instant fault, which is conducive to exclude the power supply problems.
4.Providing techniques to find the permanently hidden fault point.
5.Shorten the time to find the fault point, reduce the labor intensity of patrol personnel.
6.Defining the responsibility of the fault area and responsible people.
7.Avoiding the impact to the electrical equipment because of repeatedly traditional patrol lines pulling.
Applicable voltage |
U≥6KV |
Conducting wire current |
I≤1000A |
Diameter of conducting wire |
25mm2≤d≤400mm2 |
Operation response time |
0.06S≤T≤3S |
Static power loss |
≤10μw |
Reset time |
6,12,24,36 hour is available |
Power reset |
No need to set the reset time, fault indicates through the current impulse reset when fault remove and electricity transit again |
Environment temperature |
-40°C≤T≤+75°C |
Operation times |
≥4000 times |
Weight |
420g |

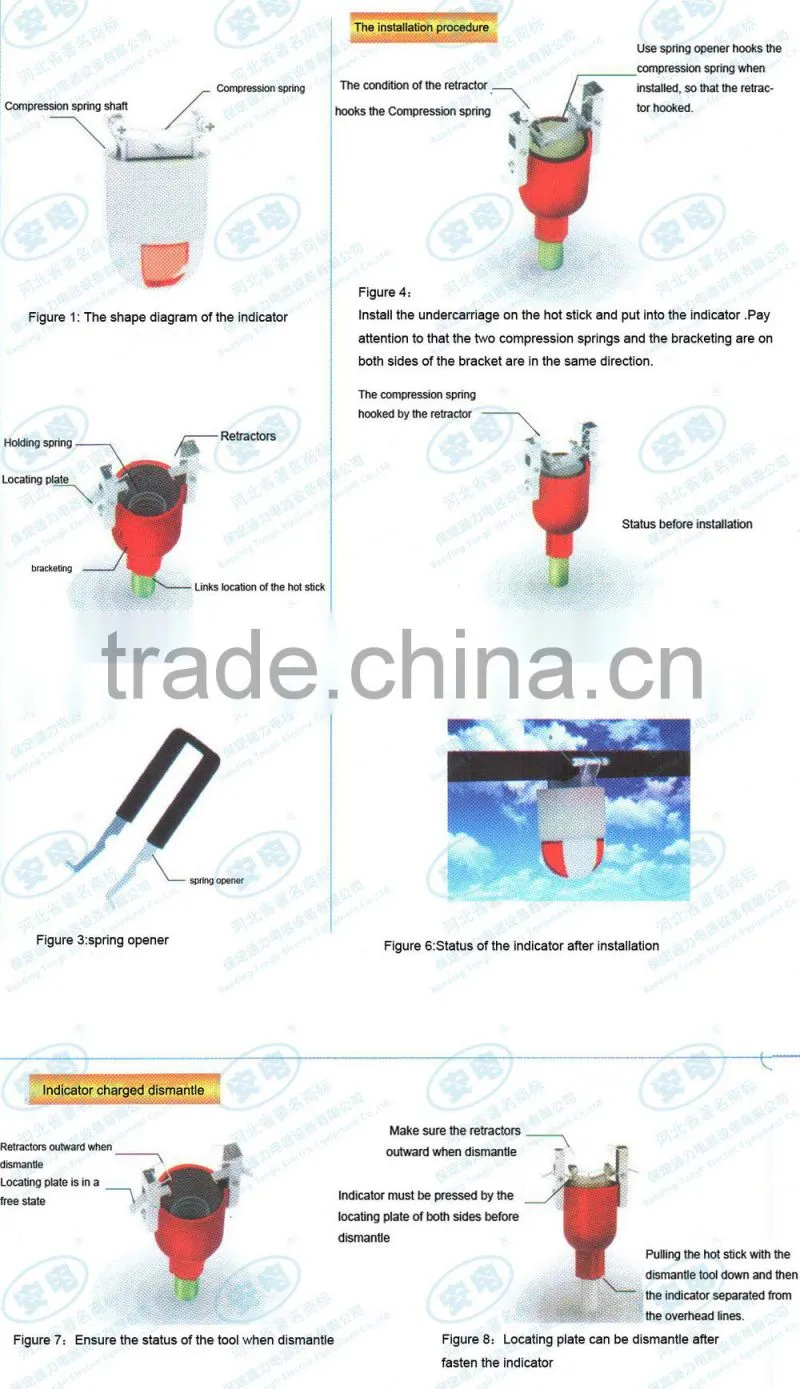

The installation and dismantlement of the line fault indicator
Packing Details: plastic bag inside ,carton outside
Delivery Details : 30 days after the receipt of the deposit
