OK-8 PLL 8 channels wireless microphone

Specifications

OK-8,UHF PLL 8 channels wireless microphone(8*32channels),500-980MHz,distance :100M ,Tone-Lock,eight channels

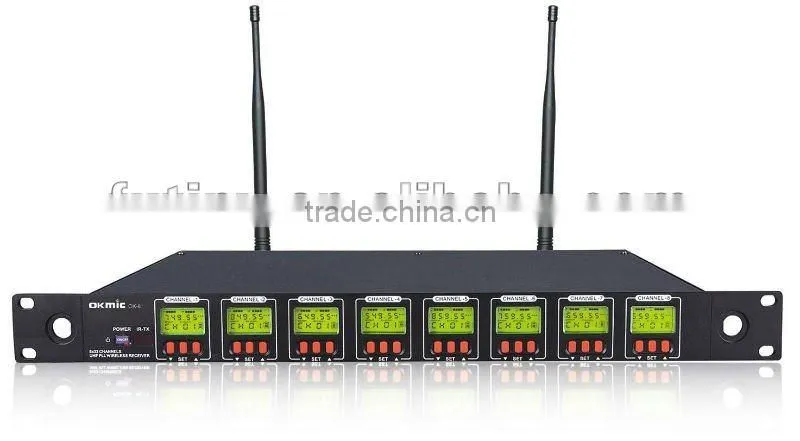

Receiver:

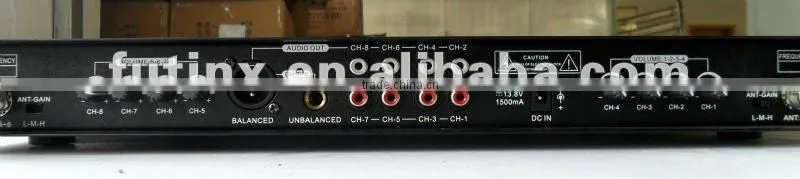

Back View:

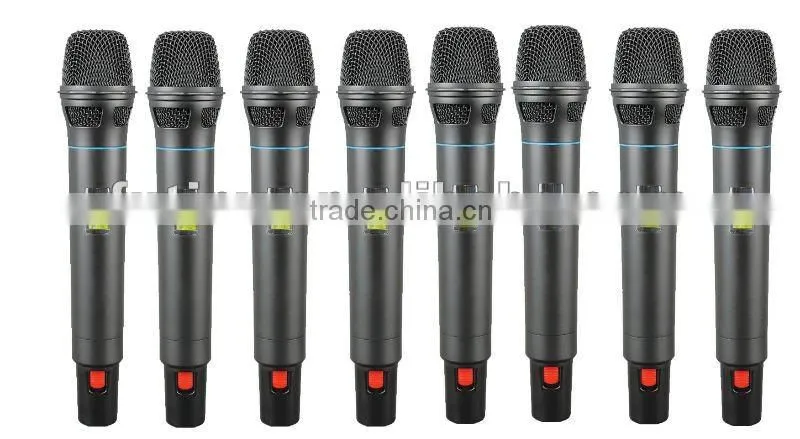

Transmitter:

Battery Case:

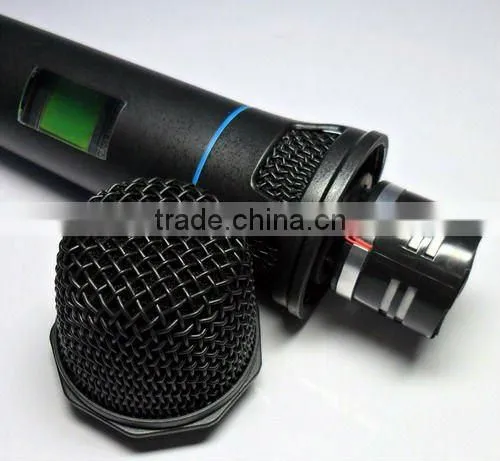

Cartridge  :

MODEL: OK-8, 8*32 Channels Wireless Conference Microphone(ACT / IR )

FEATURE :

*use UHF 500-980MHz  range ,adopt PLL combined technology ,and the transmitter power is adjustable ,they can be used several sets at the same time without interference  .

*CPU control with LCD display makes operation easy and performance outstanding .

*Use multi-channel with high frequency to avoid the interference .

*With audio compressing-expanding technology ,the machine can reduce the noises and increase the dynamic range .

*with ACT / IR function

*Having backsound restrain function can avoid backsound scream

*The receiver adopt multi-level high frequency enlargement .so and has the high sensitivity .

*Multi-level noise supervisory circuit .Special with the tone locked system make the machine have a strong anti-jamming characteristics .

*Using the best parts and CPU ,to keep the products with the perfect performance .

*100 meters in best condition ,60 meters in normal condition .The largest using range is above 100 meters in the spacious place ,50 meters for the ideal using range .

Technical specification :

1)FUNCTION

Frequency range :UHF 500-980MHz adopt CPU control

With PLL combined technology :1 group system frequency .1 group can be used 5sets (5*8=40 conference transmitter )at the same time without interference

Frequency stability :<±10ppm

Operating range :>105dB

T.H. D distortion :<0.5%

Frequency response :40Hz -18KHz

Audio frequency output :balanced output :0-600mV

                                     Unbalanced output 0-300mV

Tone frequency :32K-51.2KHz

2)RECEIVER

frequency range :500-980MHz

Operating voltage :DC-13.8V/1500mA

Sensitivity of receiver selective switch

S/N ratio:>105dB

T. H. D distortion :<0.5%

Frequency response :40Hz-18KHz

Noise locked +pilot tone locked

Operating distance : 60-100 meters

3)TRANSMITTER (Wireless conference microphone )

Operating frequency :500-980MHz

Transmitter power : H 10dBm ,L 5dBm

Cartridge gain adjusting :-20dB to 30dB

Modulate mode : FM

With FM Max frequency adjusting : ±45KHz

High wave :<main wave 60dB

Power supply :2*AA batteries ,standing time :about 8 hours

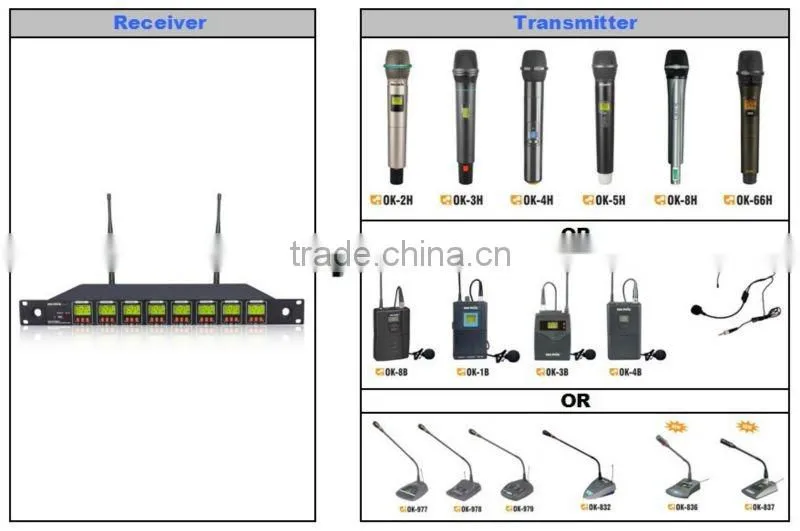

Optional :
