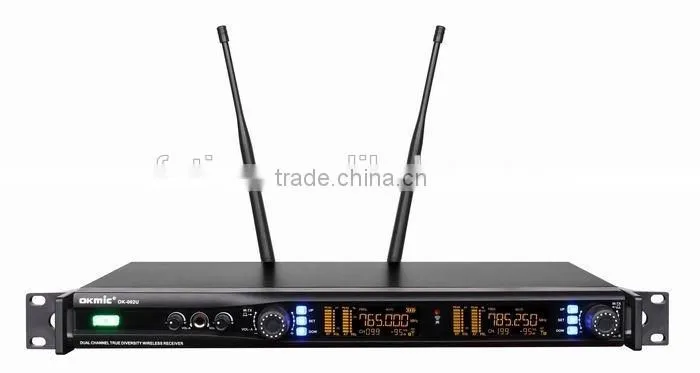

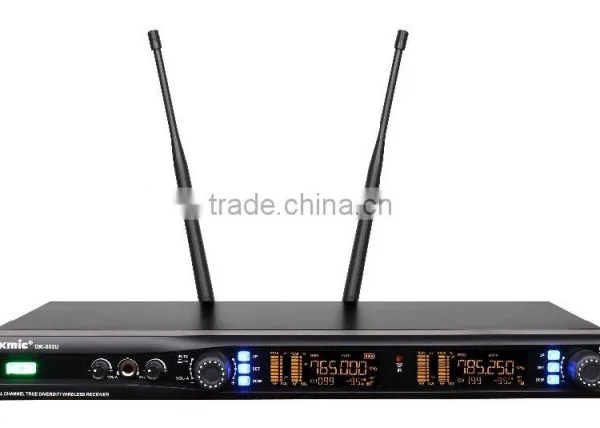

2016 New Design Dual Channels Wireless Microphone High Sensitive Microphone
Digital ID Pilot Series
Technical Parameters | |
Device Specification: |
EIA Standard half U |
Receiving Channel: |
Dual channel(true diversity reception) |
Frequency Stability: |
±0.005% |
Carrier Wave Frequency Band: |
500~960MHz(Follow the region demands) |
Modulation System |
FM |
Vibration Method: |
PLL Phase Locking System Synthesis |
Receive Sensitivity: |
Drift rate is 25KHz,input is 5dBuV,S/N>60dB |
Frequency Bandwidth: |
50MHz |
Max Drift Rate |
±45KHz |
S/N Ratio: |
>105dB |
T.H.D.: |
<0.7%@1KHz |
Frequency response: |
50Hz-18KHz ±3dB |
Effective Operating Range |
80m(open place) |
Power Supply: |
DC 12V / 12W |
Size(mm): |
410(H)x44(W)x210(L) |
Weight: |
1.9kg |
1. Each set is packed in foam and color box.
2. Professional Packing meathod could protect the products safely in long distance delivery.
3. Neutral packing box could meet different custome demands.
4. We could print the color box based on clients' demands.
5. We could help client to order the ship and clean the Chinese Customs.
1. Any damages for the products could be sent back to our factory to repair. The repair fee is free. But if it needs to change any accessories, that the client have to pay the accessories' fee, either the delivery fee.
2. Any usage questions, please feel free to contact our saleman or customer service people. They are willing to solve your any questions.
3. We could send our technician to your country to help you solve the technicial problems if you need that.
Enping Huayuan Audio Equipment Factory (OKMIC) is a professional wireless microphone manufacturer, which is an advanced technology enterprise of R&D, Production, Sales and Services. Our products have retro and fashional design and leading technological electronic circuit applications, which win our clients' satisfaction and support.
We are looking forwards to long-term, stable and reliable business relationship with our worldwide clients.
