Hailei Manufacturer laser welding machine electric welding machine power 400W welding machine for pvc window frame used

 Technology Parameter:

INTRODUCTION:

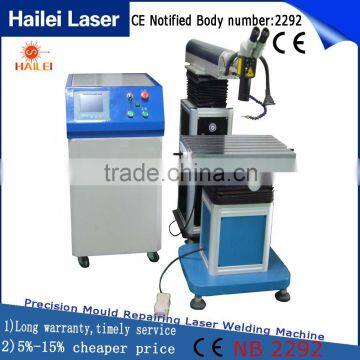

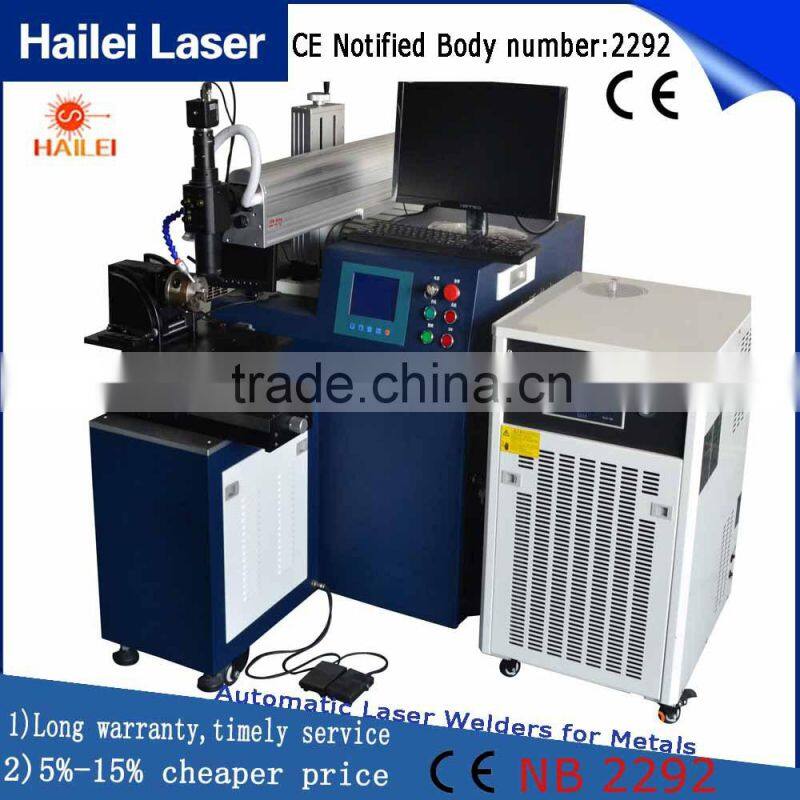

Hl-W200,HL-400W automatic laser welder adopts manual programming automatic dual-purpose worktable, electric focusing, 16 group precise waveform control; suitable for mold repair, and welding all kinds of electronic products; the main advantages as follows:

(1) Electric regulate the lever of laser focus: it is convenient to regulate lever of laser rapidly through the manual button on the panel, which makes the laser focusing become simple and fast.

(2) Positioning function of welding spot: it through the red light direction to find the rough place of welding spot on the work piece, aiming at the location of welding spot accurately by using binocular high-magnification microscope observation.

(3) Electric regulating multiple size of scattering mirror (regulating the facula size).

(4)Manual control the movement of XY mobile worktable, optional automatic welding function of electric control at the same time, which can realize automatic welding of products in high speed.

(5) Integrative design, small size, compact structure, so it's convenient and practical

APPLICATIONS:

Suitable for welding or repairing on various of metals, alloy, mould steel.

(1)Thin Metal Sheets, Titanium, kettle, vacuum cup, stainless steel bowl, Jewelry, door handle, mould.

(2)Stainless steel products, golf head, zinc alloy artworks.

(3)Aluminum alloy, laptop shell, mobile phone battery, electric apparatus fittings, filter, nozzle.

(4)Tical Fiber Coupler, Electron Gun, Capacitors, Lithium-ion batteries,sensor, tungsten wire, high power diode, tc.

MAIN MARKETS/KEY CUSTOMERS:

Titanium Industries, Battery Manufacturers, Jewelry Manufacturers, Watch Industries, Electrical Switch Industries, Optic Fiber Industries, Thin Sheets and so on.

WORKING PRINCIPLE:

Heat created by highly concentrated and focused laser will melt the welding wires instantly together with the broken part on the mould. The welded part can be smoothened by electric sparking or grinding. Trachoma, crack, broken corner or edge can be quickly and nicely repaired.

Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track.

Wide range of adjustments of the laser output parameters allows to process metal parts made of steel, stainless steel, non-ferrous metals and alloys. Dimensions of the parts can be varied from very small (e. G. Wires) to rather big (300x 200x100 mm) and up to 100 KG weight and more.

OBSERVATION SYSTEM

Installed with cross the cursor of special microscope  observation system, magnification 17.5×.cross the cursor center align laser flare center . With high speed electronic filter light protection device to protect the worker's eyes, improve work efficiency.

CONTROLLING SYSTEM

Using improved the built-in single-chip machine for double closed loop control precision. its stability and operation ability is greater than similar products.

GAS PROTECTION SYSTEM

Changed to double-channel synchronous argon protection system, make the argon better , make the welding more firm and beautiful, and keep the advantages of the original--the synchronous control of laser launch, can save argon at most.

INSTALLATION CONDITIONS

220V50HZ alternating current, provide more than 30A current, voltage stability.

Environment: clean and no dust or little dust, temperature 55°F(13°C)to82°F(28°C),humidity:5%to75% no condensation.

Main consumables: xenon lamp, filter, protection lens, water, welding wire, argon, electricity.

Supporting device

Cold water machine, reinforced worktable, laser welding wire, welding wire clip.

THE OTHERS

Sample Availability : Yes

Quality Process Certifications : ISO 9001:2008

Delivery Lead Times : 7-15days after authorized order confirmation

We can also customize the system according to customer requirement and have supplied to varied industries for multiple applications.

3-Axis stroke of work bench    300*200*200mm ( customized )

1.Express: DHL, TNT, UPS.

2.Air or Sea shipping ,Cheap Price, But will take a little more time to reach you.

1.We are the professional manufacturer ,could supply you the most suitable welding machine for you products.

2.Give you a special customized system solutions with a competitive price.

3.Our welding machine has passed the ISO9001 test.

4.The good after-sales service would be offered for your any questions,for 1 year period.

5.The processed sample also can be delivered to you for testing before purchasing our machine.

Laser welding effect
