Home > Products > High Power LED 1-300W > DC12V 80W COB High Power led chip module

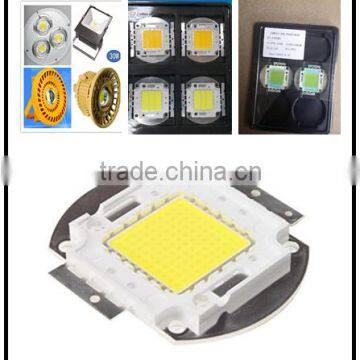

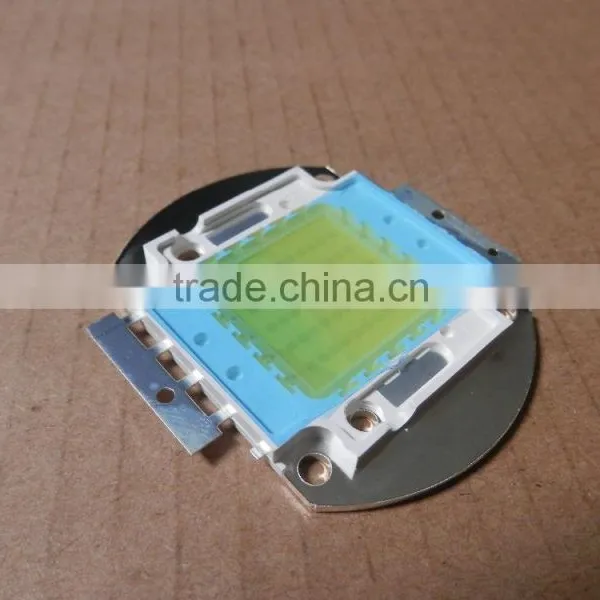

DC12V 80W COB High Power led chip module
- 500000 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
You May Like
Product Details
Model Number | TDS-P080LA Series | Chip Material | InGaN | |
Emitting Color | Other, Warm white / Pure White / Cool white | Luminous Intensity | 110 - 150lm/w | |
Luminous Flux(lm) | 8000lm / 12000lm | Optical Attenuation(%) | 0.0001 | |
Power | Other, 80W | Power Dissipation | 0.005 | |
Color Rendering Index(Ra) | 80 | Color Temperature | 3000 - 25000K | |
Operating Temperature(℃) | -30, 80 | Storage Temperature(℃) | -30, 120 | |
Place of Origin | Jiangsu, China | Brand Name | TDS | |
Certification | CE |
Product Description
Attention:
1.Warm White 3500-3800K Day / Natural White 6000-6200K / Cool white: >7000K
2. The Led Size has different Type. If you have request in its size, please select
3. We have normal 100lm/w Type and 150lm/w Type for your selection.
Name | Model | Color | Angle(°) | wave length/Color (IF=2.8 A) | Luminous flux (IF= 2.8A) | forward voltage (IF= 2.8A) | DC12V 7A | |||
MIN | MAX | MIN | MAX | MIN | MAX | |||||
80W LED | TDS-P080LAO28 | WHITE | 160 | 2000K | 3000K | 7500 | 8000 | 30 | 36 | |
TDS-P080LAQ28 | WHITE | 160 | 3000K | 4000K | 7500 | 8000 | 30 | 36 | ||
TDS-P080LAS29 | WHITE | 160 | 4000K | 5000K | 7500 | 8000 | 30 | 36 | ||
TDS-P080LAU29 | WHITE | 160 | 5000K | 6000K | 7500 | 8000 | 30 | 36 | ||
TDS-P080LAW29 | WHITE | 160 | 6000K | 7000K | 7500 | 8000 | 30 | 36 | ||
TDS-P080LAY29 | WHITE | 160 | 7000K | 8000K | 7500 | 8000 | 30 | 36 | ||
TDS-P080LAZ29 | WHITE | 160 | 8000K | 9000K | 7500 | 8000 | 30 | 36 |
1. Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2. What will be the delivery time ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
3. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.
4. Could you please send me the sample ? Then i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
6. How will invoice be generated ?
Invoice can be generated with formal contract with company seals
7.payment:
T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque
If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
