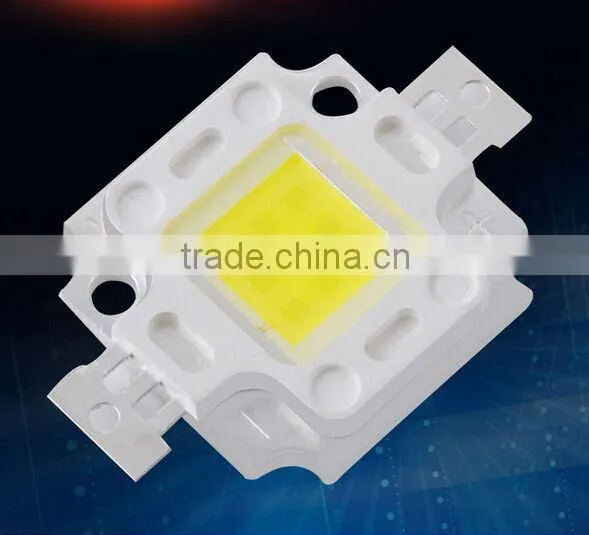

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w thumbnail-3

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w thumbnail-4

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w thumbnail-5

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w photo-1

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w photo-2

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w photo-3

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w photo-4

DC12V 10 Watt Pure White Power LED 6100 - 6200K Bridgelux H1 Chip 150lm/w photo-5

US$ 2 - 3.5 MOQ: 1 Piece

Key Specifications

Get Latest Price

Model Number:

TDS-P010LA

Chip Material:

InGaN

Emitting Color:

Other, Warm White / Pure White / Cool white

Contact Supplier Request Quote Chat Now

Wuxi TDS Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number TDS-P010LA

Chip Material InGaN

Emitting Color Other, Warm White / Pure White / Cool white

Luminous Intensity 100-150lm/w

Luminous Flux(lm) 1000lm / 1500lm

Optical Attenuation(%) 0.0001

Power Other, 10W

Power Dissipation 0.005

Color Rendering Index(Ra) 80

Color Temperature 2000-26000K

Operating Temperature(℃) -30, 80

Storage Temperature(℃) -30, 120

Place of Origin Jiangsu, China

Brand Name TDS

Certification CE

Product Description

Notice: All 10W Led is with the Epistar and Bridgelux Chip. We have 100lm/w and 150lm/w For your selection.

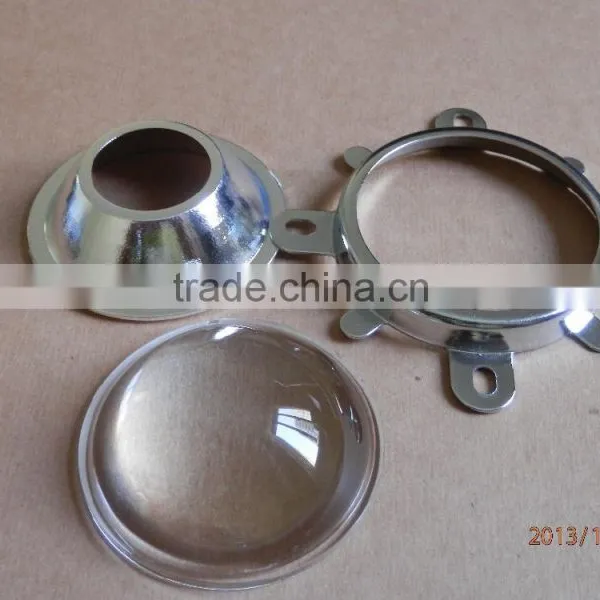

Remarks: The 10W LED can be Square (Standard) Size and Oval 5W shape with lens.(Reference)
Warranty: All Led with 5 years warranty. If any led is out of work in 5 years, we will replace them by new led through our International DHL Account

Square 10W (Standard)

Name	Model	Color	Angle(°)	wave length/Color (IF=1.05A)		Luminous flux (IF=1.05A)		Forward voltage (IF=1.050A)		Attention
				wave length/Color (IF=1.05A)		Luminous flux (IF=1.05A)		Forward voltage (IF=1.050A)		Attention
				MIN	MAX	LM-1	LM-2	MIN	MAX	LM-1=100lm/w LM-2=150lm/w
10W LED	TDS-P010LRC11	RED	160	620nm	630nm	300	400	9	10
	TDS-P010LAD11	BLUE	160	460nm	465nm	150	200	9	10
	TDS-P010LAF17	GREEN	160	520nm	525nm	350	600	9	10
	TDS-P010LAG17	GREEN	160	525nm	530nm	350	600	9	10
	TDS-P010LAO17	WHITE	160	2000K	3000K	1000	1500	9	12
	TDS-P010LAQ17	WHITE	160	3000K	4000K	1000	1500	9	12
	TDS-P010LAS18	WHITE	160	4000K	5000K	1000	1500	9	12
	TDS-P010LAU18	WHITE	160	5000K	6000K	1000	1500	9	12
	TDS-P010LAW18	WHITE	160	6000K	7000K	1000	1500	9	12
	TDS-P010LAY18	WHITE	160	7000K	8000K	1000	1500	9	12
	TDS-P010L4Z18	WHITE	160	8000K	9000K	1000	1500	9	12
	TDS-P010L4RGB	RGB	160	R=40LM	G=80LM	B=25LM	As per Data sheet

Applications:

All general Indoor lighting and outdoor lighting

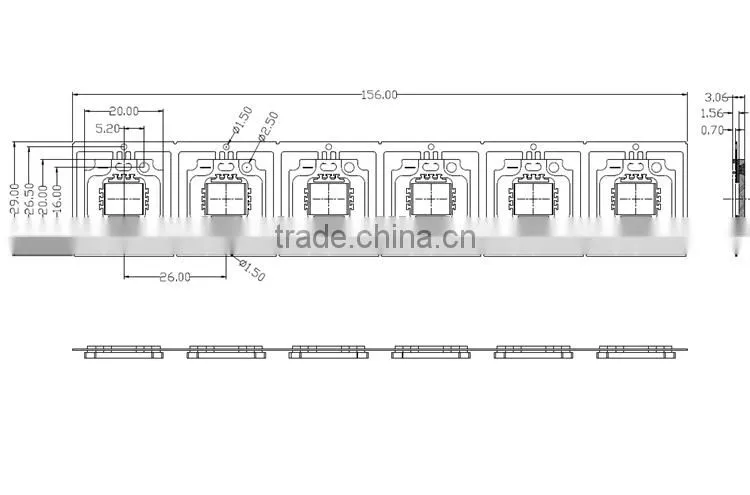

LED Dimension

Quick Detail

Application

FAQ

1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.

2. What will be the delivery time ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes

3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.

4. Could you please send me the sample ? Then i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.

5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.

6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals

7.payment:

T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque

If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
