Home > Lights & Lighting > LED Encapsulation Series > High Power LED > 150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty thumbnail-3

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty thumbnail-4

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty thumbnail-5

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty thumbnail-6

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty photo-1

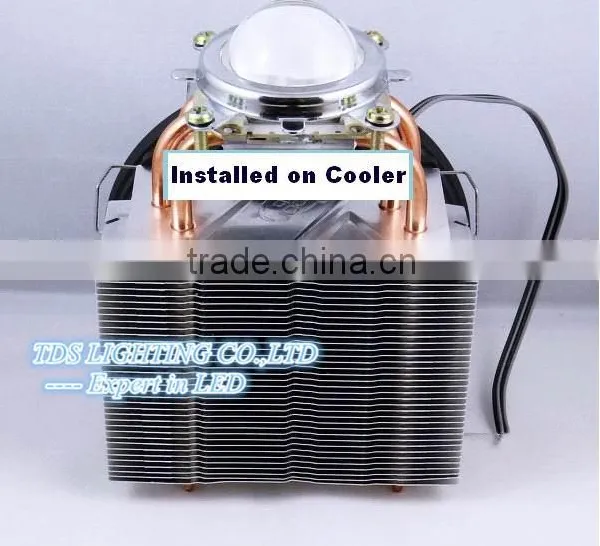

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty photo-2

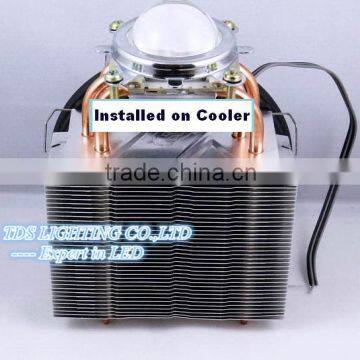

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty photo-3

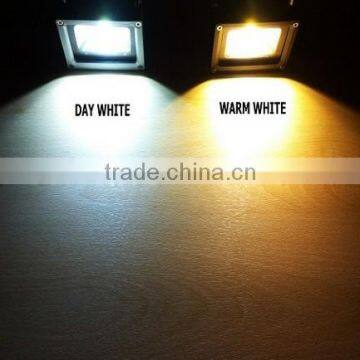

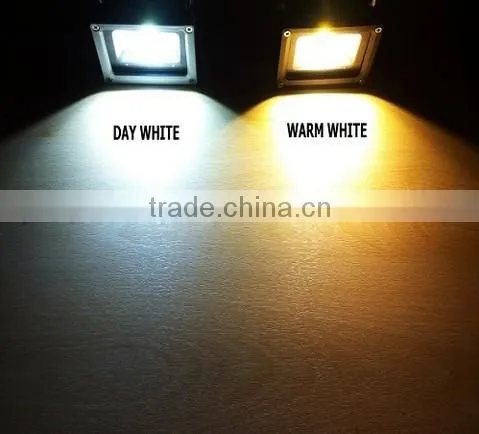

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty photo-4

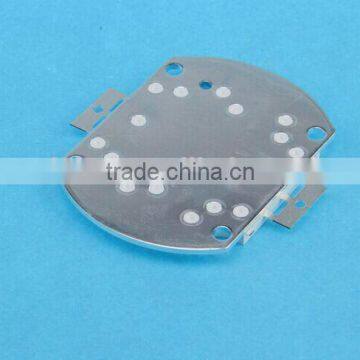

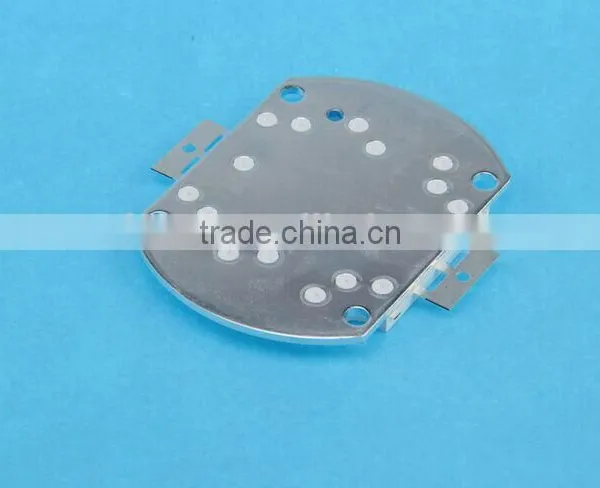

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty photo-5

150lm/w 100W High Power LED Light Bridgelux H1 45mil Chip With 5 Years Warranty photo-6

US$ 12 - 15 MOQ: 6 Pieces

Key Specifications

Get Latest Price

Model Number:

TDS-P0100LA Series

Chip Material:

InGaN

Emitting Color:

Other, Pure White

Contact Supplier Request Quote Chat Now

Wuxi TDS Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number TDS-P0100LA Series

Chip Material InGaN

Emitting Color Other, Pure White

Luminous Intensity 110 - 150lm/w

Luminous Flux(lm) 10000lm / 15000lm

Optical Attenuation(%) 0.0001

Power Other, 100W

Power Dissipation 0.005

Color Rendering Index(Ra) 80

Color Temperature 3000-4000K 6000-6200K 7000-9000K

Operating Temperature(℃) -30, 80

Storage Temperature(℃) -30, 120

Place of Origin Jiangsu, China

Brand Name TDS

Certification CE

Quick Detail

Attention:

1.Warm White 3500-3800K Day / Natural White 6000-6200K / Cool white: >7000K

2. The Led Size has different Type. If you have request in its size, please select 3. We have normal 100lm/w Type and 150lm/w Type for your selection.

Name	Model	Color	Angle(°)	wave length/Color Temperature (IF=3500mA)		Luminous flux (IF=3500mA)		forward voltage (IF=3500mA)
				wave length/Color Temperature (IF=3500mA)		Luminous flux (IF=3500mA)		forward voltage (IF=3500mA)
				MIN	MAX	MIN	MAX	MIN	MAX
100W 150lm/w	TDS-P100LAO60	WHITE	160	2000K	3000K	15000	18000	30	35
	TDS-P100LAQ61	WHITE	160	3000K	4000K	15000	18000	30	35
	TDS-P100LAS62	WHITE	160	4000K	5000K	15000	18000	30	35
	TDS-P100LAU63	WHITE	160	5000K	6000K	15000	18000	30	35
	TDS-P100LAW64	WHITE	160	6000K	7000K	15000	18000	30	35
	TDS-P100LAY65	WHITE	160	7000K	8000K	15000	18000	30	35
	TDS-P100LAZ66	WHITE	160	8000K	9000K	15000	18000	30	35

Packaging & Shipping

Application

Material Show

FAQ

1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.

2. What will be the delivery time ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes

3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.

4. Could you please send me the sample ? Then i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.

5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.

6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals

7.payment:

T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque

If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
