Ce Certificated Workshop Two Girder Overhead Crane

FOB Price

US$ 8,000 - 120,000 / Set

1 Set(Min. Order)

Port Tianjin port or any port of China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Widely used for all kinds of work yard
Rated Loading Capacity	up to 550 ton	Rated Lifting Moment	As desingn
Max. Lifting Load	550t	Max. Lifting Height	30mm
Span	7.5-31.5	Place of Origin	China
Brand Name	Santo	Model Number	QD
Certification	CE ISO Certificated	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Ce Certificated Workshop Two Girder Overhead Crane

Product Description

1. Compact Gear Motor	2. Limit Switch
Smooth traveling and lifting work, Low Dead Weight Low Noise German Quality, Safety and Durable	Safe Limit Switch for Lifting and Traveling Incase of load crash the top of lift mechanism Incase of trolley or Crane crash to the end of track.
3. Small and high strength Wheel	4. Aviation Revos
Small euro-type wheel help lowen the whole dead weight of the overhead crane Advanced Wheel shape design lower the noise and make the traveling more smoothly	With this Aviational Revos, the Electrical box has a higher protect class, Safety and Reliable
5. Hook
DIN standard hook with block High strength and with cover, Beautiful and pratical

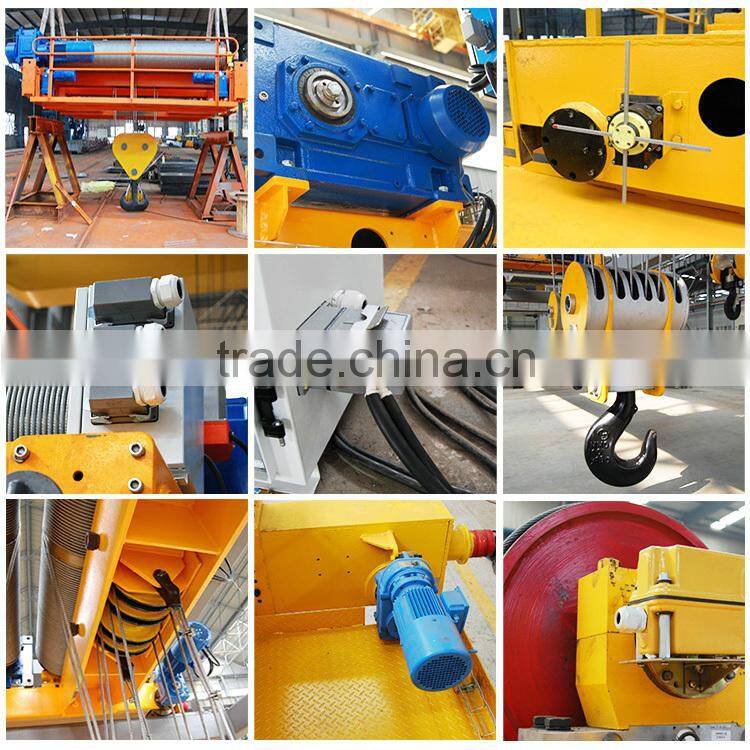

The details pictures showing

Traditional Chinese type overhead Crane Design

Strong and durable steel material adapted make the whole crane more safety.

Cheaper price while the quality from us are top of line, because we are professional.

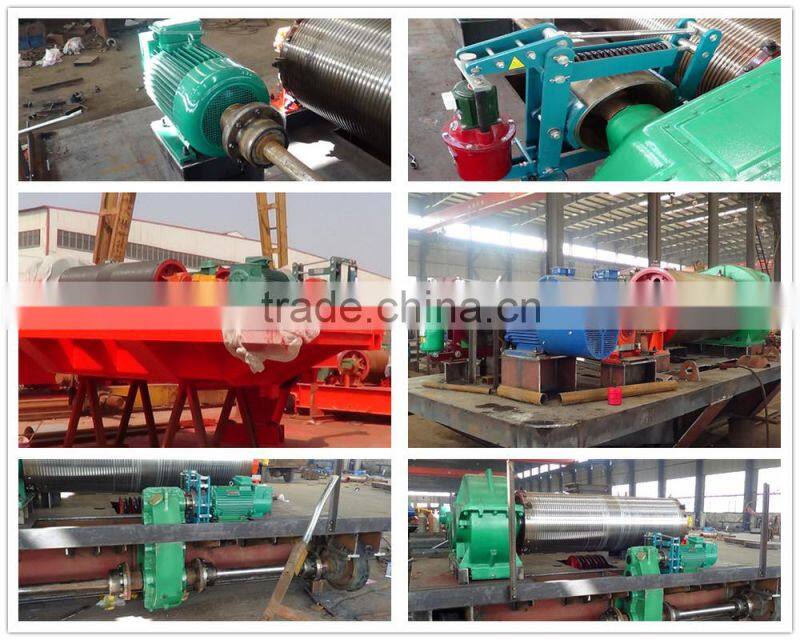

Trolley

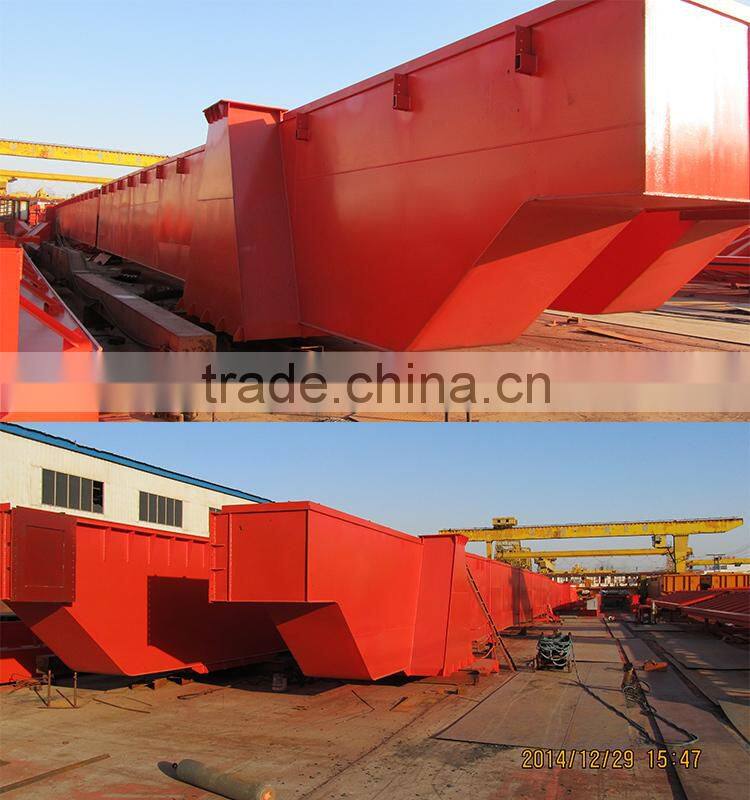

Main Beam

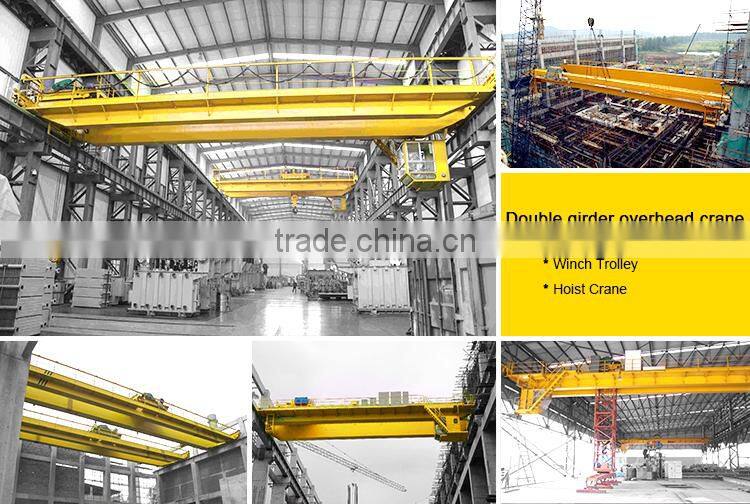

Euro-style double girder overhead crane

Compact design especially for low clearance workshop. Light deadweight help lower the total cost for construction.

Meanwhile, the price is also more affortable than other supplier.

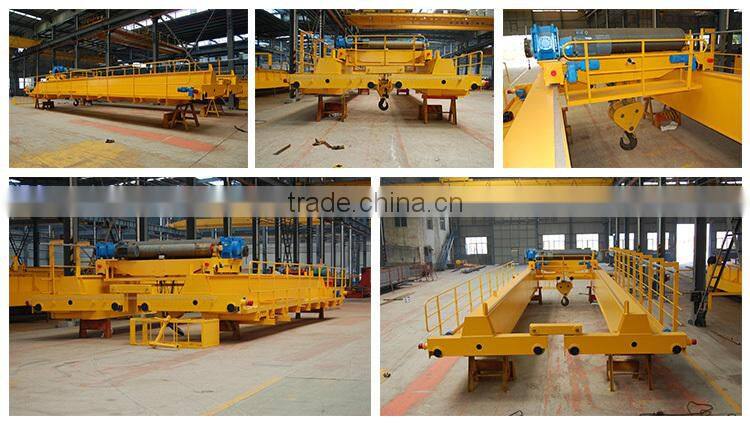

Cranes

Trolley Showing

Design Standard

The design and manufacture follow the GB/JB standard

GB/T 3811-2008

GB6067.1-2010

GB/T14405-2011

GB/T104406-2011

GB/T10183-2005

GB/T5905-1986

JB/T4315-1997

Gb8918-2006

GB/T700-2006

GB/T1591-2008

Jb928-1994

GB11345-1989

Design rules for cranes

Crane machinery safety procedures

General overhead crane

General gantry cranes

Tolerance of Overhead crane and gantry crane manufacuturing and rails installation

Crane testing rules and process

Crane Electrical control equipment

Wire rope for cranes

Carbon structural steel

Low-Alloy High-Tensile Structural Steel

The standard of Radiographic inspection for weld joint

Manual ultrasonic testing method

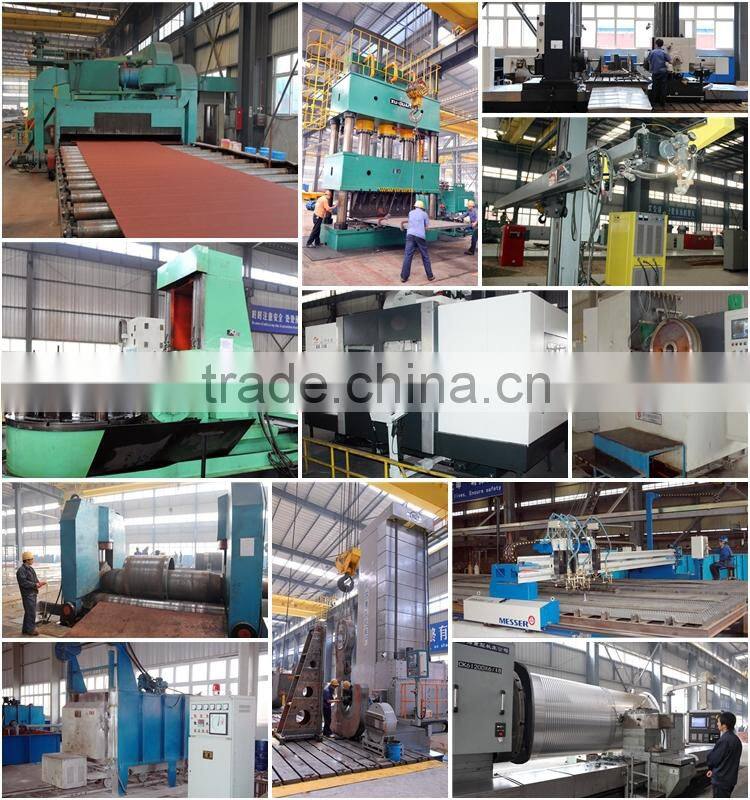

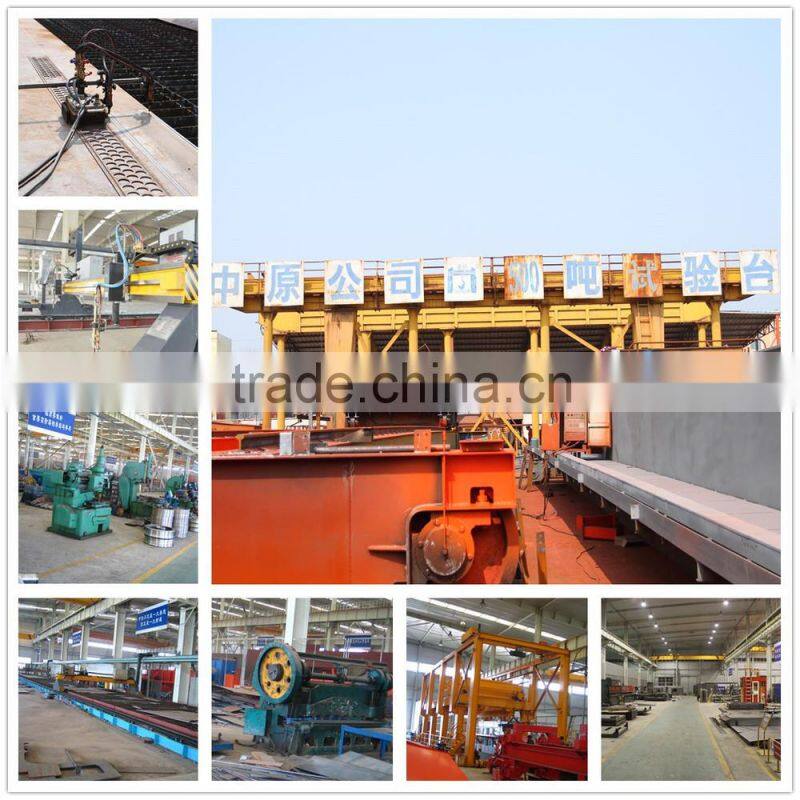

Advanced equipment and produce technology

We own the World advanced level manufacture euipment and produce technology. We pay every attention on strictly controling the crane quality and improving the service. We do all is to help our customer to have a strong business.

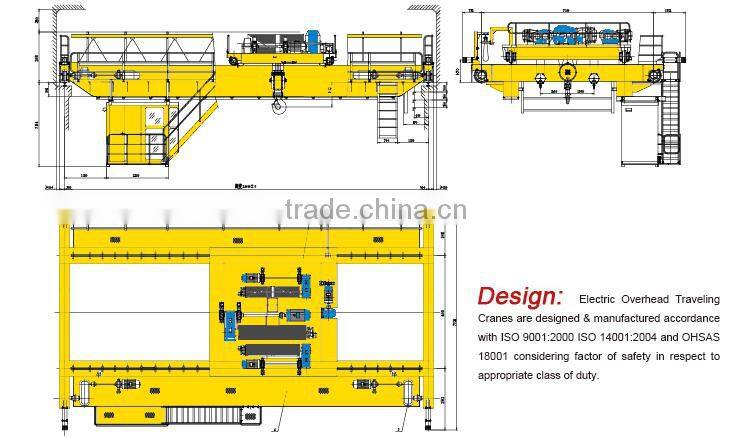

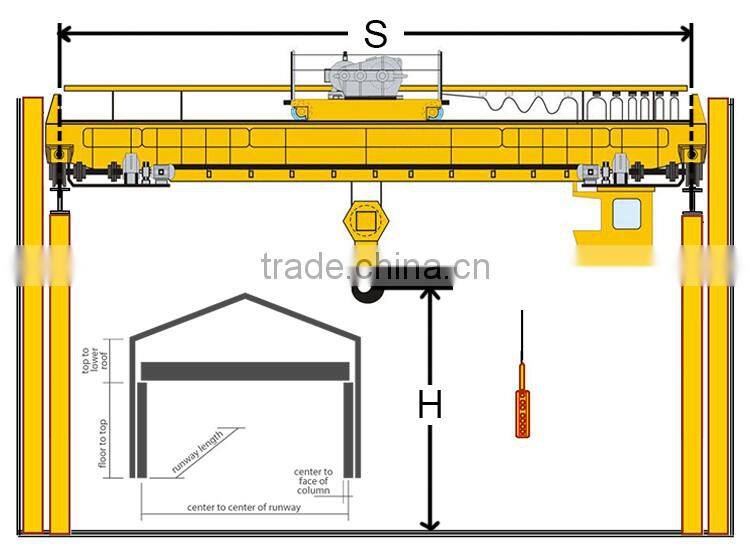

Sketch & Parameters

QSWL Gn rated lifting capacity				t	32/10 (we can supply up to 550 ton)
Opertional method				m/min	Remote or Pendant control/Cabin Control
Speed	Main.hook lifting				3(0.3/3)
	Aux.hook lifting				7(7/0.7)
	Cross travelling				20
	Long travelling		Remote or Pendant control		20/30
			Cabin Control		30/40
Motor	Main.hook lifting			kw	ZDX62-6/18.5,(ZDS2.2/18.5)
	Aux.hook lifting				ZD151-4/13(ZDS1-1.5/13)
	Cross travelling				ZDY123-4/2.2x2
	Long travelling		Remote or Pendant control		ZDY123-4/2.2x2		ZDY131-4/3x2
			Cabin Control		ZDR112L2-4/3.0x2			ZDR125-4/4.6x2
Electric Hoist					WH164;CD1(MD1)
Lifting Height				m	9;12;16;24
Duty Class					A3--A5
Power source					3-phase A.C. 50Hz;380V
Track recommended					43KG/M
Span				m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Max.wheel presure				KN	167	184	196	206	215	224	233
Crane weight		Remote or Pendant control		kg	12530	14660	16360	18870	21650	24260	27060
		Cabin Control		kg	13430	15560	17260	19770	22550	25160	27960
Basic dimensions		B		mm	5070--5960			5572--6222
		W		mm	3600~4500
		Wc		mm	2200-2900
		K		mm	1600~2500
		H		mm	1900
		H1		mm	765
		H2		mm	170	270	370	470	570	670	770
		H3		mm	2395	2495	2595	2695	2795	2895	2995
		H4		mm	-700
		b		mm	230
		S1		mm	1100
		S2		mm	1600

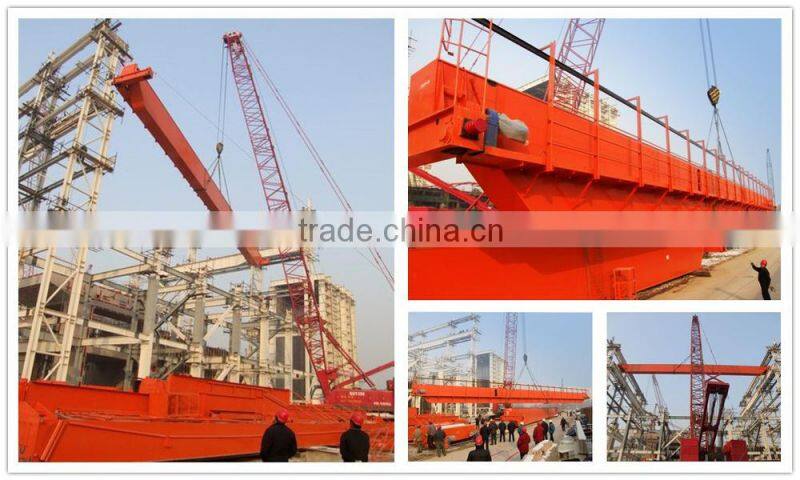

Installation

Spare parts we purchases

We have a very strictly purchase part selection system. We do all is to help improve our customers experience of our Crane

No.	Items	COOPERATE Manufacturers
1	Motor	Sino-US KDS Motor Factory Nanjing Special Motor Factory Wuxi XINDALI Motor Factory ABB-China SEW(Gearmotor)-German
2	Gear Box	SEW-German Jiangsu Tailong Reducer Factory Jiangsu Taixing Reducer Factory Shanghai TGS Transmission Equipment Co., Ltd. GUOTAI
3	Wire Rope	Italy Redaelli S.p.A. Nantong Wire Rope Factory
4	Electrical	CHINT Schneider SIMENS
5	Converter	Yaskawa Electric (China) Co., Ltd. Mitsubishi Schneider ABB-China
6	Controller	Lee's Hi-Tech Enterprise Co.,LTD. HBC-German Jay-Electronique
7.	Shaft	China: HRB/LYC/ZWZ SKF/FAG/NTN/IKO/KOYO/NACHI/TIMKEN
