| QE Model Double Girder Overhead Crane With Two Trolley | |||
| |||
| Santocrane -- professional crane manufacture and rich experienced exporter, we have export our products exceed 70 countries.We are located in Xinxiang--- the crane hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001occupational health and safety management system certification of enterprise, and CE certification. Our trademark is "Santocrane", and our company's operation principle is "Let The World Relaxed". All of our lifting devices and our innovation are built on the basis of the safety of users.
| |||
QE model double girder overhead crane with two trolley is widely used in industrial and mining industries, warehouses, workshops for goods loading, especially applicable to extra-wide, extra-long items. Features:
1. lifting capacity: 5+5t, 7.5+7.5t, 10+10t, 16+16/3,2t, 20+ 20/5t, 32+32/5t, 50+50/10t, 63+63/10t, 80+80/20t, 100+100/20t, 125+125/30t, 160+160/30t, 200+200/50t. 2. span : 10.5-31.5m 3. Working duty A3/A5/A6 4. ambient temperature is -25C to +40C 5. tooth reducer, imported wire-rope, trinity drive, alarm device to overloading/obliquely hanging, other protection equipment. 6. Control method: cabin/ pendent/ remote. 7. We accept the special and non-standard design. | |||
|

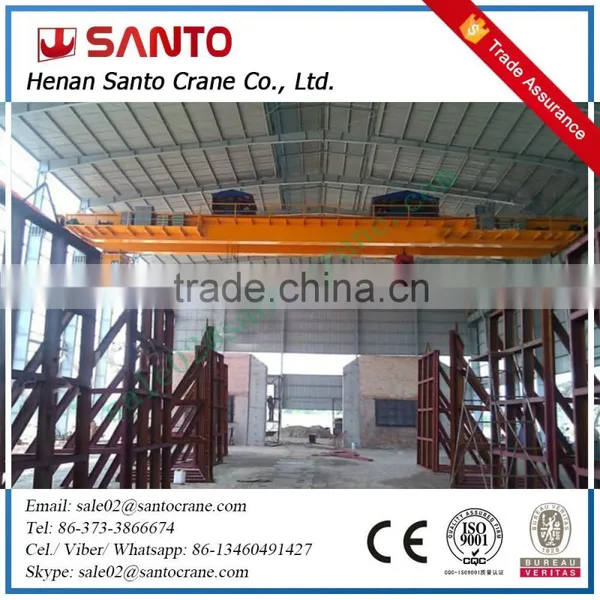

Pictures shows:
Features & advantages of QE model double overhead crane with two trolley:
1. Reasonable structure, light dead weight 2. Favorable performance, accurate and smooth lifting. 3. Safe and reliable traveling 4. Low noise, easy operation, 5. Convenient maintenance, high exchangeability for parts and components 6. Main girder: box-shaped girder . 7.Controlled by push button, remote or cabin. 8.Forbidden to use in easily combustible, explosive, corrosive and melting metal works. | |||
|
|||
| QE model double girder overhead crane with two trolley drawing: | |||
| |||
|
Common configuration of QE double girder overhead crane:
ntrol methods: Pendant control or remote control, Or Driver's cabin control. 2. drive units: motor+gear box+brake 3. safety device: overload limit, travel limit, overspeed limt, etc. 4. Shrouded DSL system for trolley power feeding 5. Electric control box: standard is CHINT electric, Schneider-electric is for choose . QE double girder overhead crane main parameters:
| |||
All the standards which is required for the crane is the Chinese standard. each Crane pass through CE; GOST; SGS Proved. Its trolleys are bigger and stronger than LH type as the trolley contains motor, reducer and brake separately. And this is the most important factor for working 24 hours per day. Main Girder The main girder contains girder box, platform, pantograph and trolley rail. It applies shot blasting and high quality painting, well chosen steel plate, advanced welding technology and equipment. End Beam End beam works as long traveling mechanism, and combines with beam, wheel, motor, reducer, brake and other parts. The steel plate adopt shot blasting , high quality painting and material. It is on bearing beams. Trolley Trolley consists of motor, reducer, brake, trolley frame, drum, hook, pulley etc. It includes lifting mechanism and cross traveling mechanism. The trolley is strictly designed according to the application and working environment. Electric parts and cabin We offer the top brand of electric parts, and two operational method, ground or operational room which has open model and can be installed on left or right side according to the practical situation.
| |||
|
|||
|
QD model double girder overhead crane 1.Capacity:5ton-550ton 2.Span:10.5-31.5m 3.Max. lifting height:26m 4.Working duty:A3-A7 5.Power supply: 380v-50hz,3Phase A.C. or as your request |
||
|
|
QZ model double girder overhead crane 1.Capacity:5ton-20ton 2.Span:10.5-31.5m 3.Max. lifting height:28m 4.Working duty:A6-A7 5.Power supply: 380v-50hz,3Phase A.C. or as your request |
||
|
QC model double girder overhead crane 1.Capacity:5ton-32/5ton 2.Span:10.5-31.5m 3.Max. lifting height:18m 4.Working duty:A6-A7 5.Power supply: 380v-50hz,3Phase A.C. or as your request |
||
|
|
||
|
YZ model double girder overhead crane 1.Capacity:100/32ton-320/80ton 2.Span:19.5-28.5m 3.Max. lifting height:32m 4.Working duty:A7 5.Power supply: 380v-50hz,3Phase A.C. or as your request |
||
| |||
|
Packing: 1. Electric parts are packed by high quality plywood crate to reduce distortion in conveying; 2. Main beams, end beams and electric hoist / winch are packed by plastic woven cloth. It can reduce abrasion when transport. Delivery: 1. If the size of whole crane are suitable for container ship, usually by container; 2. If the size is too big, usually by bulk ship or by container after truncation; 3. Transport ways are based on reducing cost for you and keep the crane in good condition. |
||
|
|||
| |||
|
Before order: One-to-one service,our engineer with more than 10 years experiences,give you the best crane solution! After-sales service: 1. Payment terms is flexible, 2. Design the crane according to your technical request, 3. Delivery on time, 4. Our engineer can arrive to the installation site to help fixing the crane for you, 5. Diversity products, 6. Warranty:12 months 7.Providing free quick-wear part. 8.Low charge for continue maintenance when warranty is expired. Installation service: We have professional installation teams and rich installation experience,if you need,we can offer you oversea installation service! | |||
Inquiry stips: In order to provide you most suitable produst ,please tell us these information | |||
| |||
