QB Explosion-proof Double Girder Overhead Crane Price

 A lot of heavy lifting work are handled in every factory, workshop,warehouse,plant and so on.In order to keep the

 manufacture’s safety and continuity,the finished products should be transferred without a break, so we need a

 reliable and safe lifting equipment.Santocarne, that is the professional expert in crane manufacturing and application

 field.No matter in any environment, santocrane has the ability to provide you the most suitable crane for you.

 We promise your operating will be efficiency and safe .Santocrane beyond the advanced technology to

 provide the intelligent solutions for transformation.It extends the life of the crane,improves the user’s productivity

 and efficiency.Santocrane adapts advanced security features,the best quality steel for every crane.Overload protect

 device and emergency stop system are also standard configuration.To make sure the operater can operate the crane

 expertly,we will help you a professional training be our engineers.

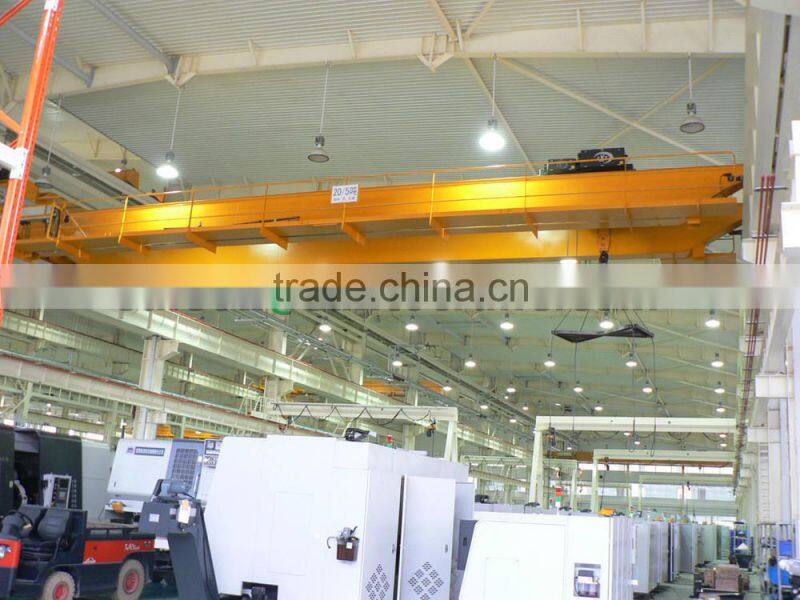

 Our produsts are widely used in workshop,plant,warehouse,storage,railway,steel factory and so on.

Double girder overhead crane is composed with beam frame, crane travel device, and the trolley with lifting and

moving device. There is pave the rail for the trolley moves on the main beam.

Assemble the moving table on the outside of the two main beam, one side is prepare for assemble and

maintenance the crane move device,another side is prepare for assemble of the trolley conductor device.

There are full field of view cab suspend under the main beam, there are joint control desk or single control

box packed within the cabin, assemble the sidelong ladder between the cabin and moving table.

The main beam joint with the two side end carriage which with the joint point in the middle.

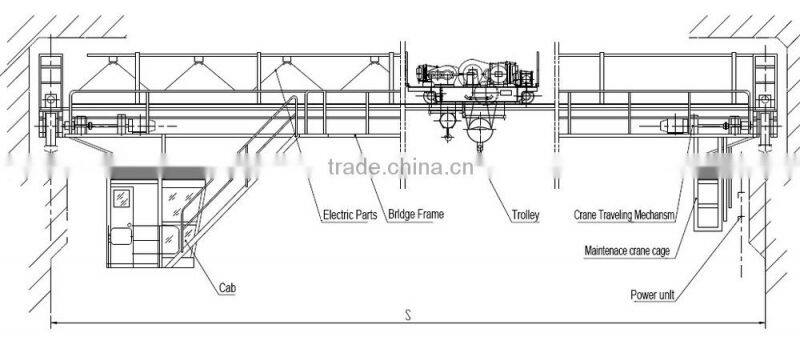

Double girder overhead crane drawing:

1.Reasonable structure

2.Favorable performance

3.Smooth starting and stopping

4.Safe and reliable traveling

5.Low noise, commodious cabin and good view

6.Convenient maintenance, excellent exchangeability for parts and components

7.Energy saving,reduce energy consumption

8.Using transducer for travelling or traversing crane to realize step speed or stepless speed change

9.Primer and finishing paint

10.Crane structure~ steel box type.

QD model double girder overhead crane

1.Capacity:5ton-550ton

2.Span:10.5-31.5m

3.Max. lifting height:26m

4.Working duty:A3-A7

5.Power supply: 380v-50hz,3Phase A.C.

or as your request

QZ model double girder overhead crane

1.Capacity:5ton-20ton

2.Span:10.5-31.5m

3.Max. lifting height:28m

4.Working duty:A5-A7

5.Power supply: 380v-50hz,3Phase A.C.

or as your request

QC model double girder overhead crane

1.Capacity:5ton-32/5ton

2.Span:10.5-31.5m

3.Max. lifting height:18m

4.Working duty:A6-A7

5.Power supply: 380v-50hz,3Phase A.C.

or as your request

QYZ model double girder overhead crane

1.Capacity:100/32ton-320/80ton

2.Span:19.5-28.5m

3.Max. lifting height:32m

4.Working duty:A7

5.Power supply: 380v-50hz,3Phase A.C.

or as your request

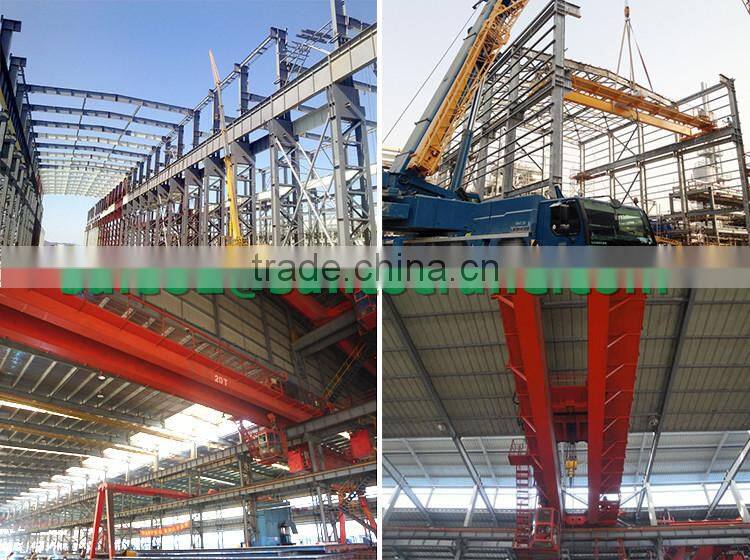

Double girder EOT crane installation

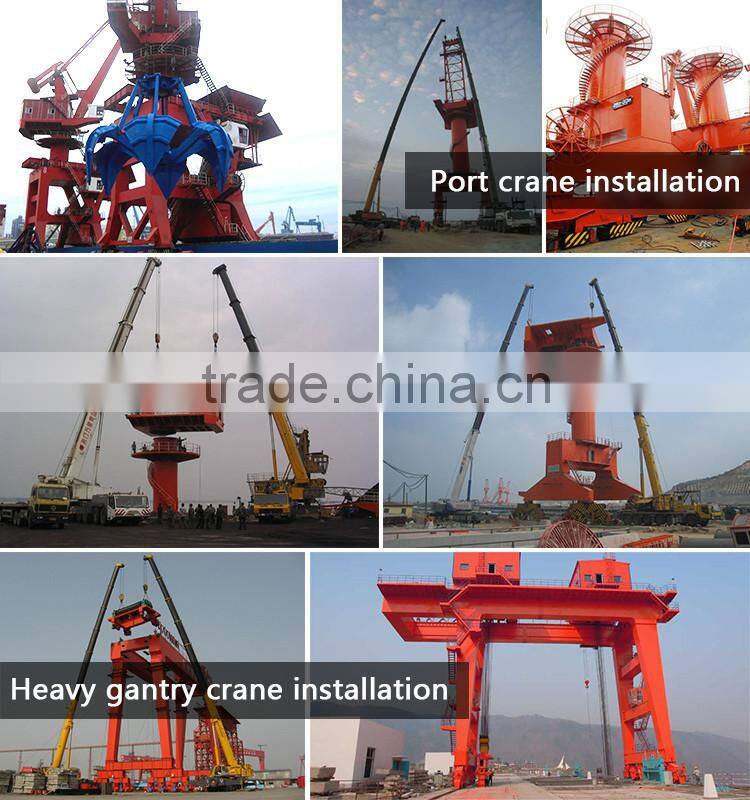

Related main products & installation

Packing:

1. Electric parts are packed by high quality plywood crate to reduce distortion in conveying;

2. Main beams, end beams and electric hoist / winch are packed by plastic woven cloth. It can reduce abrasion when transport.

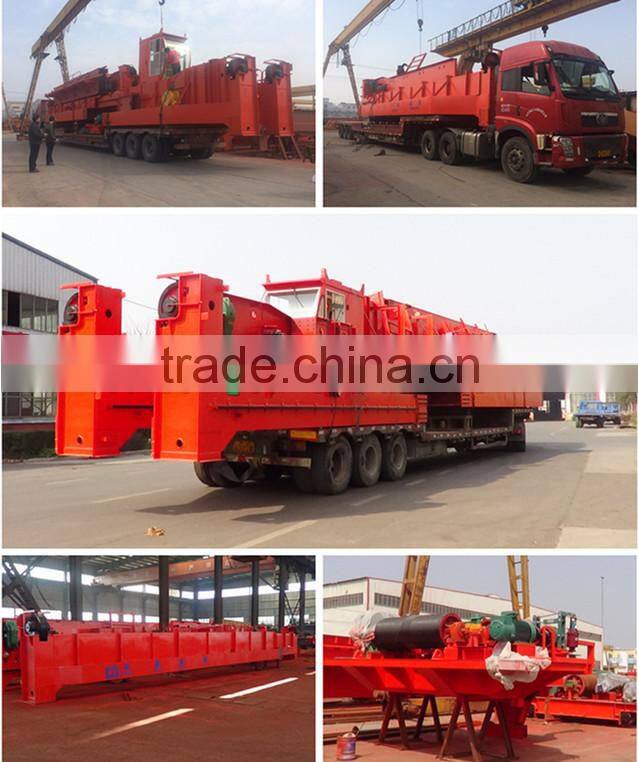

Delivery:

1. If the size of whole crane are suitable for container ship, usually by container;

2. If the size is too big, usually by bulk ship or by container after truncation;

3. Transport ways are based on reducing cost for you and keep the crane in good condition.

Before order:

One-to-one service,our engineer with more than 10 years experiences,give you the best crane solution!
After-sales service:
1)One year warranty for whole machines.
2)Providing free quick-wear part.
3)Low charge for continue maintenance when warranty is expired.
4)Exclusive engineer support at any time.
Installation service:
We have professional installation teams and rich installation experience,if you need,we can offer you

oversea installation service!

Inquiry stips: In order to provide you most suitable produst ,please tell us these information

1. Lifting capacity___ton

2. Lifting height___m(hook center to ground)

3. You often use ___ hours per day?

4. Do you need us to provide rails? If you need,Tell us that the rails you need ___ meters.

5. Power supply,380V-50Hz or ___?

6. Span length___m(rail center to rail center)

This is only an overview of our products. For more details, please never hesitate to tell us,

we will be pleased to be of further assistance.
