China Mining Winch Manufacturer
US$ 1,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Santo
Model Number:
JK, JM, JT, JKL
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Brand Name
Santo
Model Number
JK, JM, JT, JKL
Power Source
Electric
Application
Other, Cranes,lifting, pulling, hoisting
Capacity
5~650KN
China Mining Winch Manufacturer
|
JM SERIES SLOW SPEED ELECTRIC WINCH FOR CRANE LIFTING, BRIDGE OR ROAD BUILDING AND INSTALLATION INDUSTRY | |
 |
JM Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete constructure. |
|
Features:
| |
| Long Rope Horizontal Free Operator Training Lifting Winch Electric | |
| Items | Rated load, |
Rated speed, m/min |
Rope capacity, m |
Rope diameter, mm |
Motor |
Power | Size, mm |
Weight, kg |
| JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| JM1.6 | 16 | 16 | 150 | 12.5 | Y132M2-6 | 5.5 | 945*996*570 | 500 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M2-6 | 7.5 | 1430*1160*910 | 1100 |
| JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M2-6 | 7.5 | 1082*1014*610 | 536 |
| JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1560 |
| JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620*1260*945 | 1800 |
| JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1800 |
| JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
| JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
| JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1230*805 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
| JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |

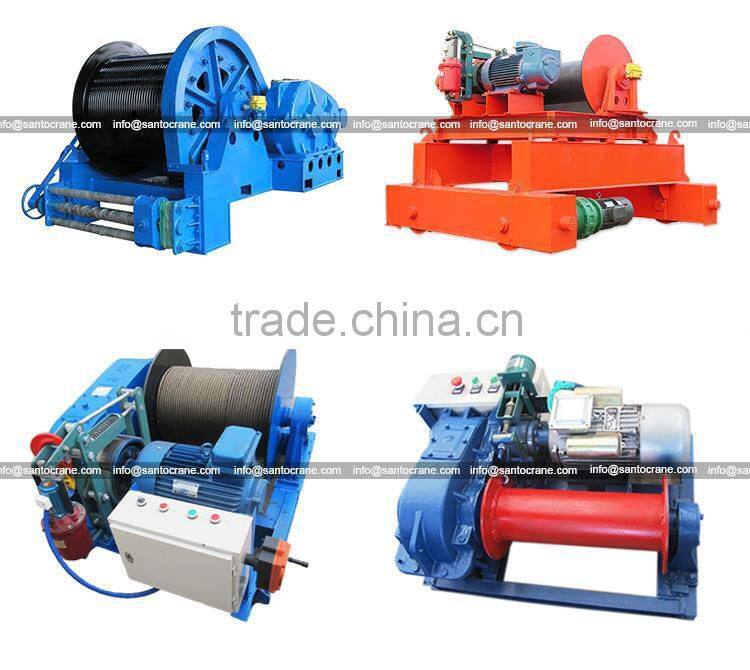

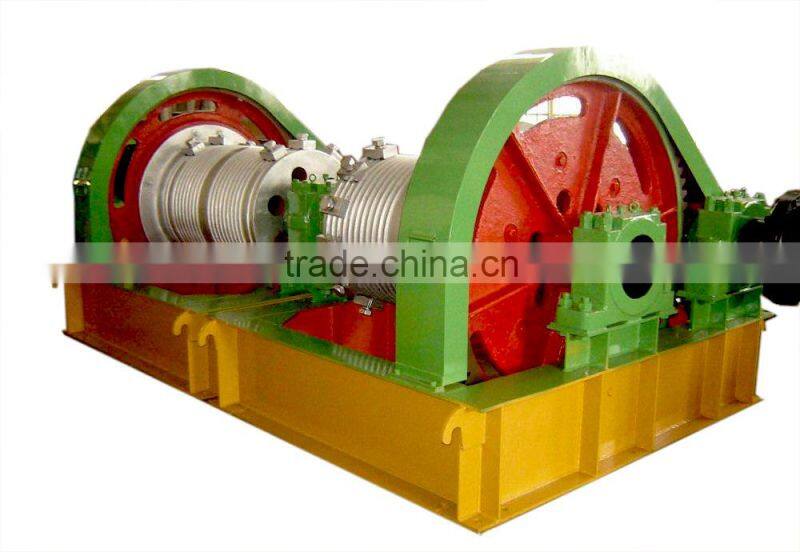

Products showing and cases
|
JM SERIES HEAVY DUTY SLOW SPEED ELECTRIC WINCH FOR CRANE LIFTING, BRIDGE OR ROAD BUILDING AND INSTALLATION INDUSTRY | |
|
JM Heavy duty Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete constructure, Port and Mine application. |
|
Features:
| |
| Long Rope Horizontal Free Operator Training Lifting Winch Electric | |
| Items | Rated load, KN |
Rated speed, m/min |
Rope capacity, m |
Rope diameter, mm |
Motor |
Power | Size, mm |
Weight, kg |
| JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 |
| JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM13.5 | 135 | 0~5 | 290 | 28 | YZR225S-8 | 22 | 2990*2366*1650 | 6500 |
| JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | YZR280S-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |

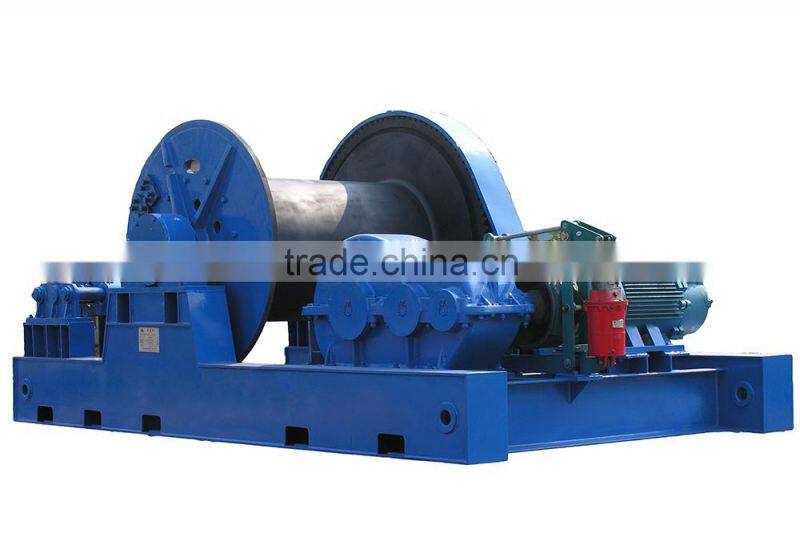

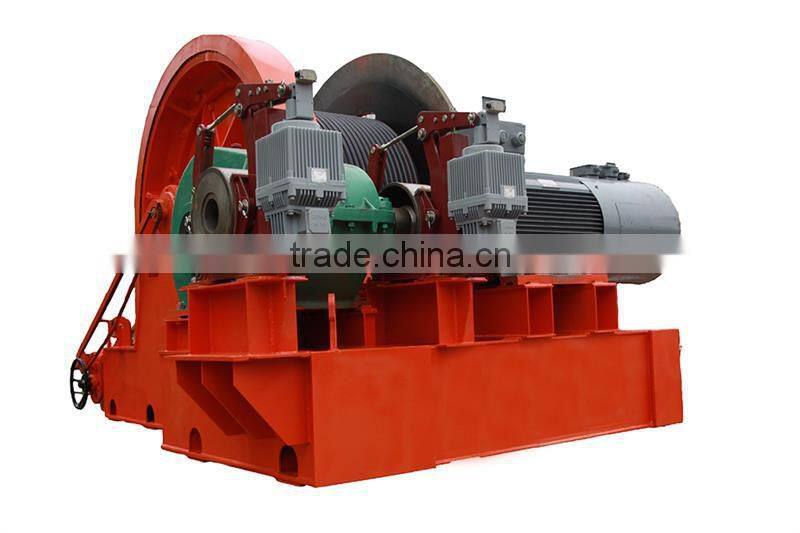

Products showing and cases
|
JK SERIES FAST SPEED ELECTRIC WINCH FOR DRILLING, CRANE LIFTING AND INSTALLATION INDUSTRY | |
|
JK series fast speed electric winch is widely used for load material lifting, load transfering and as a lift machanism for crane. Suitable gor construction and small equipments installation of construction mine are lifting. |
|
Features:
| |
| Long Rope Horizontal Free Operator Training Lifting Winch Electric | |
| Items | Rated load, KN |
Rated speed, m/min |
Rope capacity, m |
Rope diameter, mm |
Motor |
Power | Size, mm |
Weight, kg |
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JM10B | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JM12.5 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JM13.5 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JM16 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JM20 | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JM25 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JM32 | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JM50 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JM65 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |

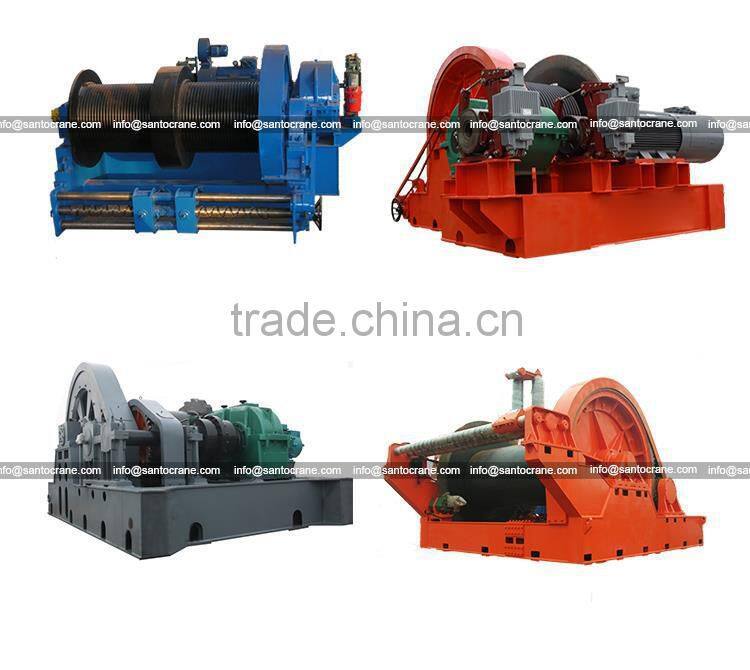

Products showing and cases
Products Detail Showing

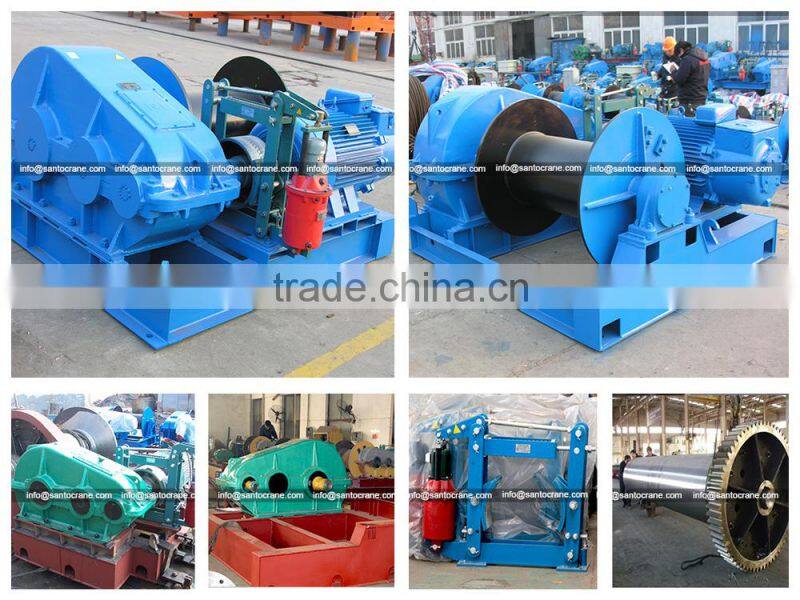

Factory View
