Home > Products > Electric Winch > Ac Power Winch

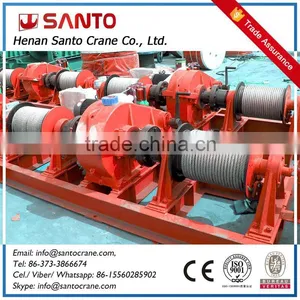

Ac Power Winch
- 300 Set / Sets per Month
- Tianjin Port China
- T/T Credit Card
- 4'' Double L Track Sliding Winch, WLL 5,500lbs
- High Quality Heavy Duty Winch Bar for Flatbed Trailer
- Introduction to Marine Electric Hoisting Winches
- Marine pneumatic winch(Good performance, high pulling force)
- Auto parts Nylon winch for Jeep wrangler JK 2007+ 12500lbs bumper winch for Jeep accessories
- Electric Lifting Winch Marine Hydraulic Winches on Dredging Machine Electric Winch for Sale
Product Details
Place of Origin: | China | Brand Name: | Santo | Model Number: | JK, JM, JT, JKL |
Power Source: | Electric | Application: | Other, Cranes,lifting, pulling, hoisting | Capacity: | 5~650KN |
Product Description
JM SERIES SLOW SPEED ELECTRIC WINCH FOR CRANE LIFTING, BRIDGE OR ROAD BUILDING AND INSTALLATION INDUSTRY | |
JM Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete constructure. | |
Features:
| |
Long Rope Horizontal Free Operator Training Lifting Winch Electric |
Items | Rated load, | Rated speed, m/min | Rope capacity, m | Rope diameter, mm | Motor | Power | Size, mm | Weight, kg |
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
JM1.6 | 16 | 16 | 150 | 12.5 | Y132M2-6 | 5.5 | 945*996*570 | 500 |
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M2-6 | 7.5 | 1430*1160*910 | 1100 |
JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M2-6 | 7.5 | 1082*1014*610 | 536 |
JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1560 |
JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620*1260*945 | 1800 |
JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1800 |
JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1230*805 | 1800 |
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |
Products showing and cases
JM SERIES HEAVY DUTY SLOW SPEED ELECTRIC WINCH FOR CRANE LIFTING, BRIDGE OR ROAD BUILDING AND INSTALLATION INDUSTRY | |
JM Heavy duty Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete constructure, Port and Mine application. | |
Features:
| |
Long Rope Horizontal Free Operator Training Lifting Winch Electric |
Items | Rated load, KN | Rated speed, m/min | Rope capacity, m | Rope diameter, mm | Motor | Power | Size, mm | Weight, kg |
JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 |
JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
JM13.5 | 135 | 0~5 | 290 | 28 | YZR225S-8 | 22 | 2990*2366*1650 | 6500 |
JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 |
JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950*2560*1950 | 9900 |
JM25 | 250 | 9 | 700 | 48 | YZR280S-8 | 55 | 4350*2800*2030 | 13500 |
JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
Products showing and cases
JK SERIES FAST SPEED ELECTRIC WINCH FOR DRILLING, CRANE LIFTING AND INSTALLATION INDUSTRY | |
JK series fast speed electric winch is widely used for load material lifting, load transfering and as a lift machanism for crane. Suitable gor construction and small equipments installation of construction mine are lifting. | |
Features:
| |
Long Rope Horizontal Free Operator Training Lifting Winch Electric |
Items | Rated load, KN | Rated speed, m/min | Rope capacity, m | Rope diameter, mm | Motor | Power | Size, mm | Weight, kg |
JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
JM10B | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
JM12.5 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
JM13.5 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
JM16 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
JM20 | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
JM25 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
JM32 | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
JM50 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
JM65 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
Products showing and cases
Products Detail Showing
Factory View
Contact Us
- Henan Santo Crane Co., Ltd.
- Contact nameVicky Peng
- Phone0086-373-3866674
- AddressNo. 170, Jinsui Avenue, Hongqi District
